LC-42D43U
2 – 3

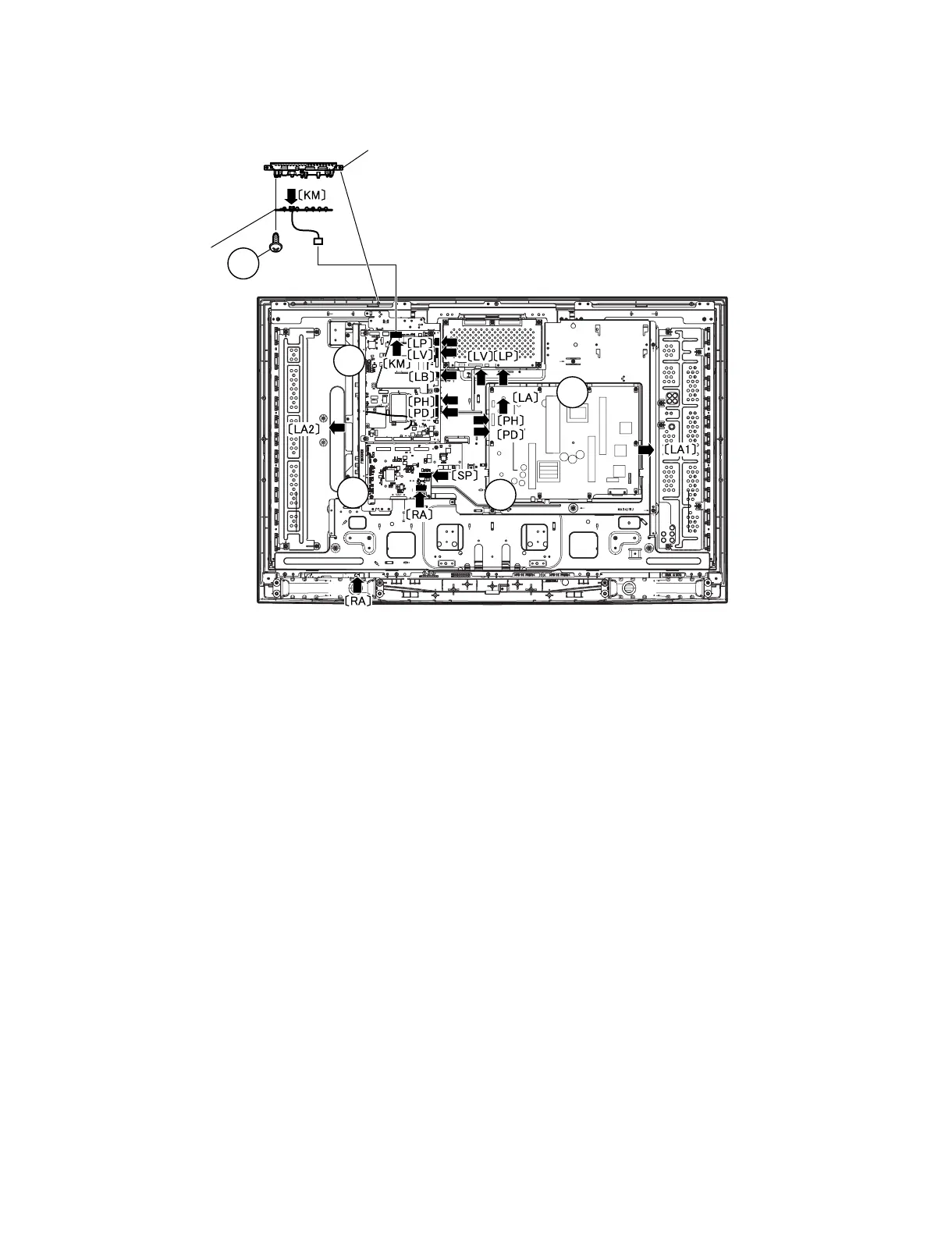

10.Disconnect all the connectors from all the PWBs.
11.Remove the Top Cover Ass'y. Remove the 1 lock screw from the Top Cover Ass'y and detach the KEY Unit.
KEY Unit
Top Cover Ass'y
11
10
10
10
10
