Sharp LC-42D43U User Manual

LC-42D43U
2 – 4

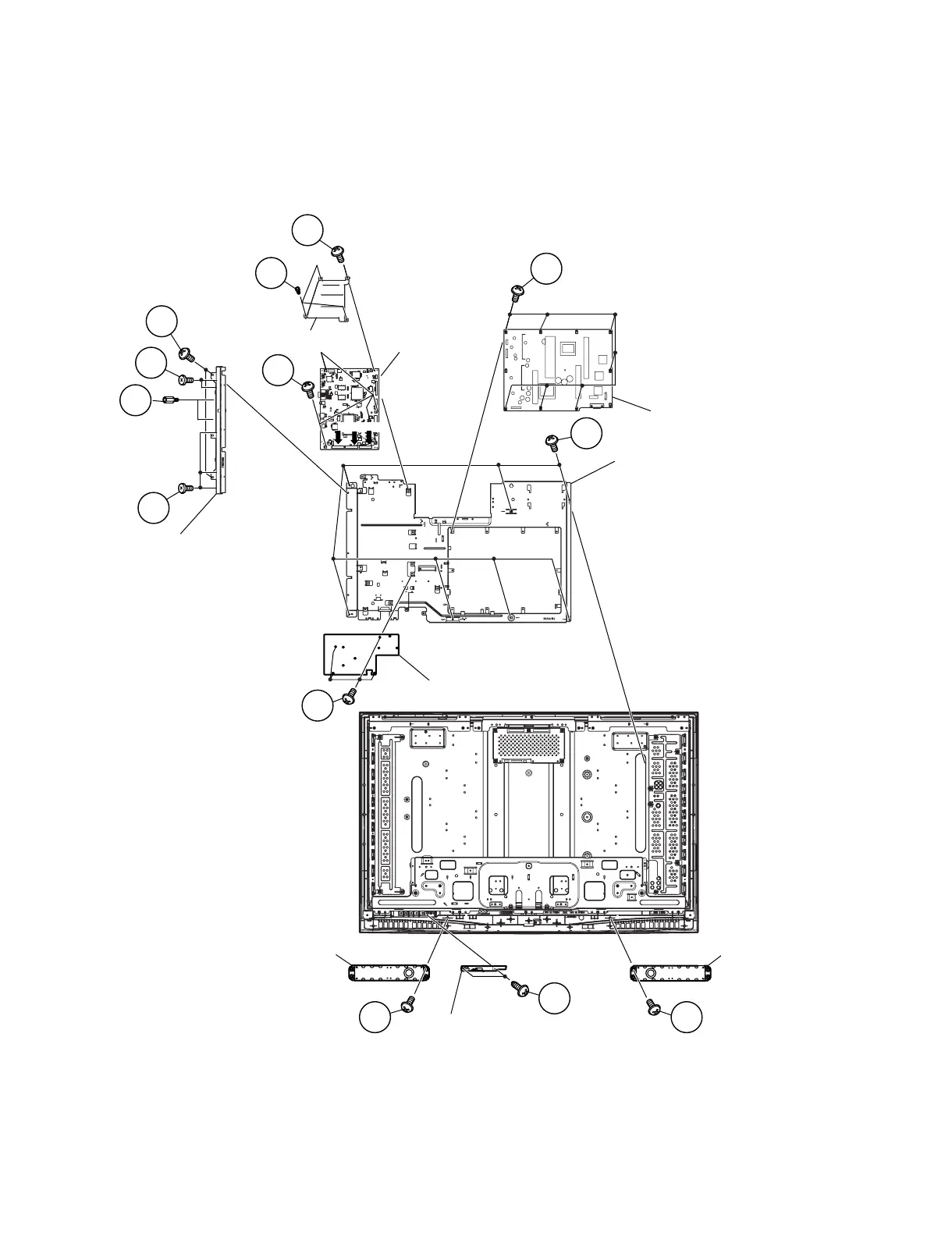

12.Remove the 7 lock screws and detach the Tray Chassis.
13.Remove the 2 lock screws, 3 lock screws, 2 hexagonal shaft for D-sub and 2 lock screws. Detach the Terminal Angle.
14.Remove the 7 lock screws and detach the POWER Unit.
15.Remove the 4 lock screws and detach the TERMINAL Unit.
16.Remove the 5 lock screws, 3 rivet and detach the Heat Sink and MAIN PWB.
17.Remove the 2 lock screws and detach the Speaker (L)(R).
18.Detach the R/C, LED Unit.
Tray Chassis
POWER Unit
TERMINAL Unit
Terminal Angle
12
14
13
13
13
13
15
17
17
18
Speaker (R)
Speaker (L)
R/C, LED Unit
MAIN PWB
Heat Sink
16
16
16
MA FC SA
