12.Remove the 7 lock screws and detach the Tray Chassis.
13.Remove the 2 lock screws, 3 lock screws, 2 lock screws and detach the Terminal Angle.
14.Remove the 5 lock screws and detach the POWER Unit.
15.Remove the 4 lock screws and detach the TERMINAL Unit.
16.Remove the 3 lock screws, 3 lock screws and detach the MAIN PWB Radiator and MAIN Unit.
17.Remove the 2 lock screws and detach the Speaker (L)(R).
18.Remove the 2 lock screws and detach the R/C, LED Unit.

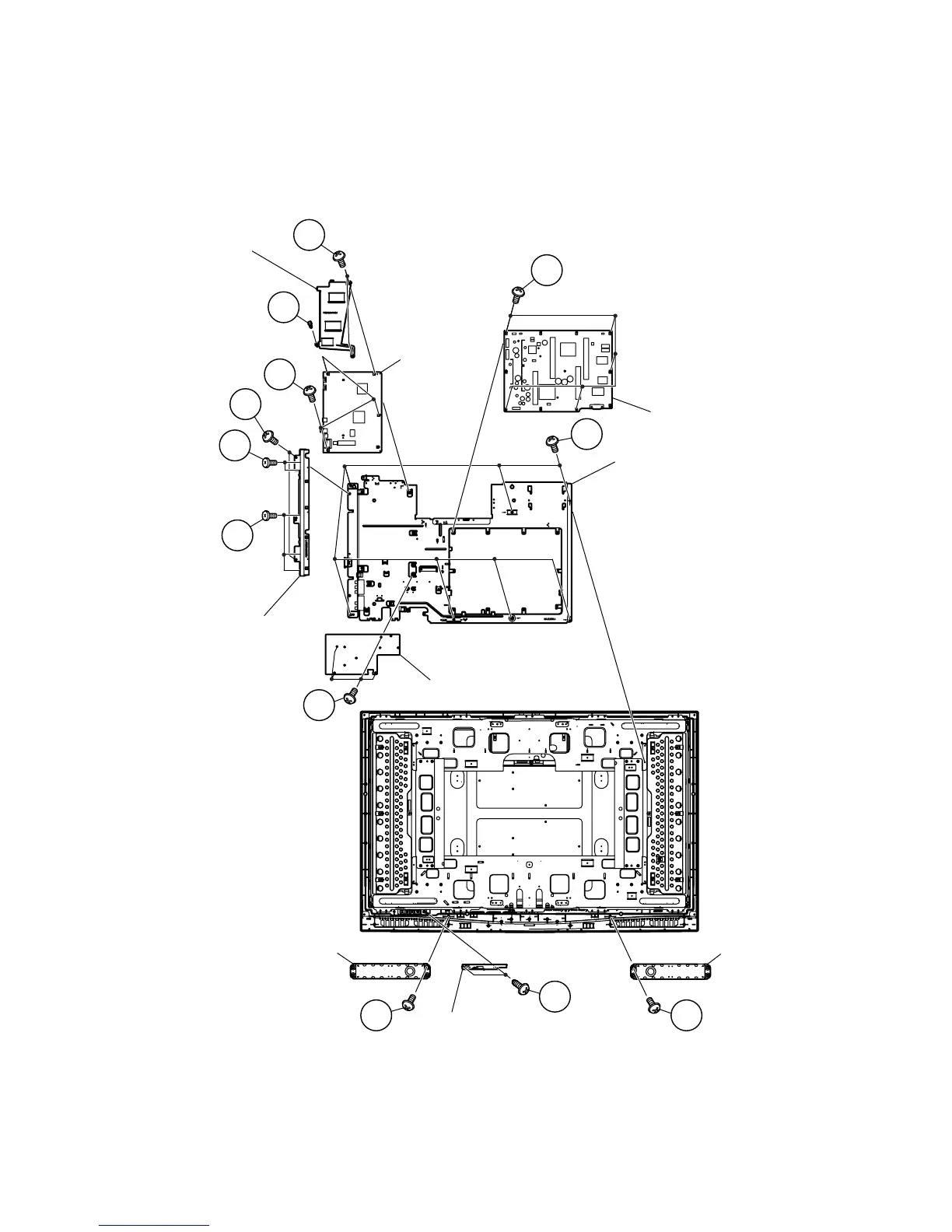

Tray Chassis
POWER Unit
TERMINAL Unit
MAIN Unit
MAIN PWB
Radiator
Terminal Angle
12
14
13
16
16
16
13
13
15
17
17
18
Speaker (R)
Speaker (L)
R/C, LED Unit
