LC-42/46/52D85X
4 – 8

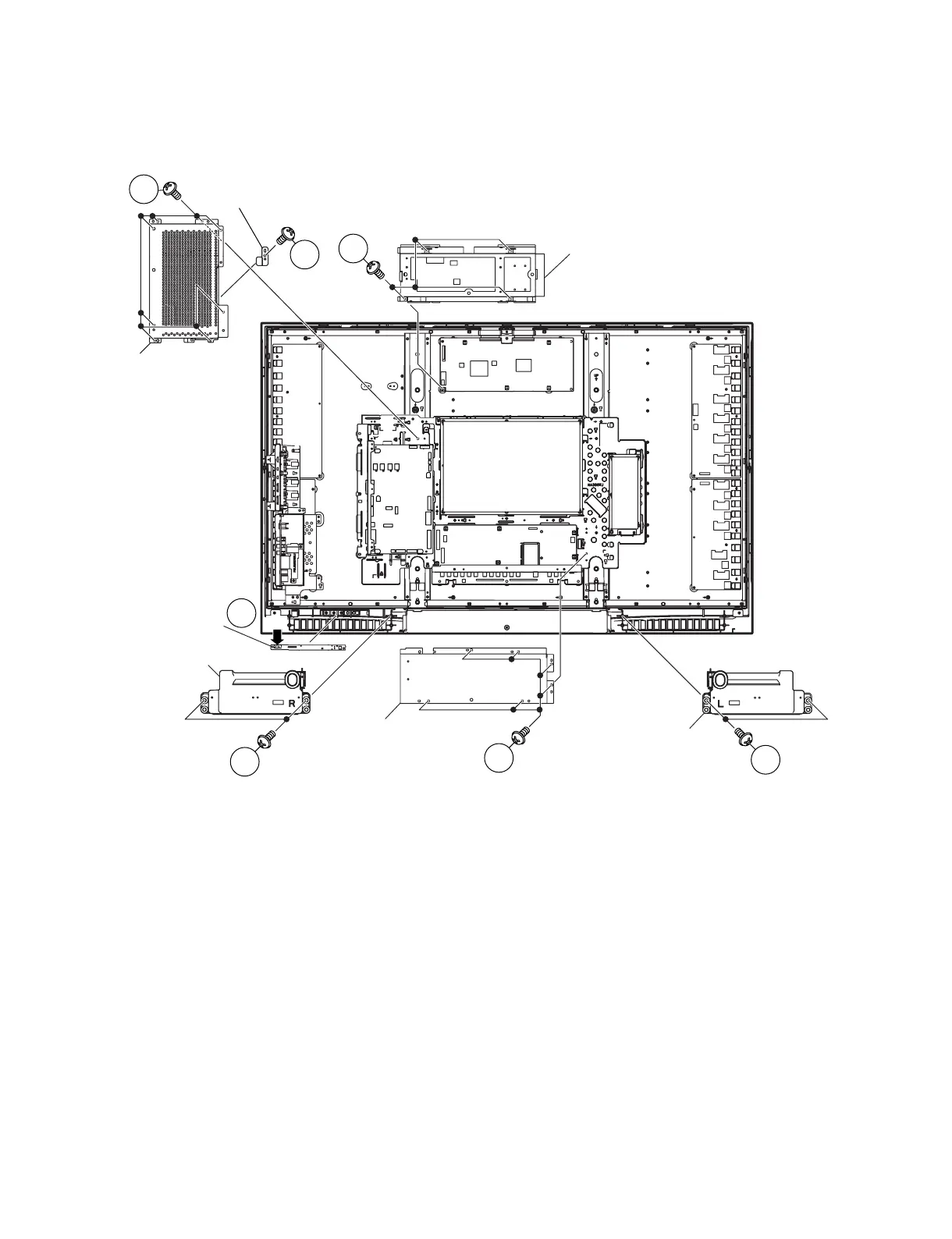

3. Remove the 4 lock screws [5] and detach the Speaker-LR.
4. Disconnect RA Wire and detach the R/C, LED Unit [6].
5. Remove the 4 lock screws [7] and detach the Control Shield.
6. Remove the 9 lock screws [8] and detach the Ground Angle, Main Shield.
7. Remove the 6 lock screws [9] and detach the AV Shield.
5
6
5
Speaker-L
Speaker-R
R/C, LED Unit
RA
7
Control Shield
9
AV Shield
8
8
Main Shield
Ground Angle
