Sharp LC-42XL2E User Manual

LC-42XL2E/S/RU, LC-46XL2E/S/RU, LC-46X20E/S/RU, LC-52XL2E/S/RU, LC-52X20E/S/RU
2 – 33

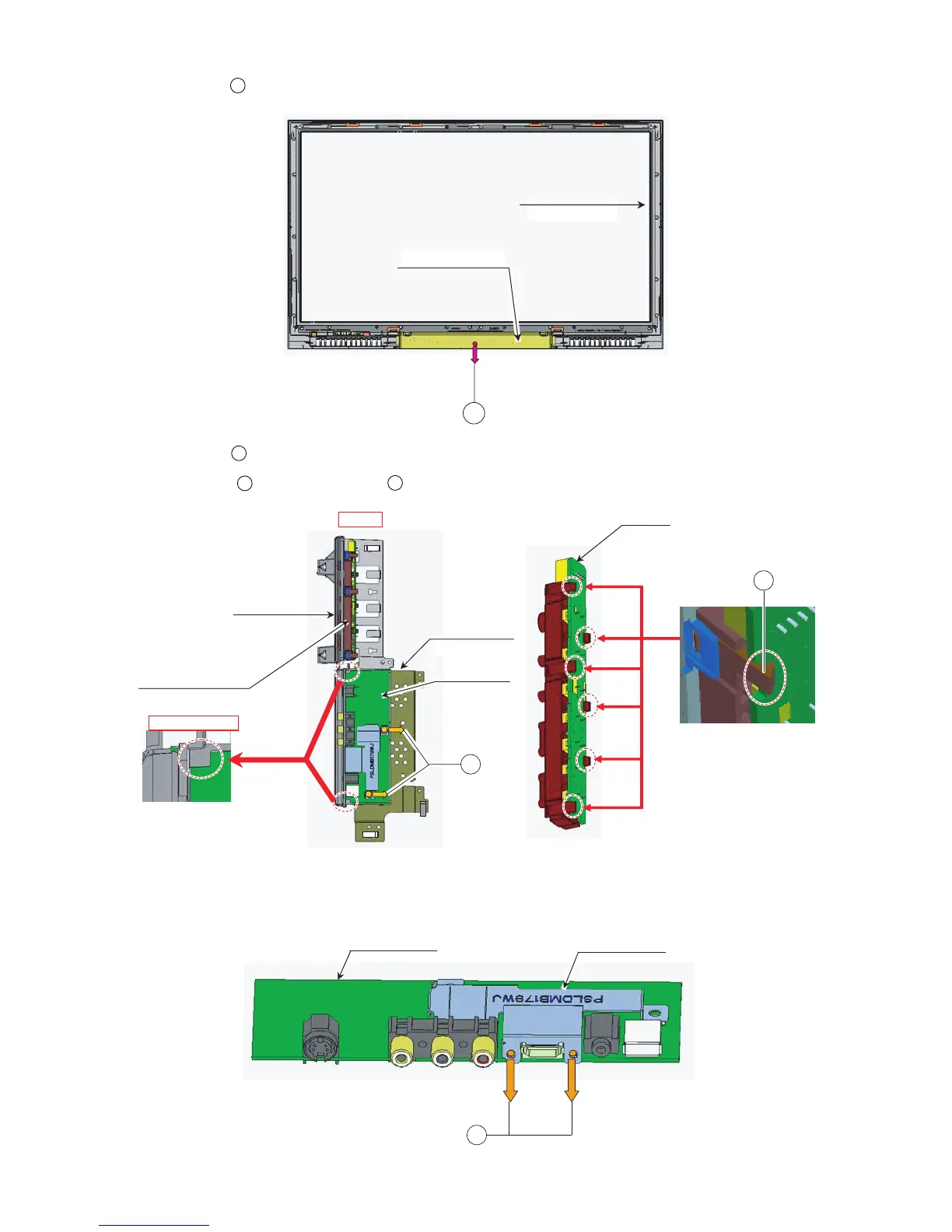

11.Remove the 1 lock screw . and detach the Bottom Cover.
12.Remove the 6 lock hooks . and detach the KEY Unit.
13.Remove the 2 lock screws , and the 2 lock screws . Detach the MINI AV Unit.
13
FRONT CABINET
BOTTOM COVER
13
14
15
16
M-AV KEY COV
MINI AV ANG
Top View
#Set PWB under LIB
MINI AV PWB
KEY Button with PWB
15
16
KEY PWB
14
MINI AV PWB
MINI-AV SHIELD
