LC-42XL2E/S/RU, LC-46XL2E/S/RU, LC-46X20E/S/RU, LC-52XL2E/S/RU, LC-52X20E/S/RU
2 – 34

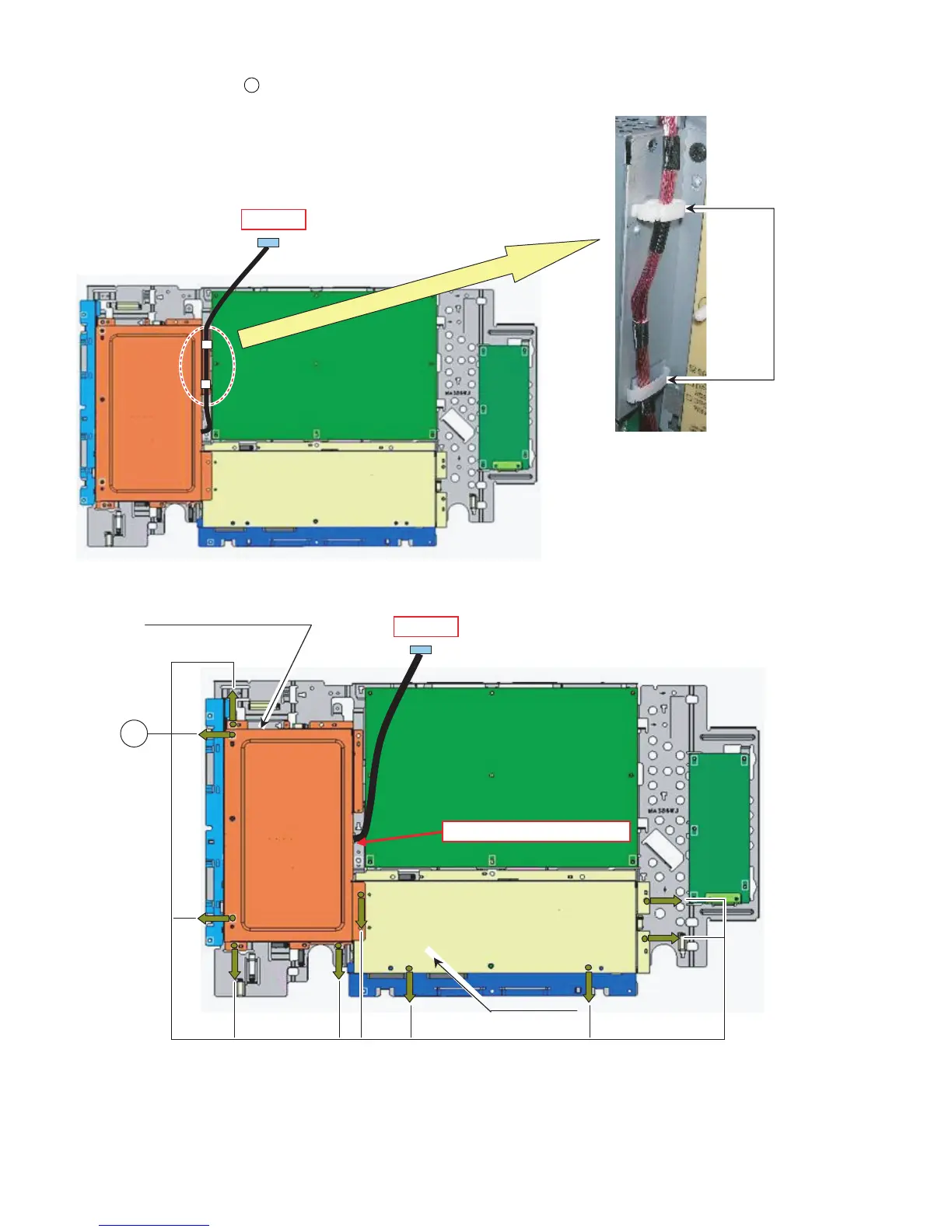

14.Remove all the connectors from PWBs.
15.Remove the 10 lock screws . and detach the Main Shield and AV Shield.
17
AV SHIELD
MAIN SHIELD
Wire "LW"
Pull out Wire "LW" form Opening
Wire "LW" to WH
Wire "LW"
17
