LC-42XL2E/S/RU, LC-46XL2E/S/RU, LC-46X20E/S/RU, LC-52XL2E/S/RU, LC-52X20E/S/RU
2 – 35

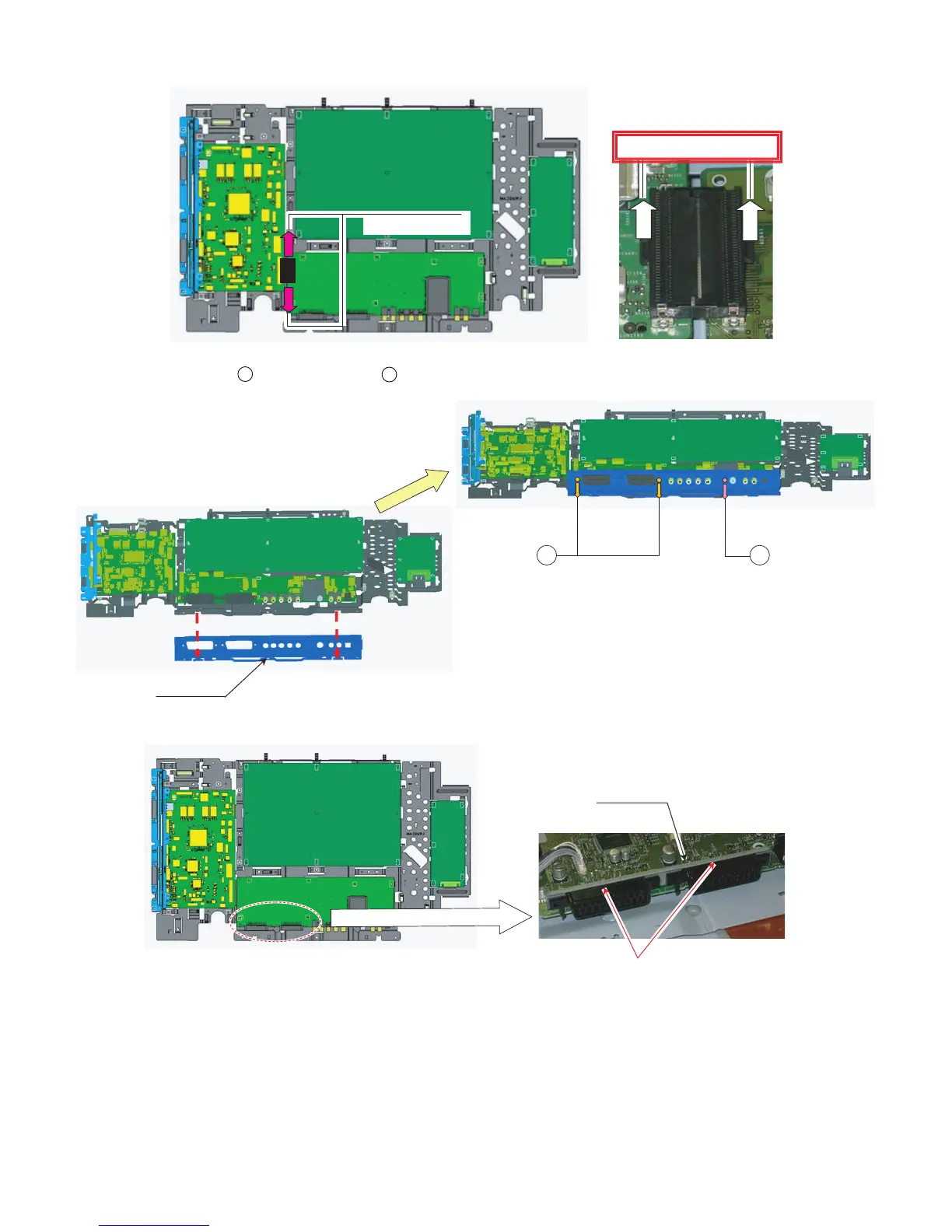

16.Remove all the connectors from PWBs.
17.Remove the 2 lock screws , and the 1 lock screw . Detach the Terminal Angle Bottom.
B to B connection
Pull same time
18
19
TML ANG BTM
18 19
SCART ANGLE
#SCART Angle Stepping on terminal
