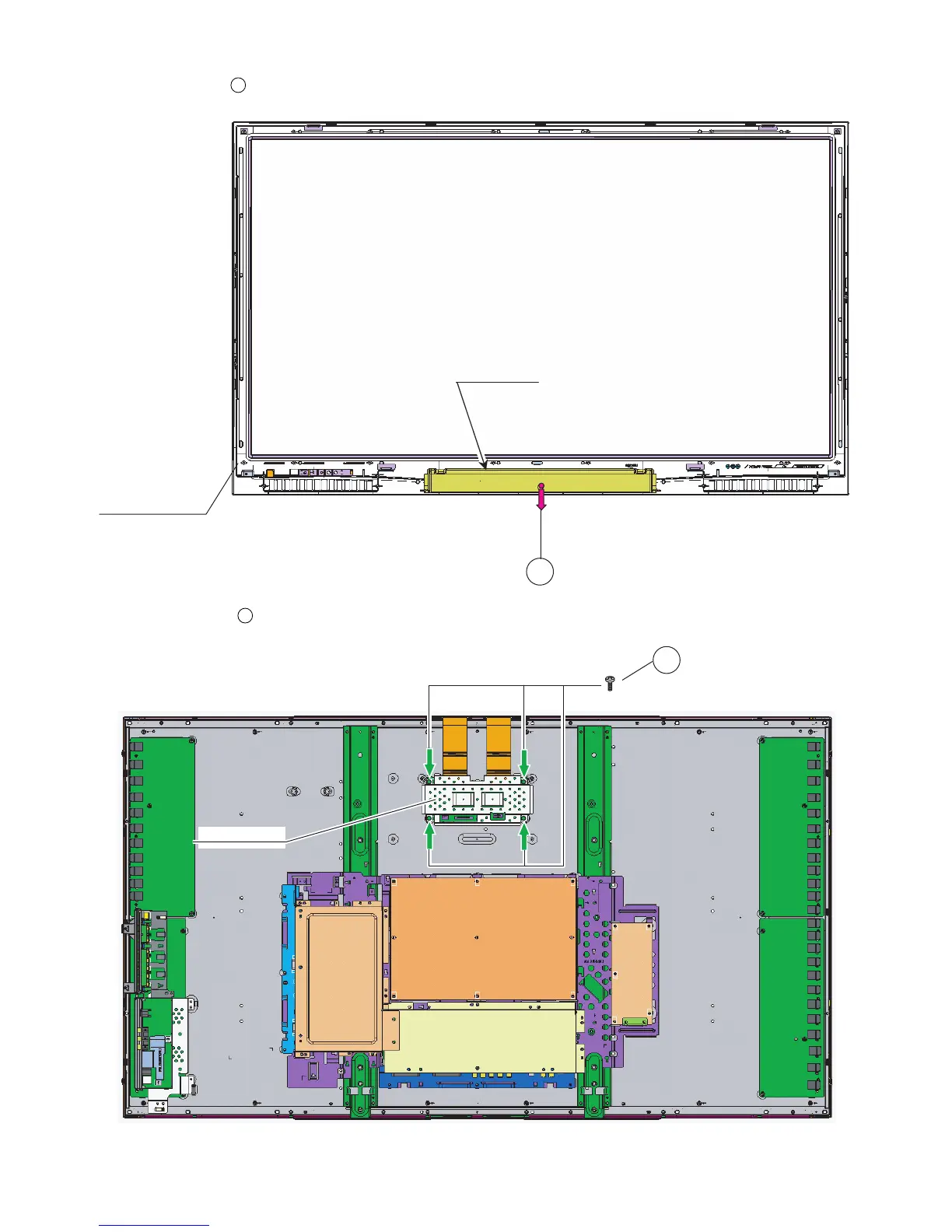

7. Remove the 1 lock screw . and detach the Bottom Cover.
8. Remove the 4 lock screws . and detach the CTL SHIELD.
8
FRONT CABINET
Bottom Cover
8
9
9
CTL Shield
