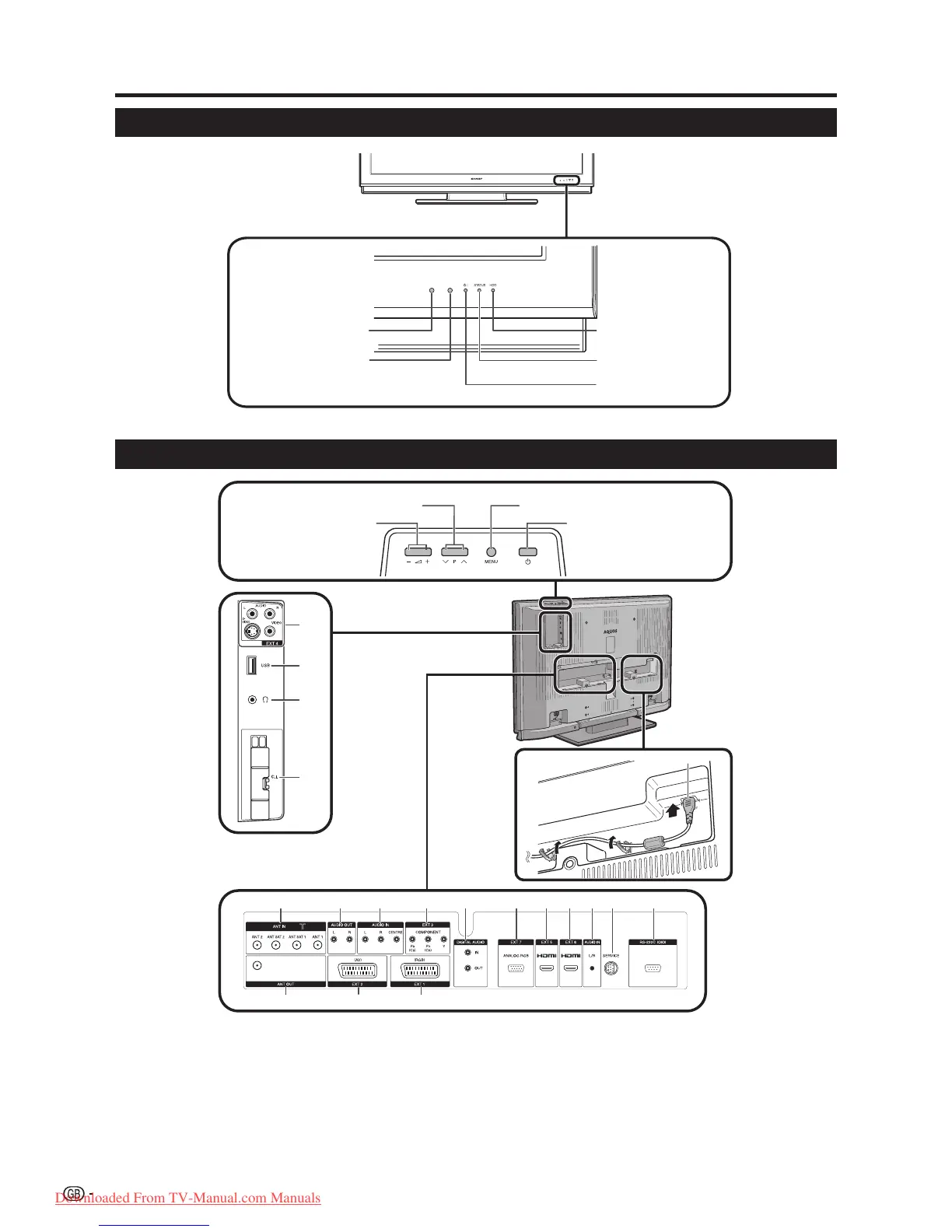

Sharp LC-46HD1E - TV (Front View); TV (Rear View)

Preparation
TV (Front view)
TV (Rear view)
5
1
2
3
4
6 7
16 17 18
8 9 10 11 12 13 15
19
14
1 EXT 4 terminals
* Do not connect S-VIDEO and VIDEO at
the same time.
2 USB terminal
3 Headphones
4 COMMON INTERFACE slot (g2)
** Remove the cover when inserting the CI
Module.
5 ANT IN terminals
6 AUDIO OUT terminals
7 AUDIO IN terminals
8 EXT 3 (COMPONENT) terminals
9 DIGITAL AUDIO terminals
10 EXT 7 (ANALOG RGB) terminal
11 EXT 5 (HDMI) terminal
12 EXT 6 (HDMI) terminal
13 AUDIO IN (L/R) jack
14 SERVICE socket
15 RS-232C terminal
See page 12 for indictor status.
16 ANT OUT terminal
17 EXT 2 (AV) terminal
18 EXT 1 (RGB) terminal
19 AC INPUT terminal
6
Remote control censor
OPC censor
HDD indicator
STATUS indicator
B (Standby/On)
indicator
MENU button
a (Power) button
i (k/l)
Volume buttons
P (r/s)
Programme [channel] buttons
**
*
LC-52HD1E-gb.indd 6LC-52HD1E-gb.indd 6 2008/03/24 15:00:392008/03/24 15:00:39
