LC-46D82U/LC-52D82U
2 – 8

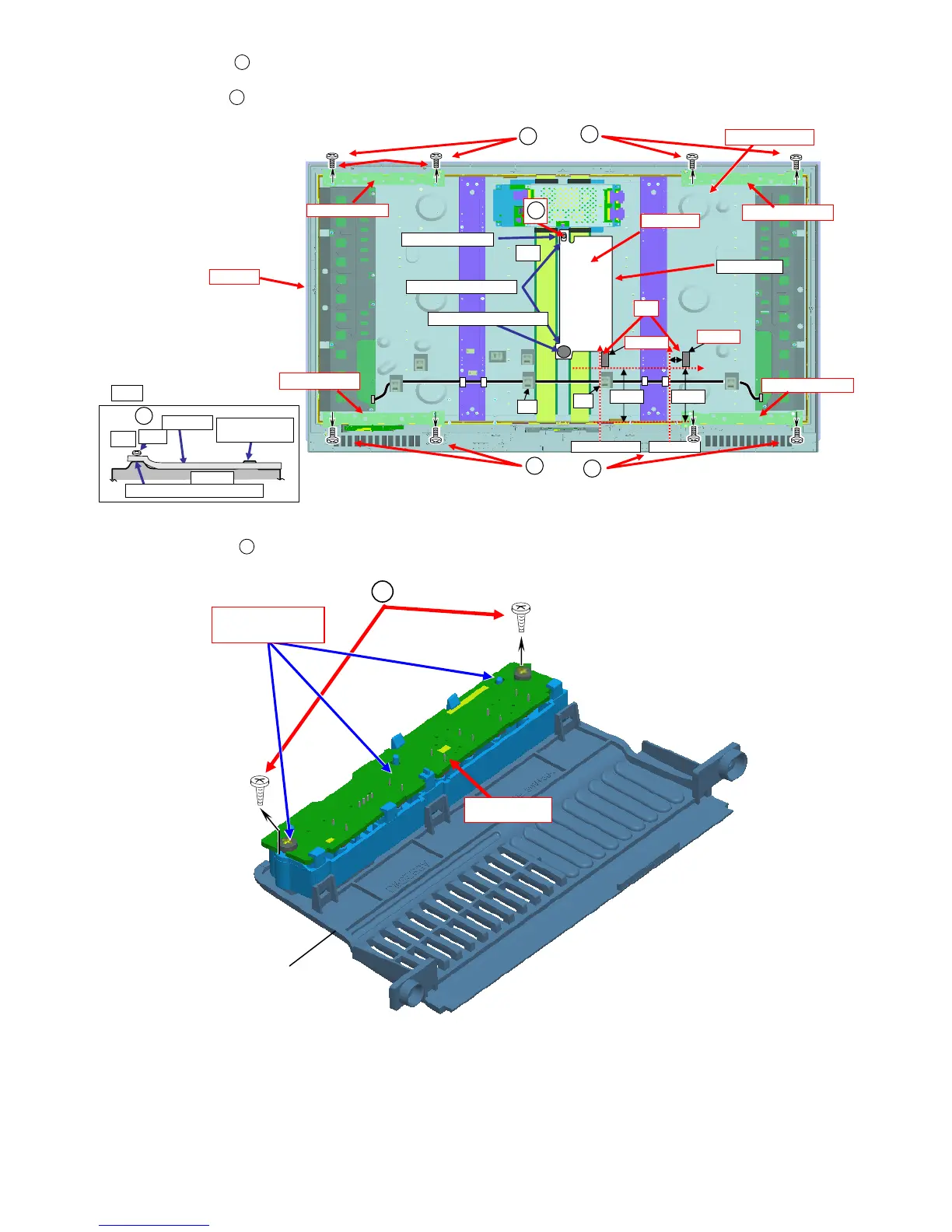

17.Remove the 8 lock screws , and detach the Chassis Fix Angles.
18.Remove the 1 lock screw , and detach the Barrier sheet.
19.Remove the 2 lock screws , and detach the Key Unit.
14
15
㪧㪸㫅㪼㫃㪄㫊㫀㪻㪼
Passes through the
protruding portion.
㪝㫀㪾㪄㪈
Barrier seet
Fitted the hole in protruding portion.
㪘㹢
Screw
PANEL_MODULE
KS CAB-A
118mm
Fitted on the left of WH
Barrier sheet
Fitted to the panel tightness.
Tape is torn off..
Fitted to the screw hole
Fitted to the protruding portion.
Open side
WH
WH
WH
Line of the angle
118mm
CH FIX ANG U-RL
CH FIX ANG U-RL
CH FIX ANG U-RL
CH FIX ANG U-RL
Open side
14
14
14
14
15
15
㪘㹢
16
KEY UNIT
The guidepin 㵘
of positioning x3
KS TOP COV
16
