Sharp LC-52LE640U

LC-52/60/70LE640U,C6400U (1st Edition)
4 – 16

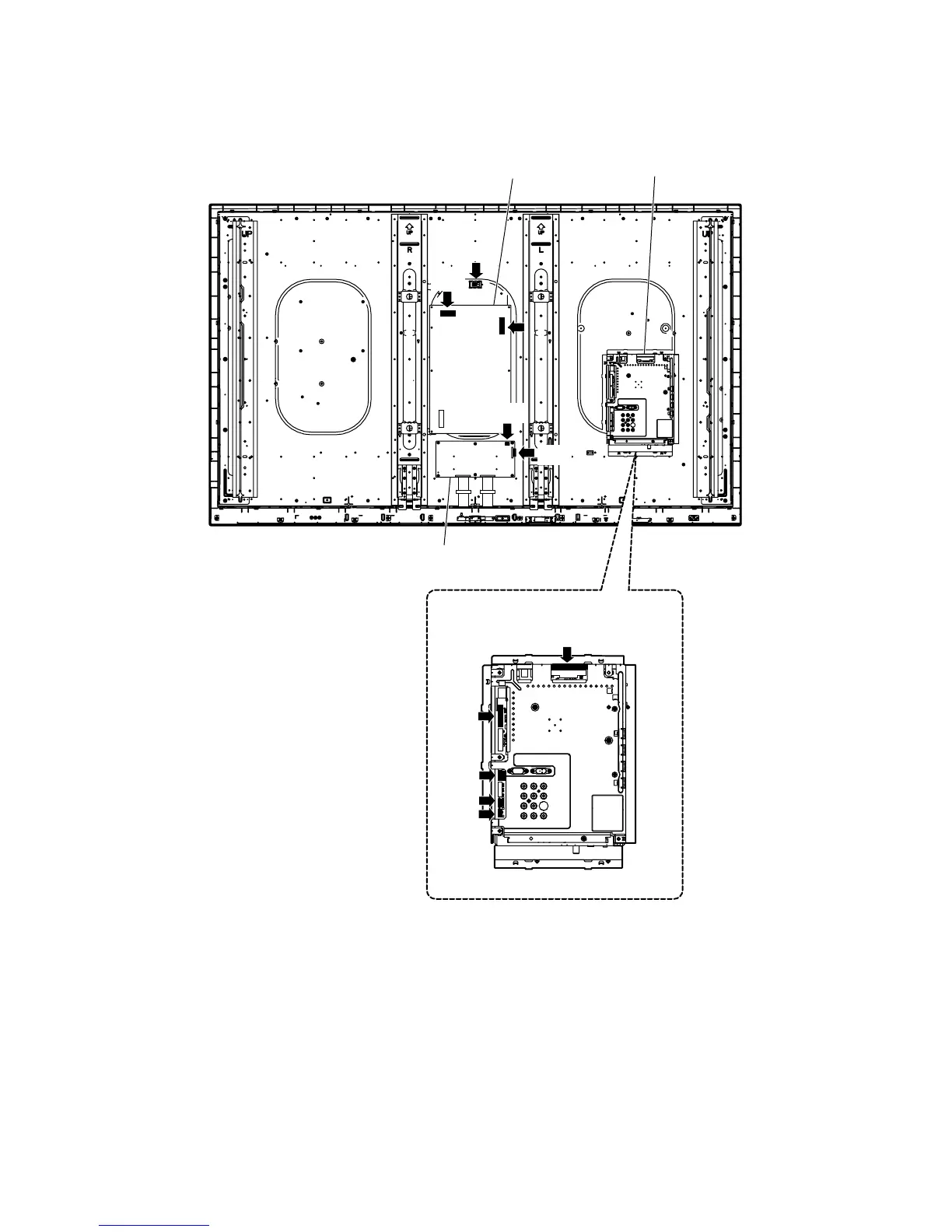

3. Removing of Connectors
1. Disconnect the following connectors from the MAIN Unit. (PD, LV, PL, Cl, UB)
2. Disconnect the following connectors from the POWER/DRIVE Unit. (PD, LA)
3. Disconnect the following connectors from the LCD CONTROL Unit. (LV, PL)
