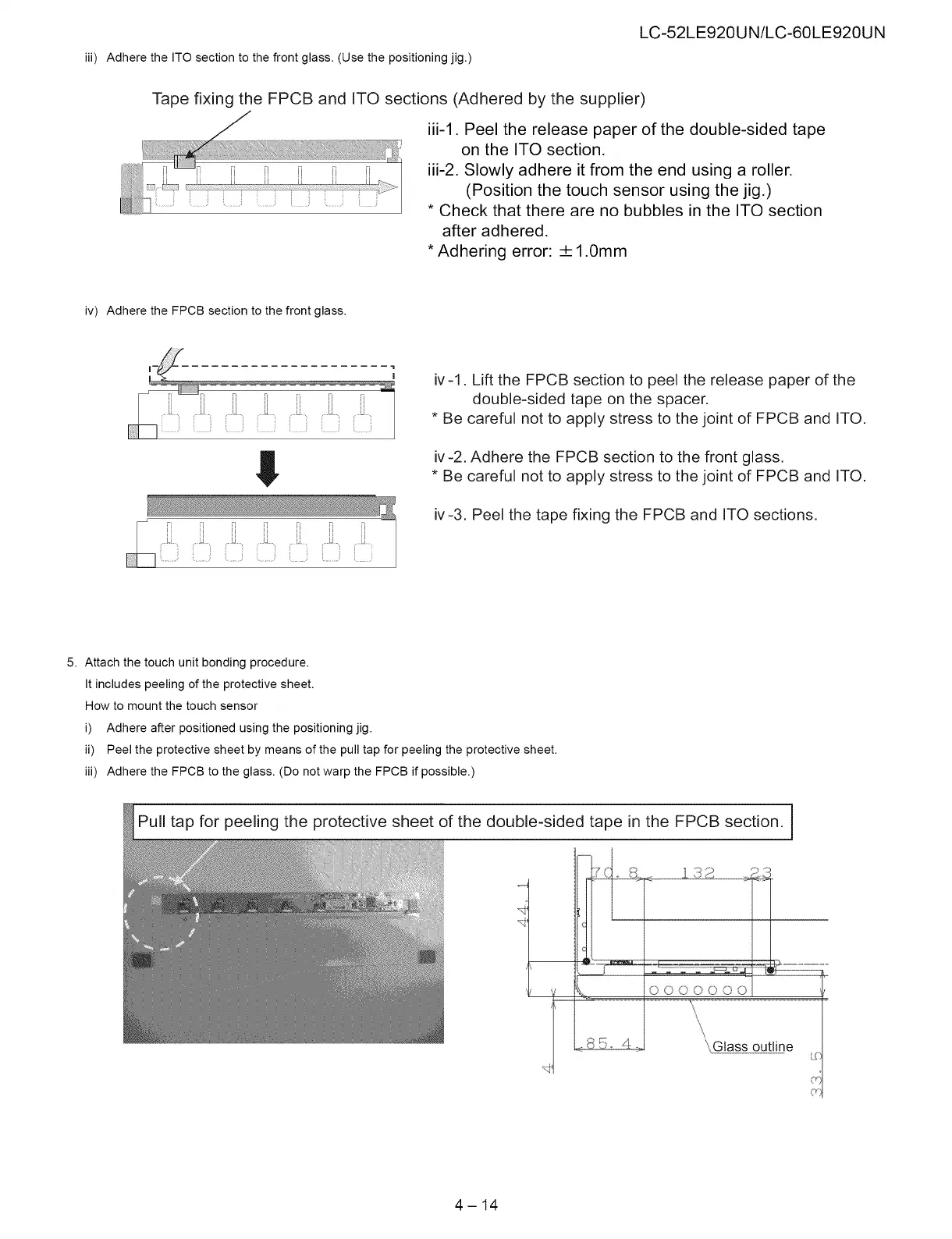

LC-52LE920UN/LC-60LE920UN
iii)
Adhere
the
ITO
section
to
the
front
glass.
(Use
the
positioning
jig.)
Tape
fixing
the
FPCB
and
[TO
sections
(Adhered
by
the
supplier)
iv)
Adhere
the
FPCB
section
to
the
front
glass.
oo
5.
Attach
the
touch
unit
bonding
procedure.
It
includes
peeling
of
the
protective
sheet.
How
to
mount
the
touch
sensor
i)
Adhere
after
positioned
using
the
positioning
jig.
iii-1.
Peel
the
release
paper
of
the
double-sided
tape
on
the
ITO
section.
iii-2.
Slowly
adhere
it
from
the
end
using
a
roller.
(Position
the
touch
sensor
using
the
jig.)
*
Check
that
there
are
no
bubbles
in
the
ITO
section
after
adhered.
*
Adhering
error:
=1.0mm
iv-1.
Lift
the
FPCB
section
to
peel
the
release
paper
of
the
double-sided
tape
on
the
spacer.
*
Be
careful
not
to
apply
stress
to
the
joint
of
FPCB
and
ITO.
iv-2.
Adhere
the
FPCB
section
to
the
front
glass.
*
Be
careful
not
to
apply
stress
to
the
joint
of
FPCB
and
ITO.
iv-3.
Peel
the
tape
fixing
the
FPCB
and
ITO
sections.
ii)
Peel
the
protective
sheet
by
means
of
the
pull
tap
for
peeling
the
protective
sheet.
iii)
Adhere
the
FPCB
to
the
glass.
(Do
not
warp
the
FPCB
if
possible.)
Pull
tap
for
peeling
the
protective
sheet
of
the
double-sided
tape
in
the
FPCB
section.
Glass
outline
4-14
