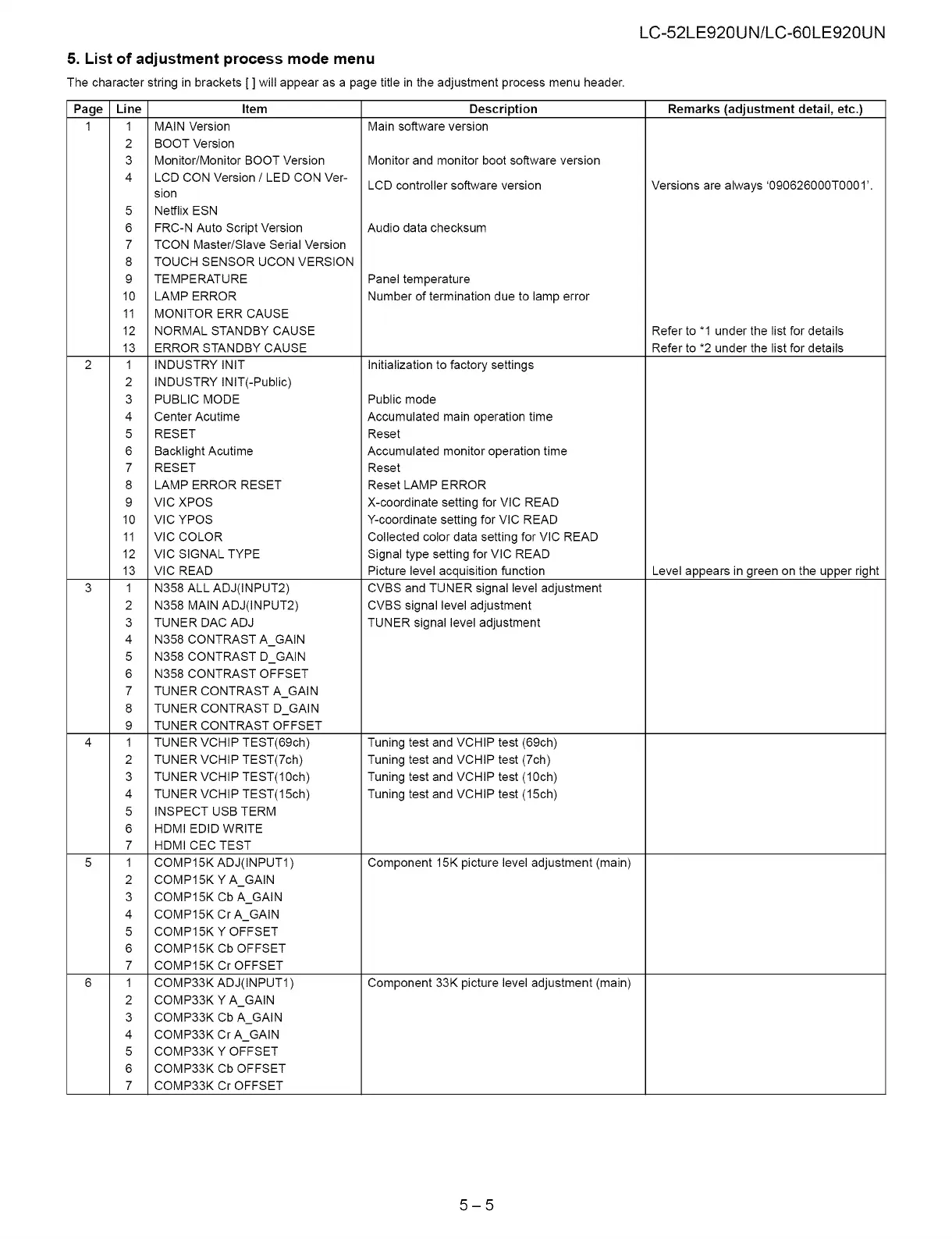

5. List of adjustment process mode menu
The character string in brackets |] will appear as a page title in the adjustment process menu header.
LC-52LE920UN/LC-60LE920UN
COMP33K Y A_GAIN
COMP33K Cb A_GAIN
COMP33K Cr A_GAIN
COMP33K Y OFFSET
COMP33K Cb OFFSET
Page | Line Item Description Remarks (adjustment detail, etc.)
1 1 MAIN Version Main software version
2 BOOT Version
3 Monitor/Monitor BOOT Version Monitor and monitor boot software version
4 cee CON Version / LED CON Ver- LCD controller software version Versions are always ‘090626000T0001’.
5 | Netflix ESN
6 FRC-N Auto Script Version Audio data checksum
7 | TCON Master/Slave Serial Version
8 | TOUCH SENSOR UCON VERSION
9 | TEMPERATURE Panel temperature
10 | LAMP ERROR Number of termination due to lamp error
11. | MONITOR ERR CAUSE
12 | NORMAL STANDBY CAUSE Refer to *1 under the list for details
13. | ERROR STANDBY CAUSE Refer to *2 under the list for details
2 1 INDUSTRY INIT Initialization to factory settings
2 | INDUSTRY INIT(-Public)
3. | PUBLIC MODE Public mode
4 | Center Acutime Accumulated main operation time
5 RESET Reset
6 Backlight Acutime Accumulated monitor operation time
7 RESET Reset
8 | LAMP ERROR RESET Reset LAMP ERROR
9 | VIC XPOS X-coordinate setting for VIC READ
10 | VIC YPOS Y-coordinate setting for VIC READ
11 | VIC COLOR Collected color data setting for VIC READ
12 | VIC SIGNAL TYPE Signal type setting for VIC READ
13. | VIC READ Picture level acquisition function Level appears in green on the upper right
3 1 N358 ALL ADJ(INPUT2) CVBS and TUNER signal level adjustment
2 N358 MAIN ADJ(INPUT2) CVBS signal level adjustment
3 | TUNER DAC ADJ TUNER signal level adjustment
4 | N358 CONTRAST A_GAIN
5 | N358 CONTRAST D_GAIN
6 | N358 CONTRAST OFFSET
7 | TUNER CONTRAST A_GAIN
8 | TUNER CONTRAST D_GAIN
9 | TUNER CONTRAST OFFSET
4 1 TUNER VCHIP TEST(69ch) Tuning test and VCHIP test (69ch)
2 | TUNER VCHIP TEST(7ch) Tuning test and VCHIP test (7ch)
3 | TUNER VCHIP TEST(10ch) Tuning test and VCHIP test (10ch)
4 | TUNER VCHIP TEST(15ch) Tuning test and VCHIP test (15ch)
5 | INSPECT USB TERM
6 | HDMI EDID WRITE
7 | HDMI CEC TEST
5 1 COMP15K ADJ(INPUT1) Component 15K picture level adjustment (main)
2 | COMP15K Y A_GAIN
3. | COMP15K Cb A_GAIN
4 | COMP15K Cr A_GAIN
5 | COMP15K Y OFFSET
6 | COMP15K Cb OFFSET
7 | COMP15K Cr OFFSET
6 1 COMP33K ADJ(INPUT1) Component 33K picture level adjustment (main)
2
3
4
5
6
7 COMP33K Cr OFFSET
