Sharp LC-55LE541U - YCbCr Signal Waveforms

CONFIDENTIAL – DO NOT COPY
Page 8-2
File No. SG-0000245
YCbCr
1. 100% color bar 標準信號

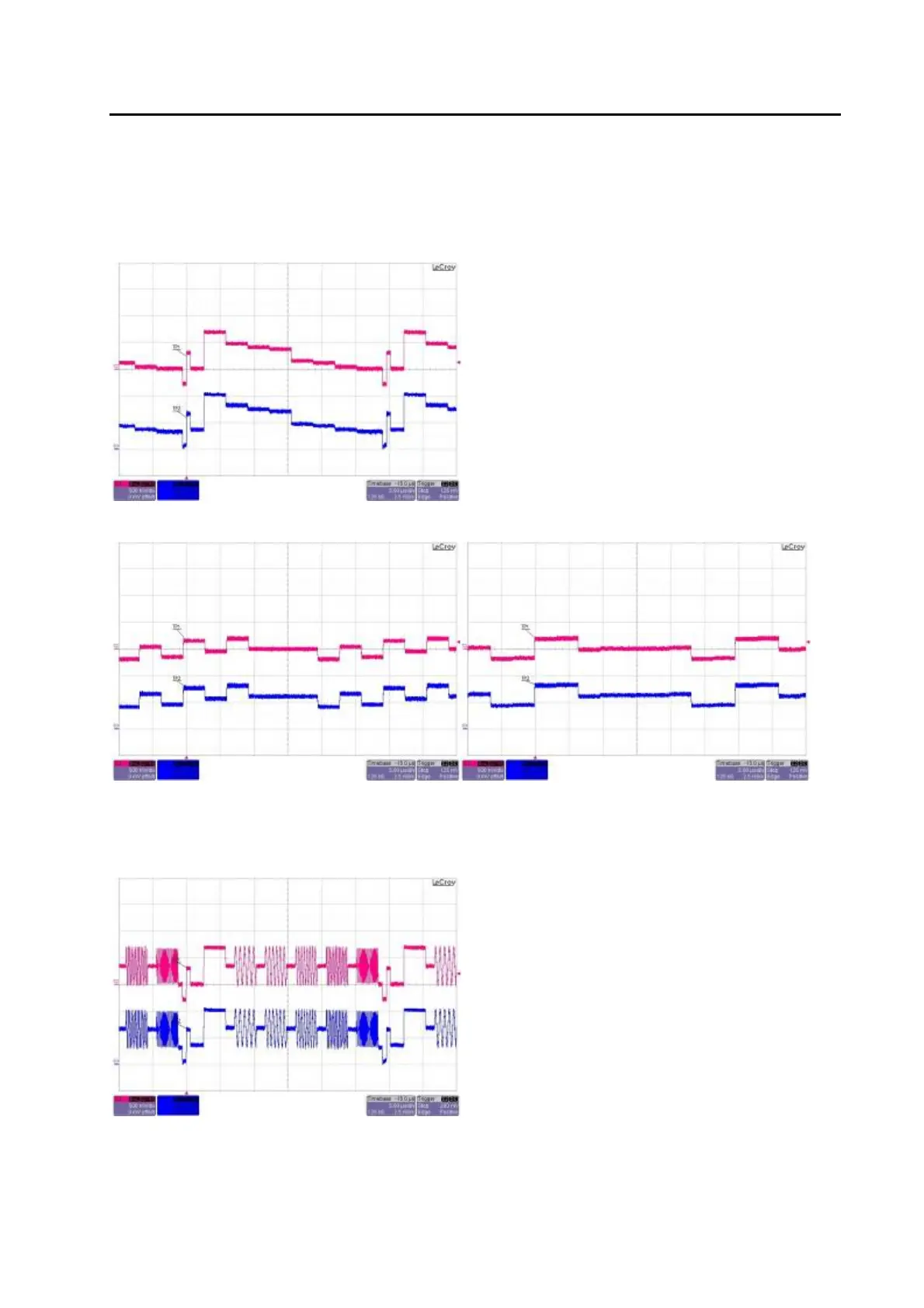

(Component _ Y)
(Component _ Pb) (Component _ Pr)
2. 最高頻的 timing 訊號為１黑 1 白或 multi burst 訊號(for CVBS)
(Component _ Y)
