CONFIDENTIAL – DO NOT COPY
Page 8-1
File No. SG-0000245
Chapter 8 Waveforms

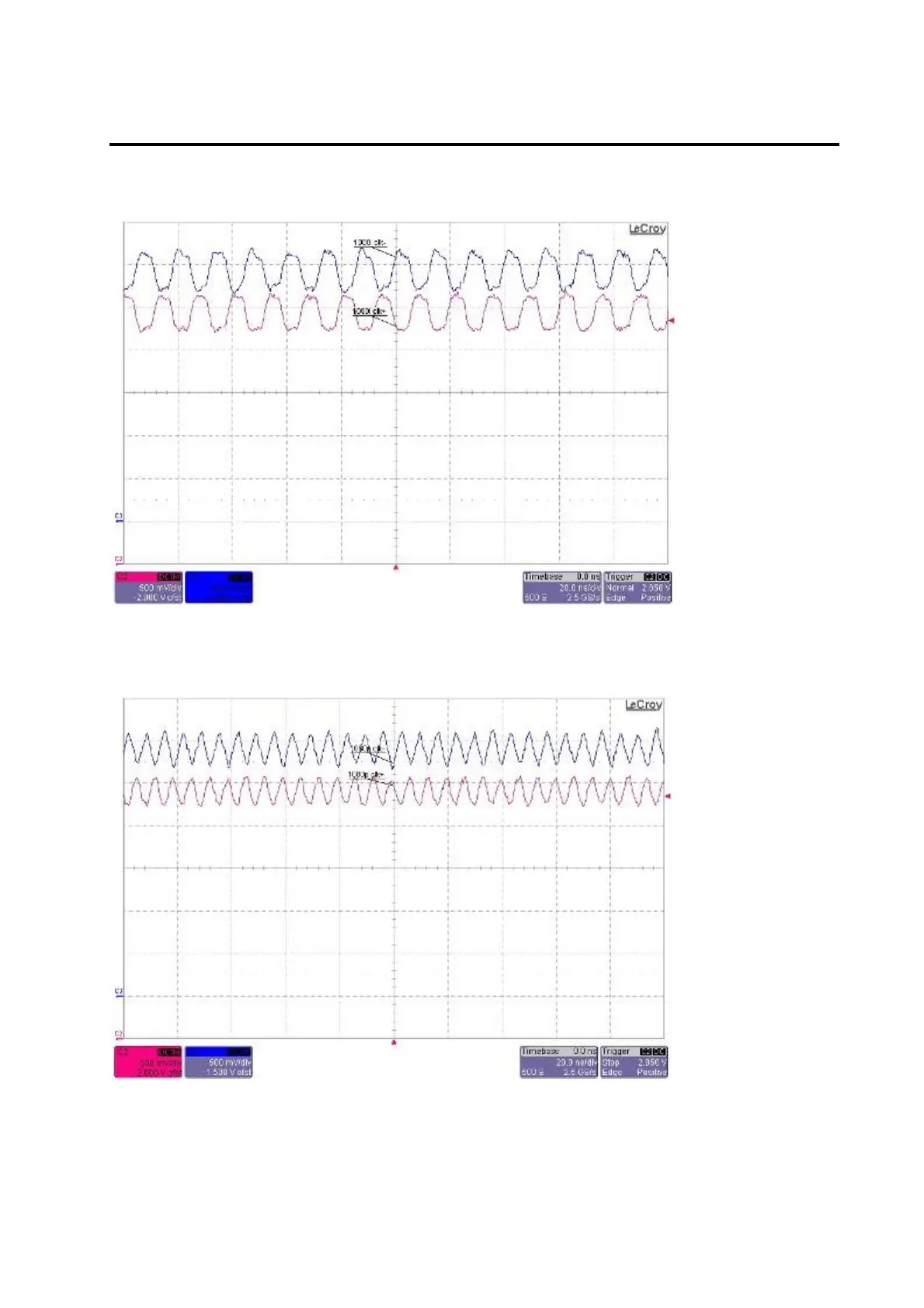

TMDS 1080I input:
B4_RXEC+ / B5_RXEC
TMDS 1080P input
R0_RXOC+ / R1_RXOC
