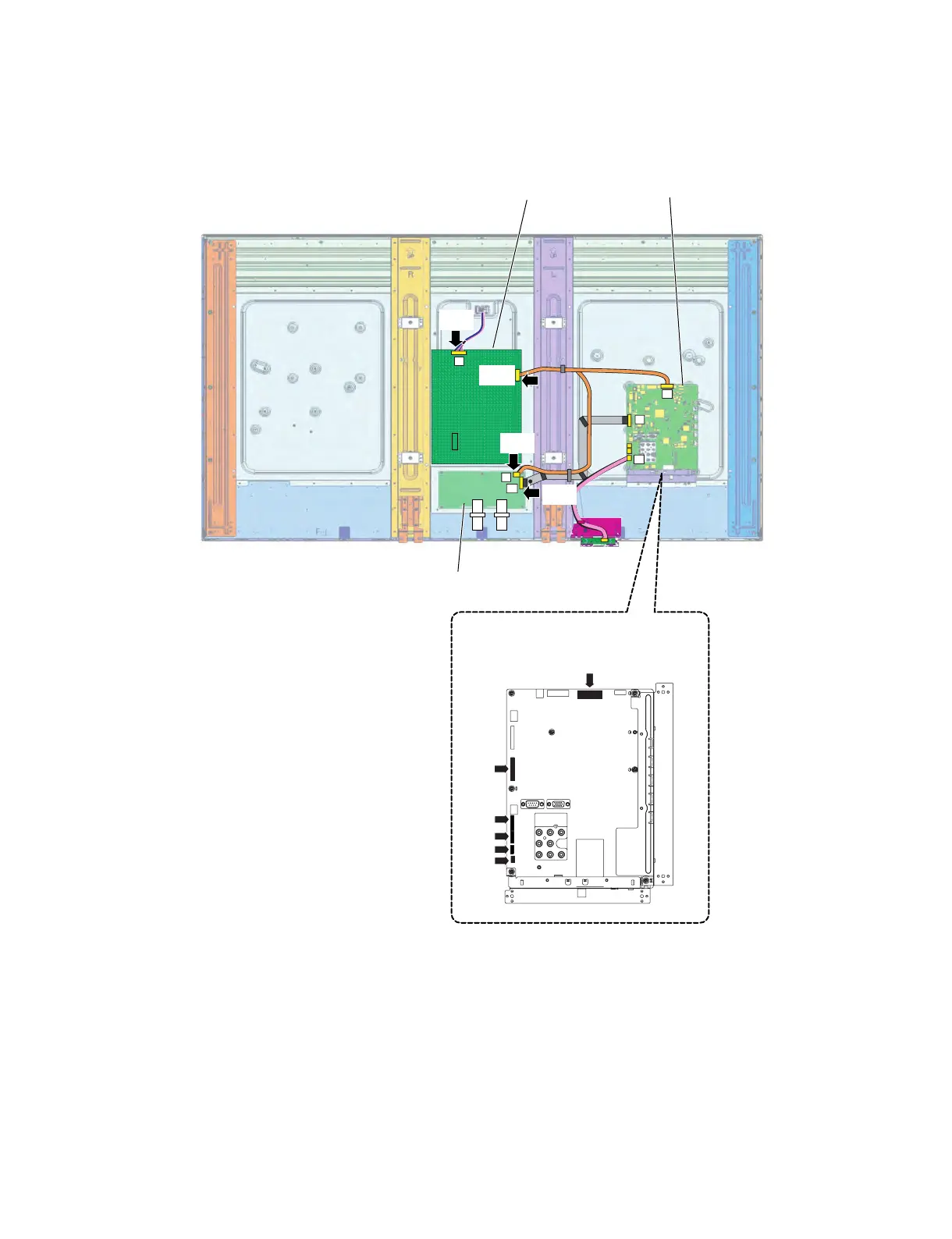

3. Removing of Connectors
1. Disconnect the following connectors from the MAIN Unit. (PD, LV, RC, UB, BT/IR) (for LC-70LE657U)
2. Disconnect the following connectors from the MAIN Unit. (PD, LV, RC, UB) (for LC-70LE650U/C6500U)
3. Disconnect the following connectors from the POWER/LED DRIVER Unit. (PD, LA)
4. Disconnect the following connectors from the LCD CONTROL Unit. (LV, PL)
LA
PD
PD
LV
PL
LW
UB
