Sharp LC-60C6500U - On-Screen Display Menu

LC-60/70LE650U/C6500U/LE657U,LC-60/70LE755U/LE757U/LE857U/C7500U
4 – 13

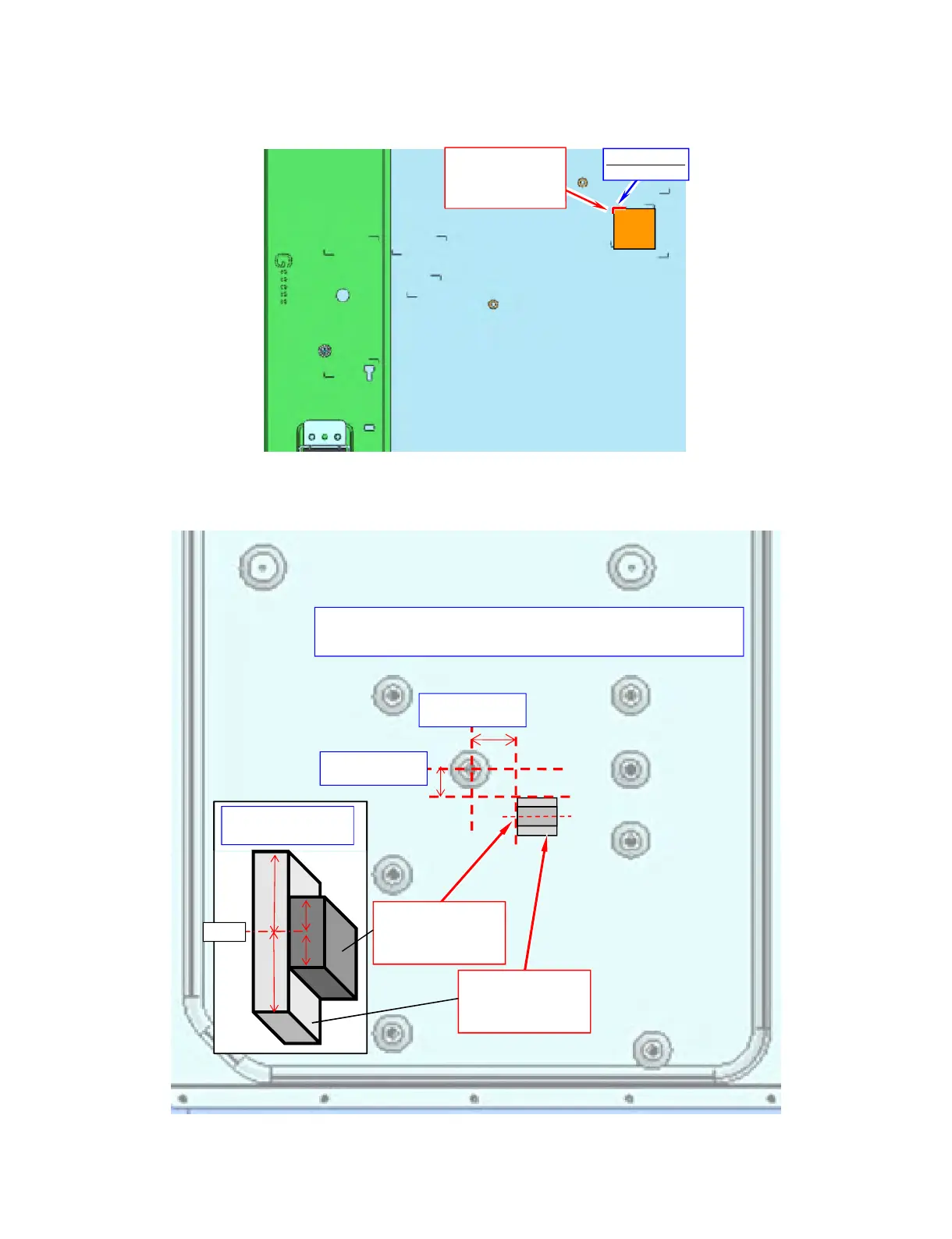

[3] The location putting on the heat measure sheet (LC-60/70LE650U/C6500U/LE657U)
1. MAIN PWB Unit
• LC-60LE650U/C6500U/LE657U
• LC-70LE650U/6500U/LE657U
(1) Stick***
PSPAZD031WJKZ
MAIN CPU COOLER
(20*20*7T)
(20 20 7T)
Stick standard
Punch mark
30mm from center
of screw hole.
20mm from center
of screw hole.
First , please put "PSPAZC805WJKZ" along the standard point.
next , please put "PSPAZC854WJKZ" on the center of "PSPAZC805WJKZ".
( Don't protrude from edge of "PSPAZC805WJKZ".)
Side View of
MAIN•CPU COOLER
(2) Stick *****
PSPAZC805WJKZ
(MAIN-CPU COOLER)
(25x25x8mm)
(3) Stick *****
PSPAZC854WJKZ
(MAIN-CPU COOLER)
(25x15x8.5mm)
Center
