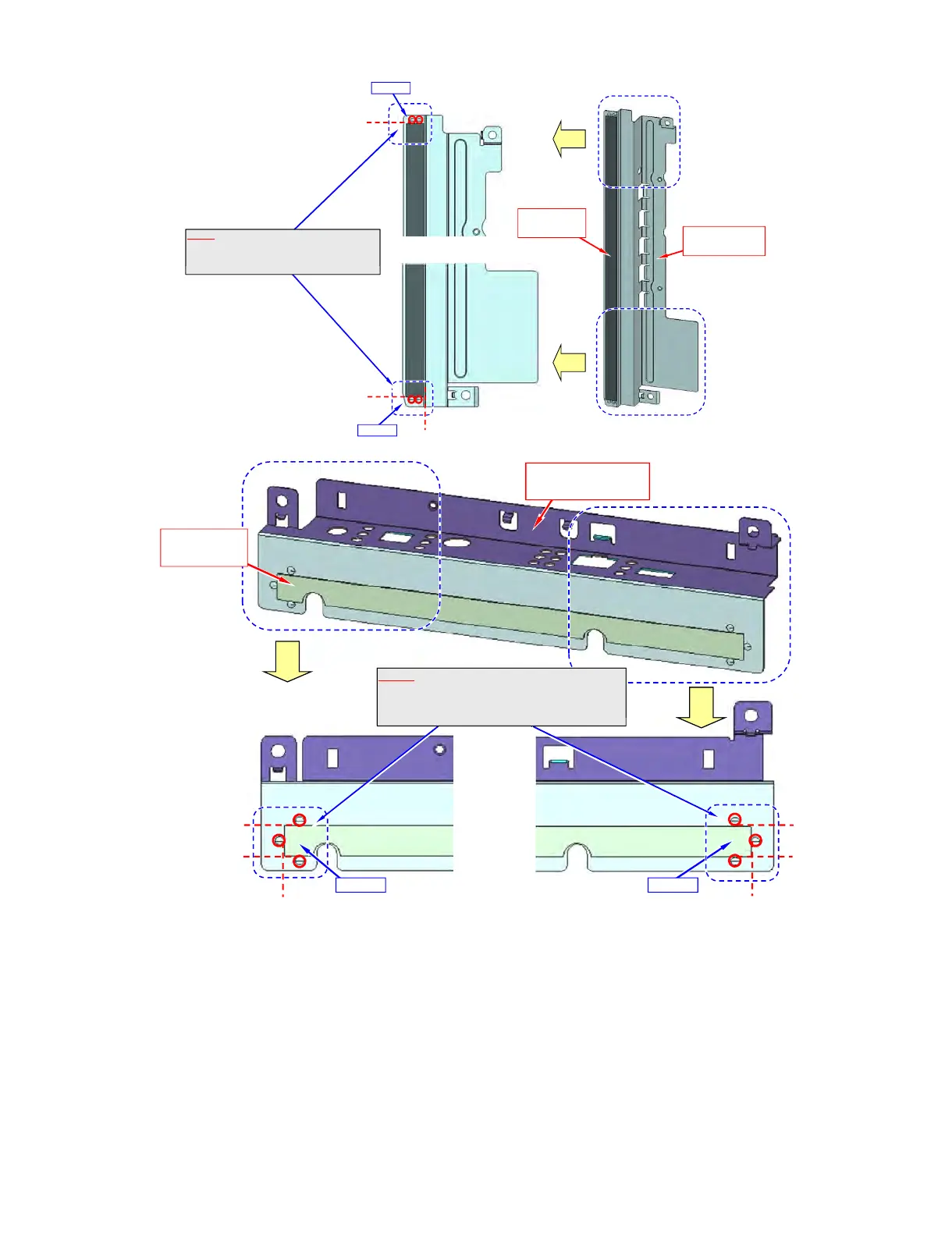

• LC-70LE650U/C6500U/LE657U
positioning
(2) Stick *****
PSPAZC690WJZZ
(COND:10X260 )
(1) Prepare*****
LANGKD825WJ3W
( P/G TERMINAL SIDE )
Caution
Base line : Protruding portion of TERMINAL ANG
Stick it on the inside of the protruding portion.
Do not stick it on protruding portion.
Stick it so that CONDUCTR does not become the wrinkle.
positioning
Stick it so that CONDUCTR does not become the wrinkle.
(1) Prepare*****
LANGKD876WJ3W
(
BOTTOM)
Caution
Base line : Protruding portion of TERMINAL ANG
Stick it on the inside of the protruding portion.
Do not stick it on protruding portion.
Sti k it th t CONDUCTR d t b th i kl
(2) Stick *****
PSPAZC691WJZZ
(COND:10X185 )
positioningpositioning
Stick it so that CONDUCTR does not become the wrinkle.
P/G TERMINAL
