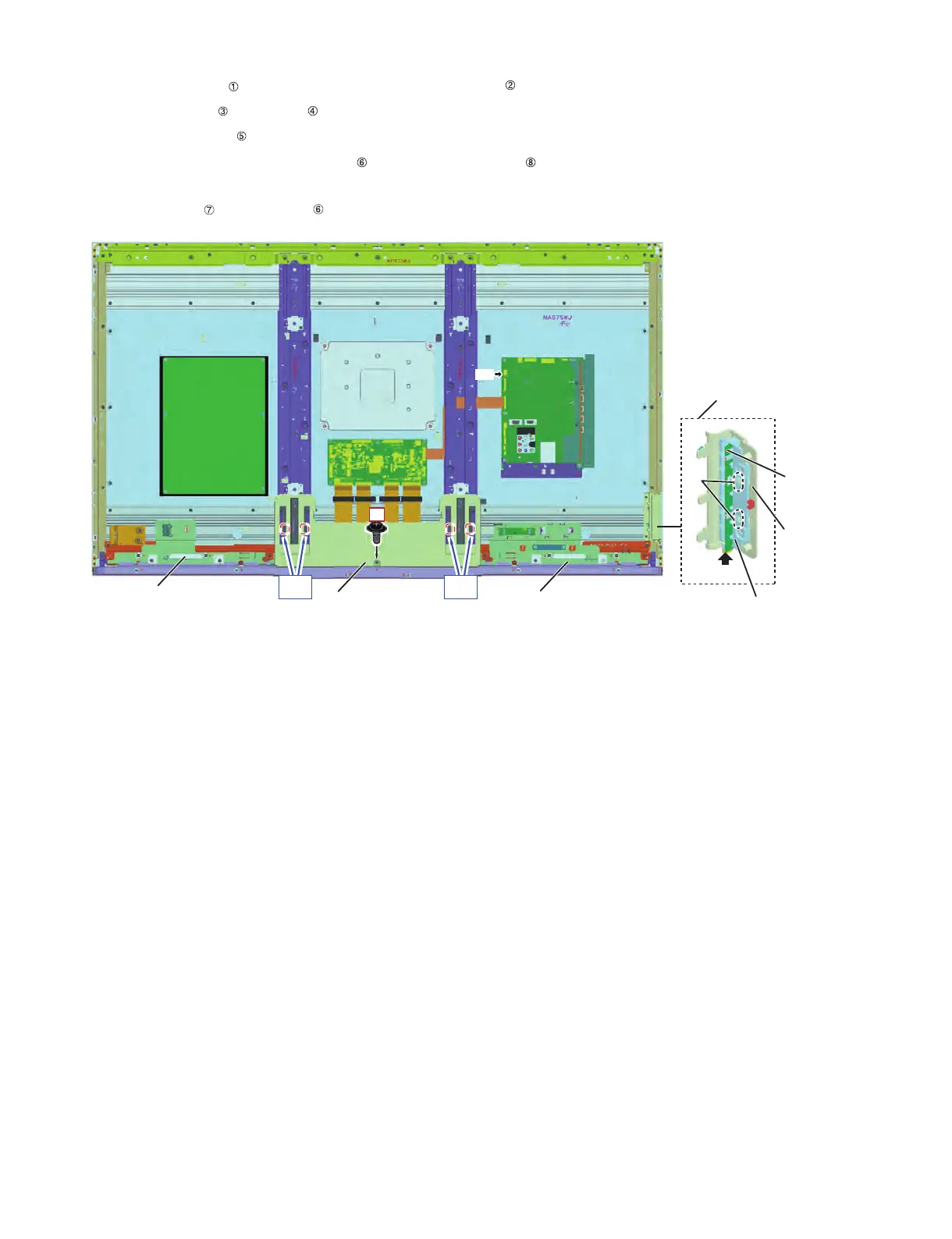

2. Removing of Speaker (L/R) and KEY Unit.
1. Remove the 1 lock screw and the 4 Hooks and detach the Bottom Cover .
2. Detach the Speaker (L) , Speaker (R) .
3. Detach the KEY Unit Ass'y .
4. Remove the 2 Hooks and detach the Key Button from the Key Button Cover .
5. Disconnect the KM wire.
6. Detach the KEY Unit from Key Button .
*QQM *QQM
SP
Ԙ
Ԛ
Speaker (L)
ԛ
Speaker (R)
ԙ
Bottom Cover
Ԝ-';7PKV#UU[
ԝ-G[$WVVQP
ԟ-G[$WVVQP
˴%QXGT
㨇-/?
Ԟ-';7PKV
*QQM
