48
LC-60LE651 MK2
LC-60LE652 MK2

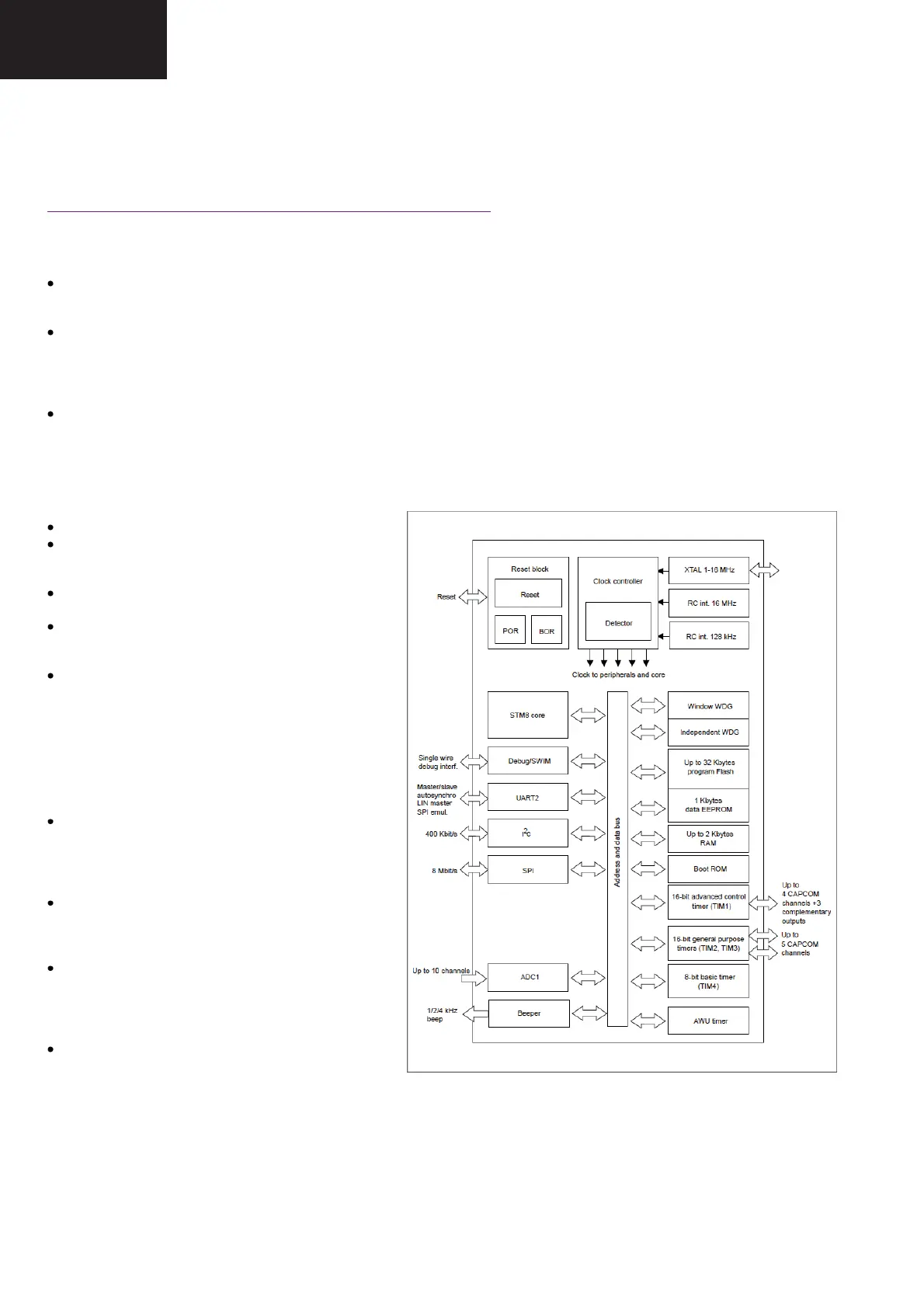

IC 3800: STANDBY CONTROLLER
Part number: STM8S105K4T6CTR (ST MICRO)
Sharp code: RH-IXD550WJZZY
http://www.st.com/st-web-ui/static/active/en/resource/technical/document/datasheet/CD00200092.pdf
Features
Core.
o 16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline.
o Extended instruction set.
Memories.
o Medium-density Flash/EEPROM:
Program memory up to 32 Kbytes (data retention: 20 years at 55°C after 10k cycles).
Data memory up to 1 Kbytes true data EEPROM (endurance 300k cycles).
o RAM: Up to 2 Kbytes.
Clock, reset and supply management.
o 2.95 V to 5.5 V operating voltage.
o Flexible clock control, 4 master clock sources:
Low power crystal resonator oscillator.
External clock input.
Internal, user-trimmable 16 MHz RC.
Internal low power 128 kHz RC.
Clock security system with clock monitor.
Power management:
o Low power modes (wait, active-halt, halt).
o Switch-off peripheral clocks individually.
Permanently active, low consumption power-on and
power-down reset.
Interrupt management
o Nested interrupt controller with 32 interrupts.
o Up to 37 external interrupt on 6 vectors.
Timers.
o 2x 16-bit general purpose timers, with 2+3
CAPCOM channels (IC, OC or PWM).
o Advanced control timer: 16-bit, 4 CAPCOM
channels, 3 complementary outputs, dead-
time insertion and flexible synchronization.
o 8-bit basic timer with 8-bit prescaler.
o Auto wake-up timer.
o Window and independent watchdog timers.
Communications interfaces.
o UART with clock output for synchronous
operation, Smartcard, IrDA, LIN.
o SPI interface up to 8 Mbit/s.
o I2C interface up to 400 Kbit/s.
Analog-to-digital converter (ADC).
o 10-bit, ±1 LSB ADC with up to 10
multiplexed channels, scan mode and analog
watchdog.
I/Os.
o Up to 38 I/Os on a 48-pin package including
16 high sink outputs.
o Highly robust I/O design, immune against
current injection
Unique ID.
o 96-bit unique key for each device.
MAJOR ICs INFORMATION ( continued )
