Sharp LC-60LE651 MK2 - Removing Major Parts; Initial Disassembly Steps

23
LC-60LE651 MK2
LC-60LE652 MK2
REMOVING OF MAJOR PARTSREMOVING OF MAJOR PARTS

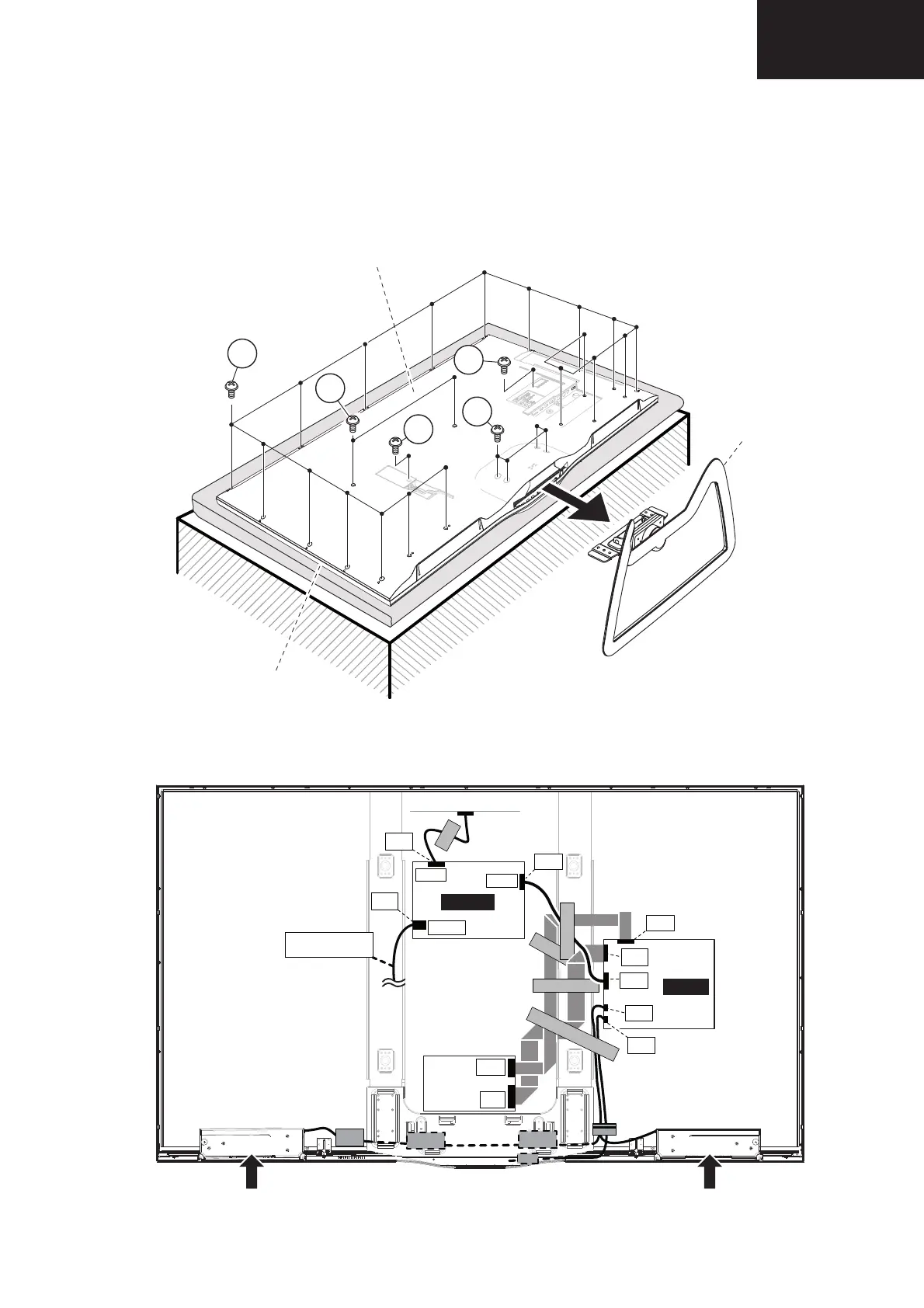

1. Removing of major Parts 60”
1.1. Remove the 4 lock screws c and detach the Stand.
1.2. Remove the 19 lock screws d, 1 lock screw e, 1 lock screw f, 2 locks screws g and detach the AC cord cover
and Rear Cabinet.
STAND
2
front
CABINET
rear
CABINET
1
3
4
5
STAND
1.3. Disconnect all the connectors from all the PWBs.
Main unit
[LV]
[PD]
[SP]
[LW]
[LV]
AC CORD
[PD]
[EL]
[LA]
Power unit
P802
P801
SC101
[LW]
[RA]
SPEAKER -R
SPEAKER -L
