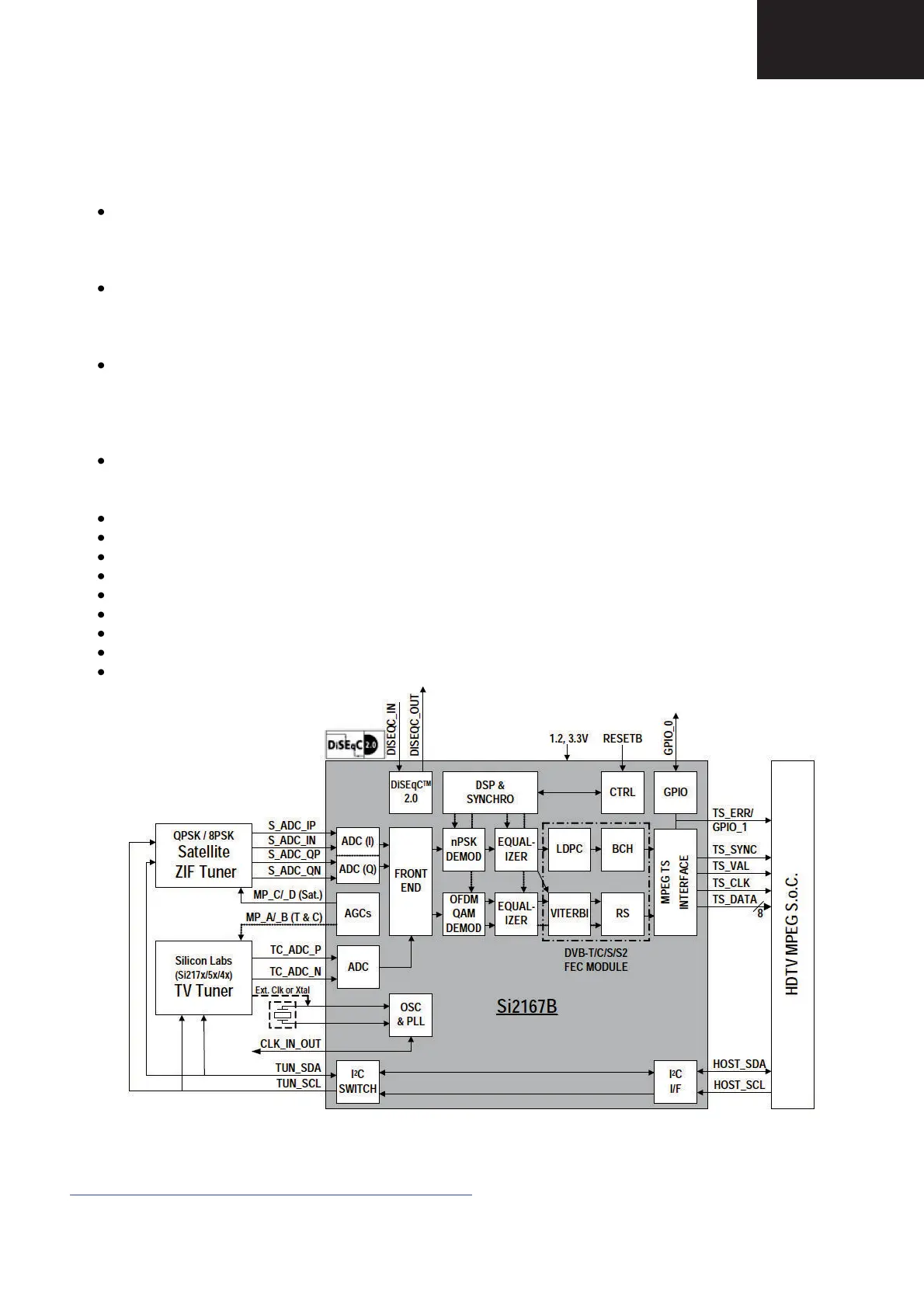

The Si2167-B20 programmable Transport Stream interface provides a flexible range of output modes and is fully compatible
with all MPEG decoders or conditional access modules to support any customer application.
Features:
DVB-T (ETSI EN 300 744).
o COFDM demodulator and enhanced FEC decoder.
o NorDig Unified 2.2.1, D-Book 7.0 compliant.
o Supports all C.R., G.I., LP, and HP streams.
DVB-C (ETSI EN 300 429) / ITU J.83 Annex A/B/C.
o QAM demodulator and FEC decoder.
o 1 to 7.2 MSymbol/s.
o C-Book compliant.
DVB-S2 (ETSI EN 302 307 & TR102-376).
o QPSK/8PSK demodulator and FEC decoder.
o Broadcast profile: CCM, 64800 bits frame, single TS.
o 1 to 45 MSymbol/s (optimized for 2 to 32 MSymbol/s).
o DIRECTV™ AMC compatible.
DVB-S (ETSI EN 300 421).
o QPSK demodulator and enhanced FEC decoder.
o 1 to 45 MSymbol/s.
DIRECTV™ DSS compliant.
DiSEqC™ 2.0 interface and Unicable support.
I2C serial bus interfaces (master and host).
Three ADCs with independent IF and ZIF (differential) inputs for terrestrial/cable and satellite.
GPIOs and multi-purpose ports for independent AGCs (up to 4) to control satellite and T/C tuners.
Firmware control for upgradeability.
Flexible TS interface with serial or parallel single output.
Fast lock times for all media.
Only two power supplies: 1.2 and 3.3 V.
IC1103*: DVB-T/C/T2 Demodulator.
Part number: Si2168-A30-GM (SILICON LABS)
Sharp code: RH-IXD525WJZZQ
http://www.silabs.com/Support%20Documents/TechnicalDocs/Si2168-A20-short.pdf
