LC-60LE651 MK2
LC-60LE652 MK2
Operation Manual (Continued)

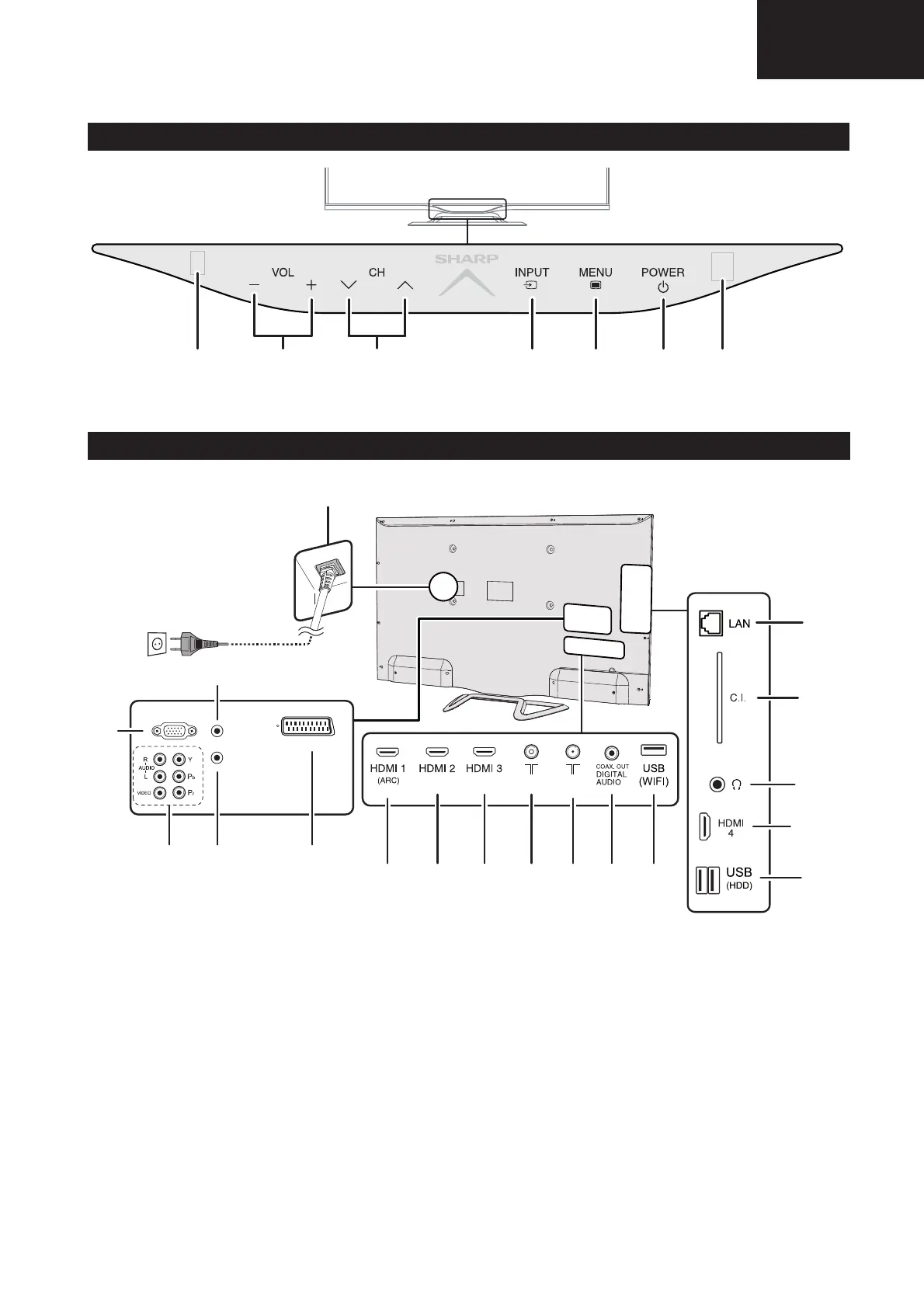

TV (Front view)
TV (Side and rear view)
Illumination led*
WARNING
• Excessive sound pressure from earphones and headphones can cause hearing loss.
• Do not set the volume at a high level. Hearing experts advise against extended listening at high volume levels.
Power
button
Menu
button
Input
source
button
Volume
buttons
Programme (channel)
buttons
1 Analog AUDIO input for DVI and PC
(Jack 3.5mm connector)
2 PC Input
3
COMPONENTS / AV terminals
4 SERVICE connector (jack 3.5 mm)
5 SCART (AV/RGB, Y/C Input) terminal
6 HDMI 1 (HDMI/DVI/ARC)
7 HDMI 2 (HDMI/DVI)
8 HDMI 3 (HDMI/DVI)
15 HEADPHONES jack
16 COMMON INTERFACE slot
17 LAN terminal
18 AC INPUT terminal
Remote
Control
Sensor
3D infrared
emitter
*TV indicator status (Page 17)
SAT
HDMI/PC
ANALOG
AUDIO
INPUT
SERVICE
PC IN
SCART (AV / RGB / S-VIDEO)
ANT
11
12
18
17
16
15
14
13
2
3
5
4
1
6
7 8
9
10
9 Antenna input terminal
10 SAT (Satellite antenna input) (Only
LE652 series)
11 Digital Audio Output terminal (SPDIF)
12 USB terminal (Wi-Fi use only)
13 USB terminal (USB REC / MEDIA
PLAYER / SOFTWARE / HDD READY
/ 3D GLASSES BATTERY)
14 HDMI 4 (HDMI/DVI)
