LC-60/70LE745U,C7450U,LE845U,C8470U,LE847U (1st Edition)
4 – 3

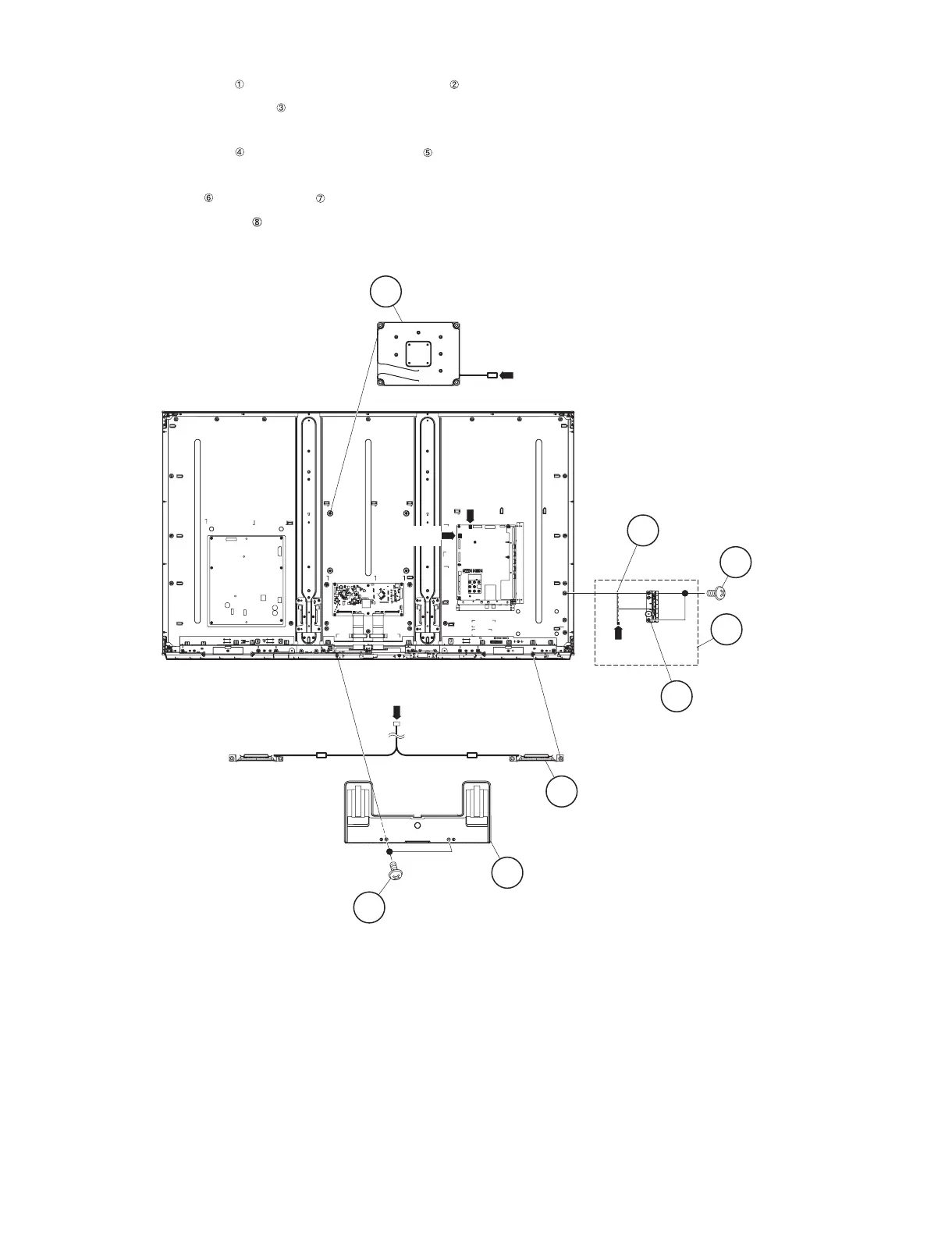

2. Removing of Bottom Cover Ass’y, Speaker Unit (Woofer),Speaker Unit (L/R) and KEY Unit.
1. Remove the 2 lock screws and detach the Bottom Cover Ass’y .
2. Detach the Speaker Unit (Woofer) .
3. Disconnect the SB wire.
4. Remove the 2 lock screws and detach the KEY Unit Ass’y .
5. Disconnect the KM wier.
6. Detach the KEY Unit from Key Buttom .
7. Detach the Speaker Unit (L/R) .
8. Disconnect the SP wire.
[KM]
7
Key Button
8 Speaker Unit (L/R)
2
1
Bottom Cover Ass'y
6
4
KEY Unit
3Speaker Unit (Woofer)
[SB]
[SP]
[SP]
[SB]
5
KEY Unit
Ass'y

Sharp LC-60LE745U Specifications

General

Display diagonal	60 \
Native aspect ratio	16:9
Native refresh rate	120 Hz
LED backlighting type	Edge-LED
Supported video modes	1080p
Contrast ratio (dynamic)	8000000:1
Viewing angle, horizontal	176 °
3D	Yes
3D type	Active
Analog signal format system	NTSC
Digital signal format system	ATSC
RMS rated power	20 W
Number of speakers	2
DVI port	No
HDMI ports quantity	4
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Digital audio optical out	1
Electronic Program Guide (EPG)	-
Product color	Black
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (max)	170 W
Power consumption (standby)	- W

Weight and Dimensions

Depth (with stand)	366 mm
Height (with stand)	887 mm
Weight (with stand)	34500 g
Depth (without stand)	55 mm
Width (without stand)	1390 mm
Height (without stand)	838 mm
Weight (without stand)	27500 g
