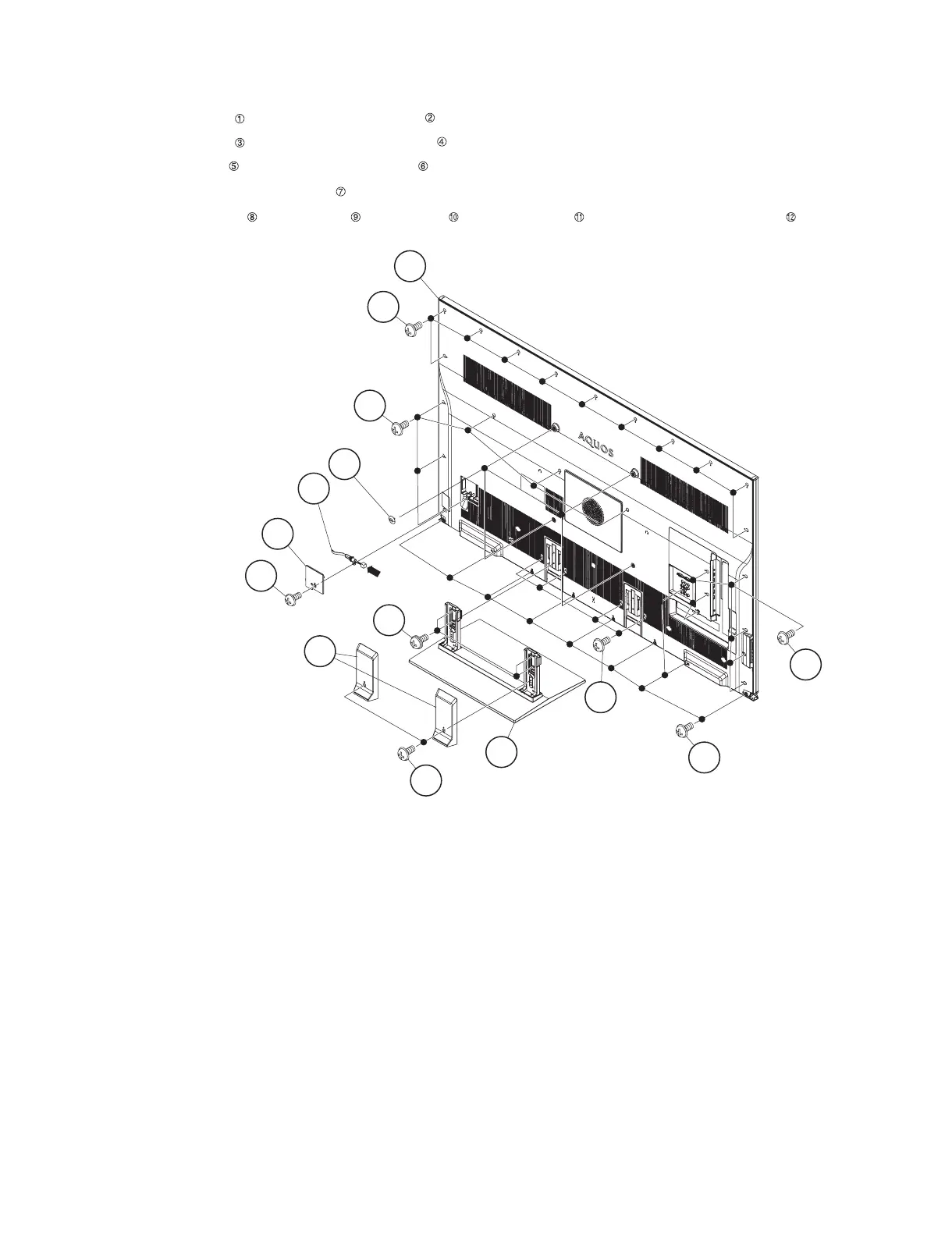

[2] REMOVING OF MAJOR PARTS (LC-70LE745U,C7450U,845U,847U,C8450U)
1. Removing of Stand Unit and Rear Cabinet Ass’y.
1. Remove the 2 lock screws and detach the 2 Stand Covers .
2. Remove the 4 lock screws and detach the Stand Base Ass’y .
3. Remove the 1 lock screw and detach the AC Cord Cover .
4. Disconnect AC wire and detach the AC Cord .
5. Remove the 4 VESA Covers , 11 lock screws , 9 lock screws and 17 lock screws and detach the Rear Cabinet Ass’y .
4 Stand Base Ass'y
12Rear Cabinet Ass'y
9
11
11
10
11
3
1
5
[AC]
6AC Cord Cover
7AC Cord
2Stand Cover
8
VESA Cover

Sharp LC-60LE745U Specifications

General

Display diagonal	60 \
Native aspect ratio	16:9
Native refresh rate	120 Hz
LED backlighting type	Edge-LED
Supported video modes	1080p
Contrast ratio (dynamic)	8000000:1
Viewing angle, horizontal	176 °
3D	Yes
3D type	Active
Analog signal format system	NTSC
Digital signal format system	ATSC
RMS rated power	20 W
Number of speakers	2
DVI port	No
HDMI ports quantity	4
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Digital audio optical out	1
Electronic Program Guide (EPG)	-
Product color	Black
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (max)	170 W
Power consumption (standby)	- W

Weight and Dimensions

Depth (with stand)	366 mm
Height (with stand)	887 mm
Weight (with stand)	34500 g
Depth (without stand)	55 mm
Width (without stand)	1390 mm
Height (without stand)	838 mm
Weight (without stand)	27500 g
