6 – 2

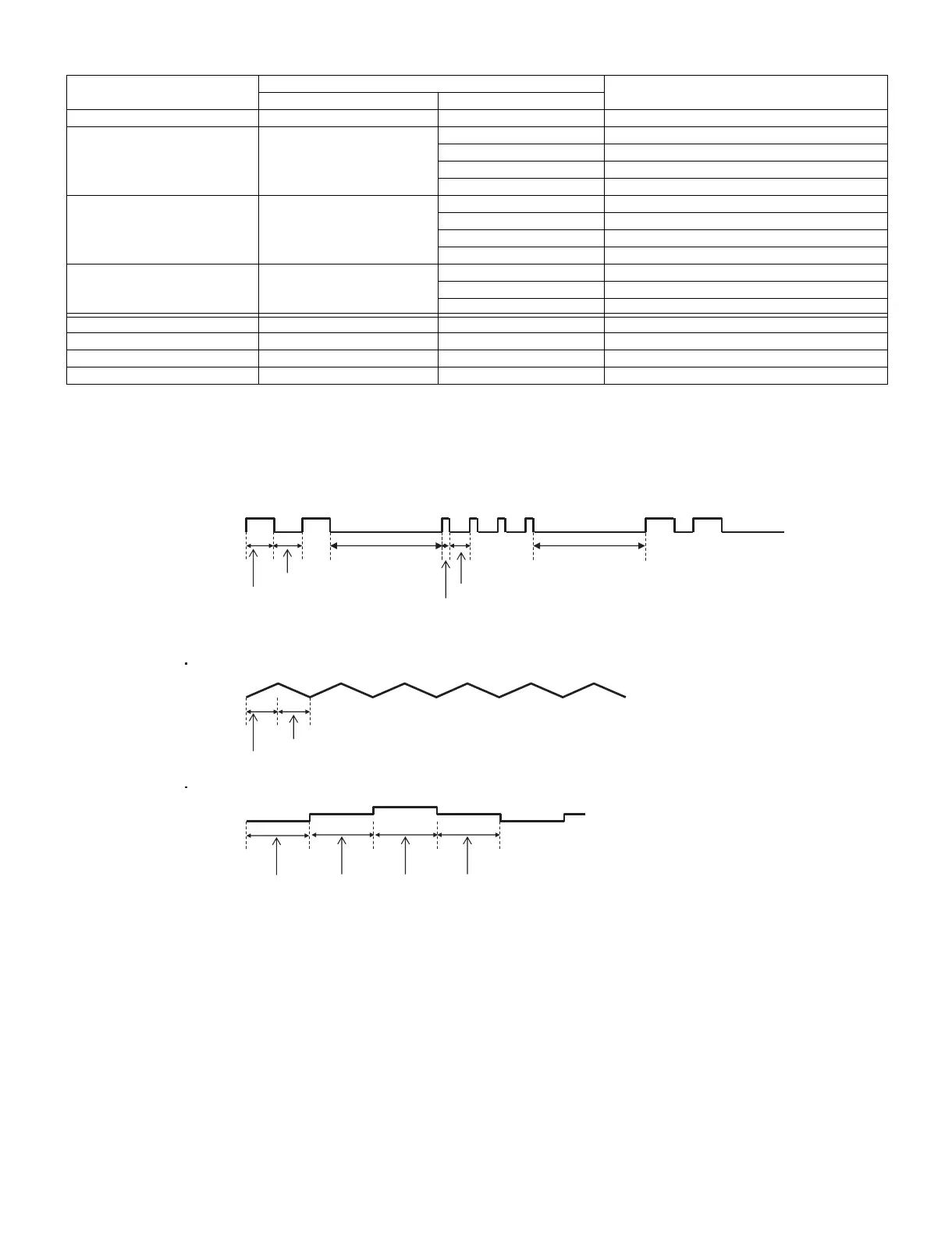

Table 1. Concrete flashing pattern
*2: They depend on the system. Power supply error is defined from product to product.
*3: For details, refer to ERROR STANDBY CAUSE on the adjustment process screen.
*4: If the boot section is abnormal, there is no flashing (flashing impossible).
3. New method
Item
Detail display
Cause
Slow flashing Fast flashing
Inverter/Lamp system failure Flashes once Flashes once Lamp error
Power PWB
failure
(Power failure, etc.)
Flashes twice Flash once Power supply error 2 (*2) AC_DET error
Flash twice Power supply error 2 (*2) UR+13V error
Flash 3 times Power supply error 2 (*2) D+3.3V error
Flash 5 times Panel power supply error
Main PWB
failure
(Communication
failure, etc.)
Flashes 3 times Flashes once Initial communication error
Flashes twice Start-up confirmation communication error
Flashes 3 times Regular communication error
Flashes 5 times Other communication error
Others Flashes 4 times Flashes once Temperature error
Flashes twice Sync error
Flashes 3 times Notification from the main microprocessor (*3)
VerUP executing Flashes smoothly None Version upgrading
VerUP succeeded Flashes in a staircase pattern None Version upgrade succeeded
VerUP failed None Flashes continuously Version upgrade failed
ROM data failure None Flashes continuously Start-up after failing version upgrade (*4)
Center icon
Center icon
Center icon
Flashing during Verup
Flashing when completing Verup
1600ms
300ms
100ms
500ms
500ms
1000ms
400ms
400ms
1600ms
1000ms 1000ms 1000ms

Sharp LC-60LE745U Specifications

General

Display diagonal	60 \
Native aspect ratio	16:9
Native refresh rate	120 Hz
LED backlighting type	Edge-LED
Supported video modes	1080p
Contrast ratio (dynamic)	8000000:1
Viewing angle, horizontal	176 °
3D	Yes
3D type	Active
Analog signal format system	NTSC
Digital signal format system	ATSC
RMS rated power	20 W
Number of speakers	2
DVI port	No
HDMI ports quantity	4
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Digital audio optical out	1
Electronic Program Guide (EPG)	-
Product color	Black
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (max)	170 W
Power consumption (standby)	- W

Weight and Dimensions

Depth (with stand)	366 mm
Height (with stand)	887 mm
Weight (with stand)	34500 g
Depth (without stand)	55 mm
Width (without stand)	1390 mm
Height (without stand)	838 mm
Weight (without stand)	27500 g
