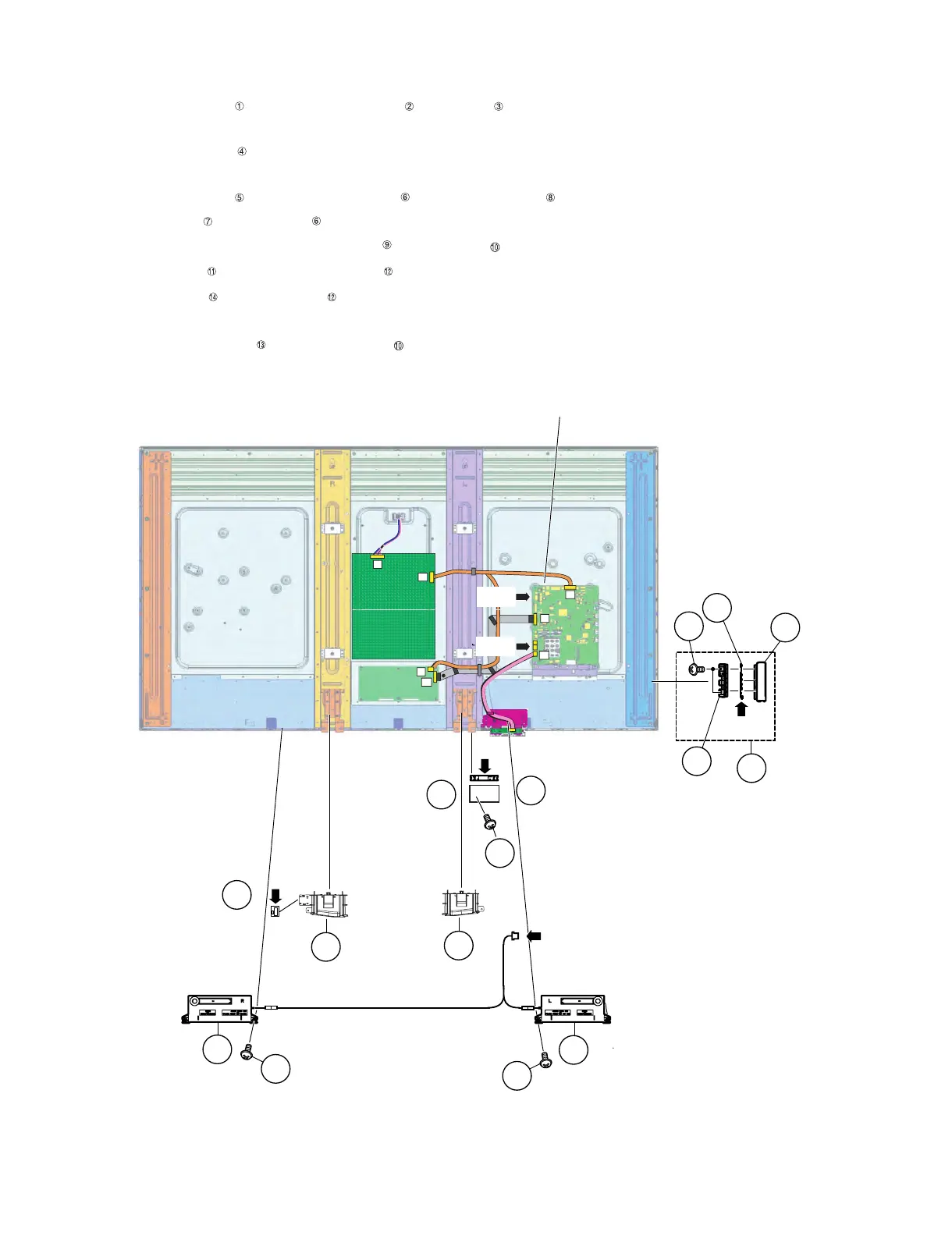

2. Removing of Speaker (L/R) and KEY Unit.
1. Disconnect the SP wire.
2. Remove the 2 lock screws and detach the Speaker (L) , Speaker (R) .
3. Disconnect the RC wire.
4. Detach the KEY Unit Ass’y .
5. Disconnect the KM wire.
6. Remove the 2 lock screws and detach the Key Button from Key Button Cover .
7. Detach the KEY Unit from Key Button .
8. Remove the 6 Hooks and detach the Bottom Cover-L Bottom Cover-R .
9. Remove the 1 Screw and detach the Wi-Fi Holder .
10.Detach the Wi-Fi Unit from Wi-Fi Holder .
11.Disconnect the UB wire.
12.Detach the BLUETOOTH Unit from Bottom Cover-R .(LC-70LE657U Only)
13.Disconnect the BT wire.(LC-70LE657U Only)
