Connecting to an external audio device (Amplifi er, Surround Sound,
Sound Bars etc)
When connecting via the TV’s 3.5mm earphone output, this will disable the TV speakers.
OPTION 3 for digital optical audio output.
Digital
audio
out
(optical)
Digital
Audio
in
(Optical)
Digital
audio
in
(optical)
OPTION 1 for 3.5mm earphone output.
3.5mm
audio
in
3.5mm
earphone
3.5mm
earphone
OPTION 2 for 3.5mm earphone output.
L (white)
R (red)
AV in
Video (yellow)
is not connected
Y (green)
PB (blue)
PR (red)
R (red)
L (white)
Y (green)
PB (blue)
PR (red)

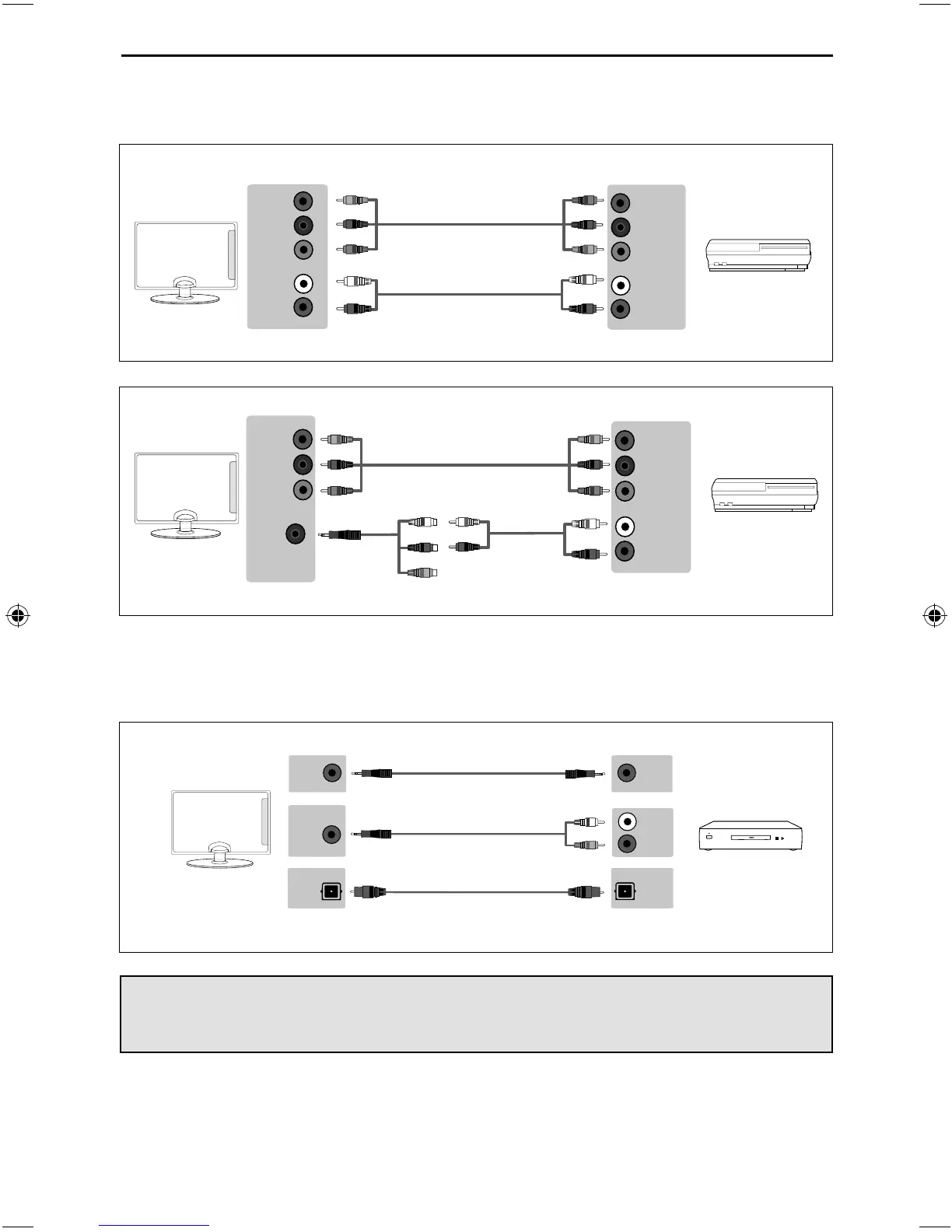

Connection example for TV models with YPbPr and Mini-AV inputs
Y (green)
PB (blue)
PR (red)
R (red)
L (white)
Y (green)
PB (blue)
PR (red)
R (red)
L (white)
Connection example for TV models with YPbPr and L/R Audio inputs
CONNECTIONS
How to Connect Your Set
Note: When connecting an external audio device to the TV, set the TV volume to a higher than normal
level, you will then be able to use your device remote control to adjust the volume of the connected
device to suit your requirements.
