Sharp LC-70EQ10U - The Location Putting on the Heat Measure Sheet (LC-60;70 EQ10 U;SQ10 U,15 U,17 U)

LC-60/70EQ10U,SQ10U/15U/17U,TQ15U,UQ17U
4 – 13

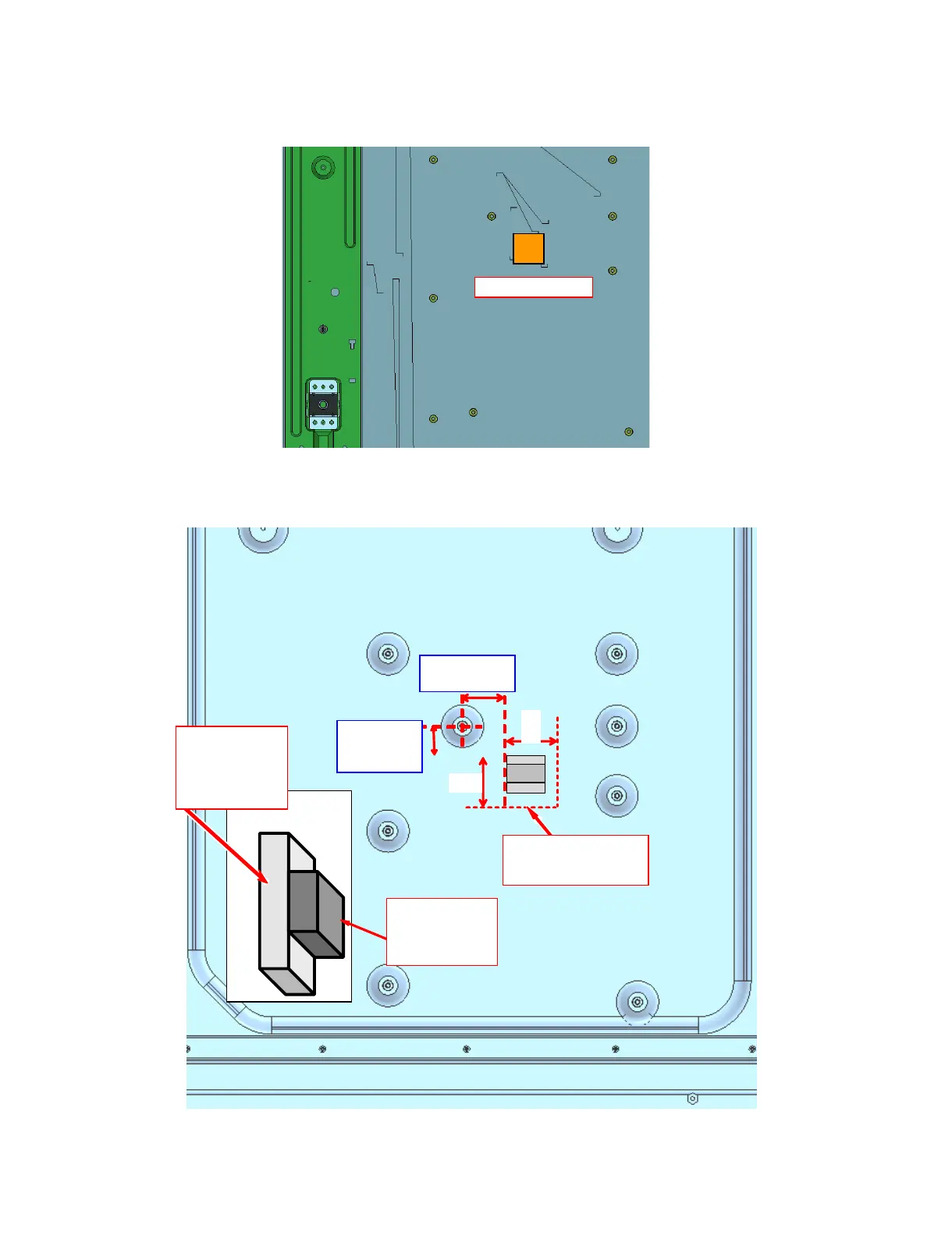

[3] The location putting on the heat measure sheet (LC-60/70EQ10U/SQ10U,15U,17U)
1. MAIN PWB Unit
• LC-60EQ10U/SQ10U,15U,17U
• LC-70EQ10U/SQ10U,15U,17U
PSPAZC805WJKZ
27mm from center
of screw hole.
20mm
from center
of screw hole.
30mm
30mm
(3) Stick ***** x1
(4) Stick ***** x1
PSPA Z C80 5WJKZ x 2
(M &C P WB C OOLE R )
(25x25x8mm)
All ow able torerance is
Right:5mm
Bottom:5mmfromthebasis
(5) Stick *****
PSPA Z C85 4WJKZ
(MA IN-CPU COOLER)
(25x15x8.5mm)
