LC-60LE630U/U(A),6300U/U(A)/U(B),LC-70LE735U
3 – 4

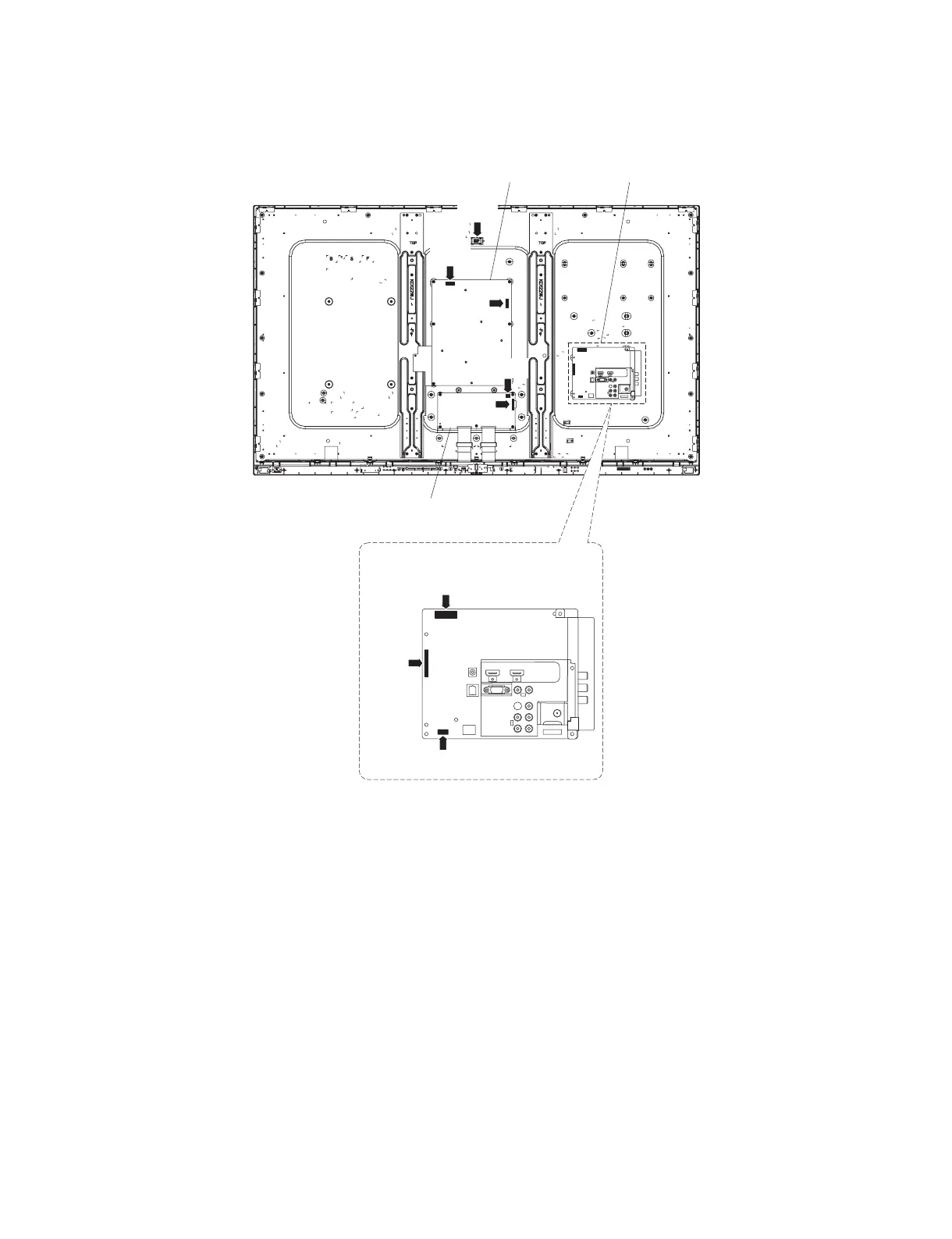

3. Removing of Connectors
1. Disconnect the following connectors from the MAIN Unit. (PD, LW, Cl)
2. Disconnect the following connectors from the POWER/DRIVE Unit. (PD, LA)
3. Disconnect the following connectors from the LCD CONTROL Unit. (LW, PL)
MAIN UnitPOWER/DRIVE Unit
LCD CONTROL Unit
MAIN Unit
[PD]
[CI]
[LW]
[LW]
[PD]
[PL]
[LA]
[LA]
