Sharp LC-80LE650U - Precautions for Assembly (LC-60;70 LE650 U;C6500 U;LE657 U)

LC-60/70/80LE650U/LE657U/C6500U/LE757U/LE857U,60/70LE755U/C7500U
4 – 14
[4] Precautions for assembly (LC-60/70LE650U/C6500U/LE657U)
1. Points to be checked and precautions when servicing the unit
Mount the main PWB Ass’y on the backlight chassis and check that the EMI-prevention parts are not peeled and twisted from the access holes. (The
EMI-prevention parts, conductive nonwoven fabric gaskets, must be seen from the access holes.)
[Countermeasure]
Attach the conductive nonwoven fabric gaskets on the shielded case on the main PWB.

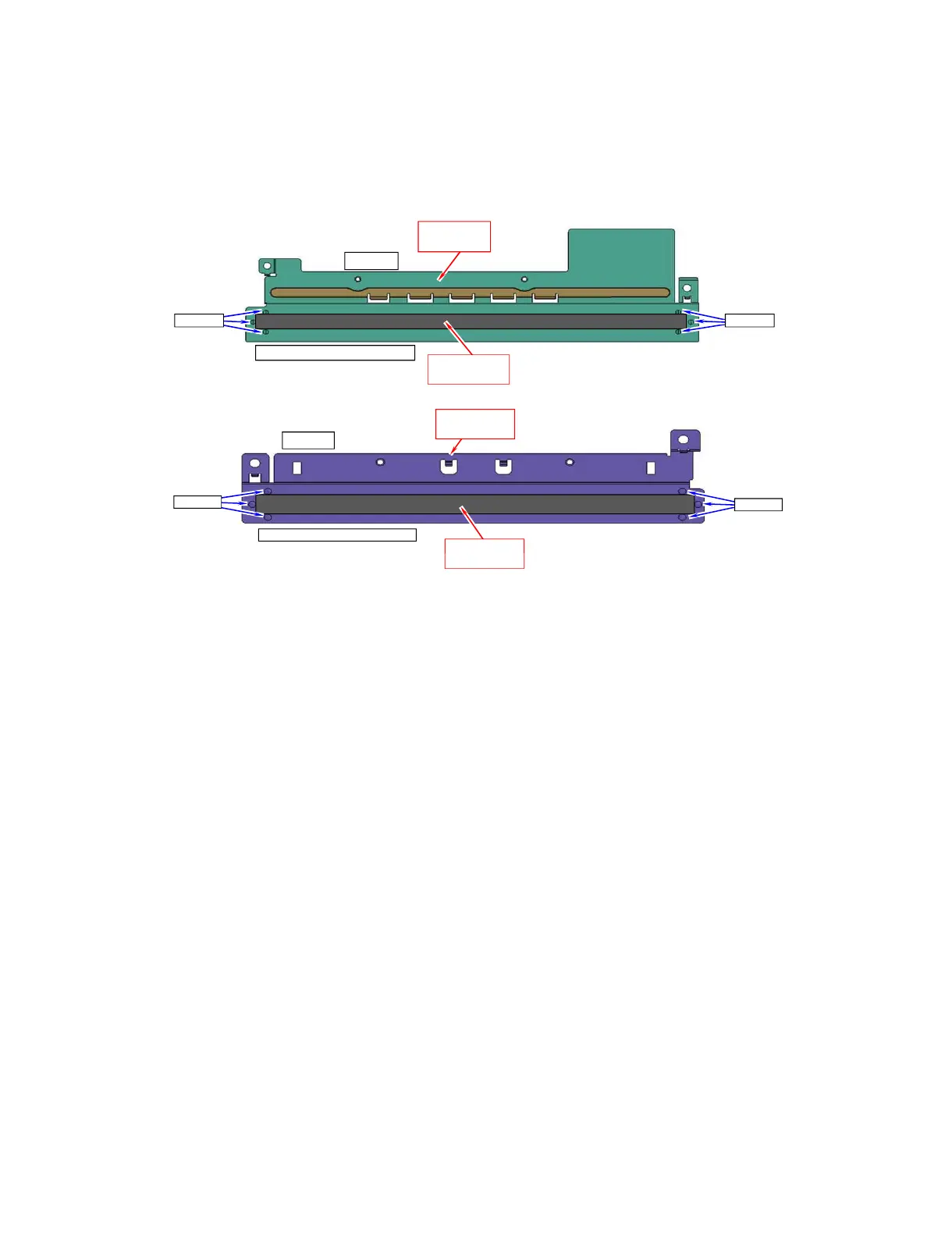

• LC-60LE650U/C6500U/LE657U
.
Back side
Stick a conductor seat in the projection part.
(1) Prepare***
LANGKD145WJFW
TERMINAL SIDE
(2) Stick ***
PSPAZC690WJZZ
CONDUCTR:8x255
Positioning Positioning
Back side
Stick a conductor seat in the projection part.
Positioning
Positioning
(1) Prepare***
LANGKD146WJFW
TERMINAL BOTTOM
(2) Stick ***
PSPAZC691WJZZ
CONDUCTR:8x180
PSPAZC691WJZZ
CONDUCTR:8x180
