[6] REMOVING OF MAJOR PARTS (LC-70LE755U/757U/LE857U/C7500U)

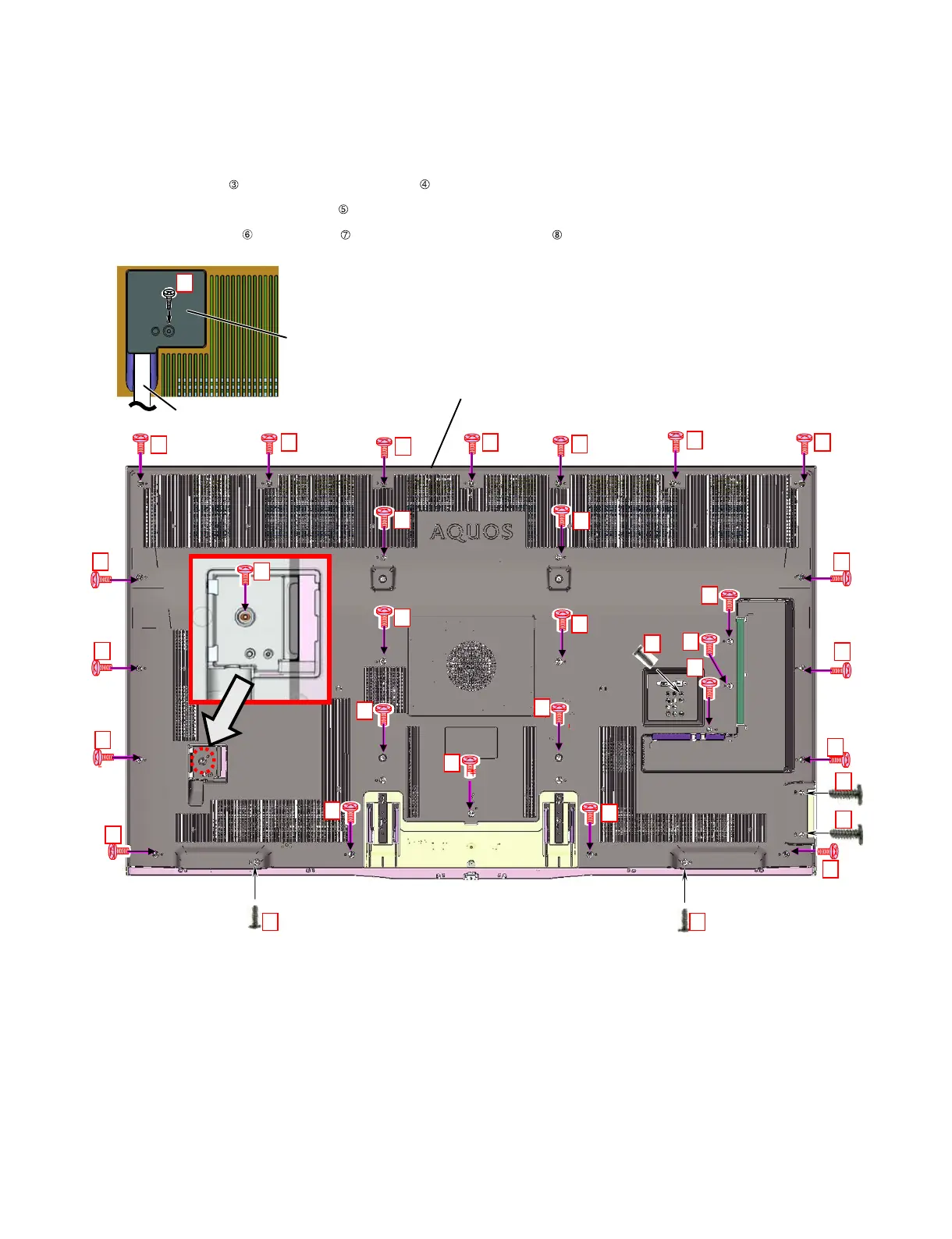

1. Removing of Stand Unit and Rear Cabinet Ass'y.
1. Remove the 1 lock screw and detach the Stand Safety Cover Ass'y. (LC-70LE857U)
Remove the 2 lock screws and detach the Stand Safety Cover Ass'y. (LC-70LE757U/755U/C7500U)
2. Remove the 4 lock screws and detach the Stand Unit.
3. Remove the 1 lock screw and detach the AC Cord Cover .
4. Disconnect AC Wire and detach the AC Cord .
5. Remove the 28 lock screws , 5 lock screws and detach the Rear Cabinet Ass'y .
