[12] Precautions for assembly (LC-80LE650U/657U/757U/857U/C6500U)
1. Points to be checked and precautions when servicing the unit
Mount the main PWB Ass’y on the backlight chassis and check that the EMI-prevention parts are not peeled and twisted from the access holes. (The
EMI-prevention parts, conductive nonwoven fabric gaskets, must be seen from the access holes.)
[Countermeasure]

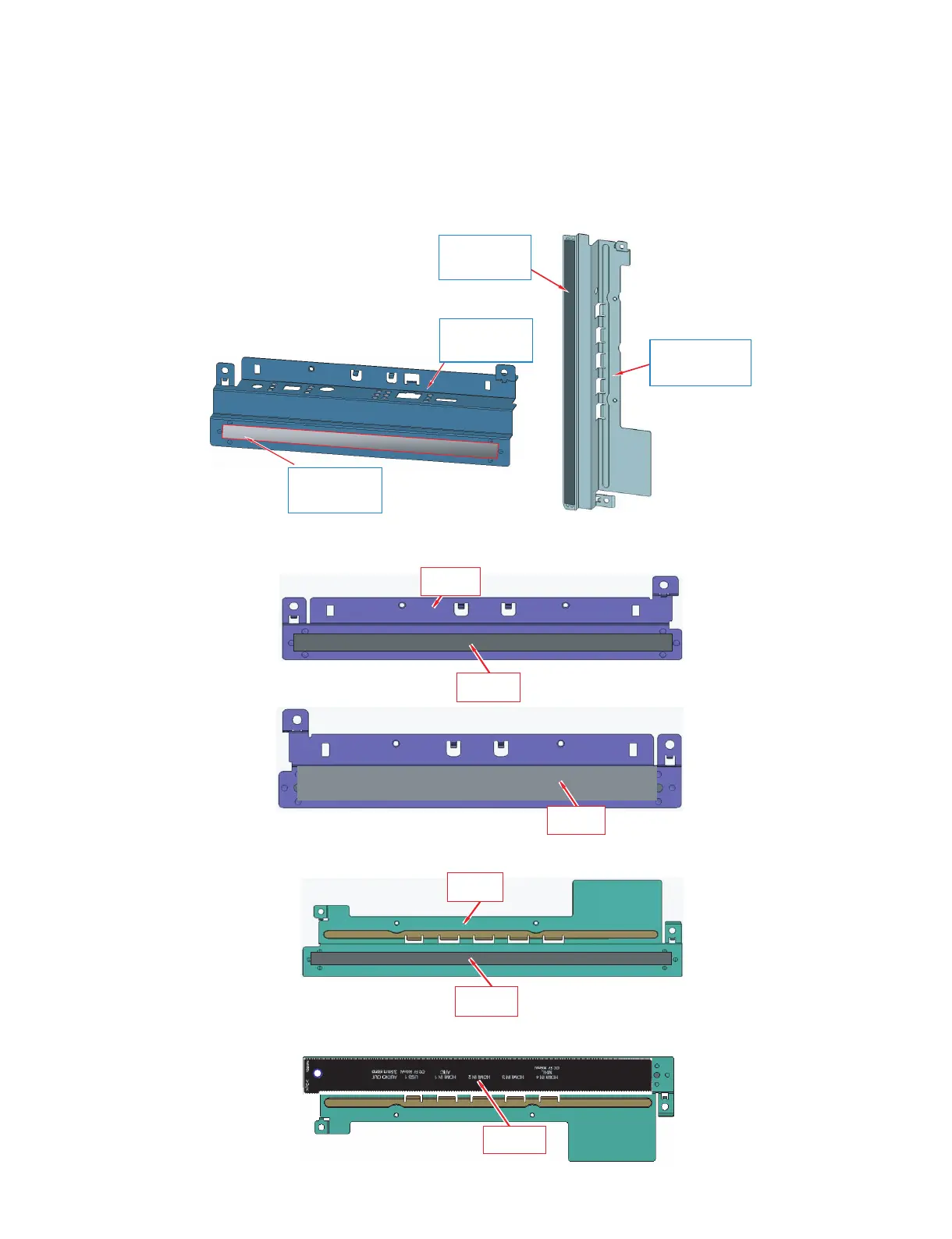

Attach the conductive nonwoven fabric gaskets on the shielded case on the main PWB.
• LC-80LE650U/657U/C6500U
• LC-80LE757U/857U
(1) Prepare*****
LANGKD924WJ3W
(TERM ANG BTM )
(2) Stick *****
PSPAZC691WJZZ
(COND:10X185 )
(2) Stick *****
PSPAZC690WJZZ
(COND:10X260 )
(1) Prepare*****
LANGKD825WJ3W
(TERM ANG SIDE )
(2) Stick***
PSPAZC691WJZZ
CONDUCTR: 8x 180
(3) Stick***
HDECP A 091WJZ Z
DEC SHEET BTM
(1) Prepare***
LAN GKD146WJFW
TER M A NG BOTTOM
(1) Prepare***
LAN GKD145WJFW
TER M A NG SIDE
(2) Stick ***
PSPA Z C69 0W JZ Z
CONDUCTR: 8x 255
(3) Stick *****
HINDPE83 9W JS A
T-LA BEL SIDE
