Sharp LC-90LE657U

LC-90LE657U
4 – 3

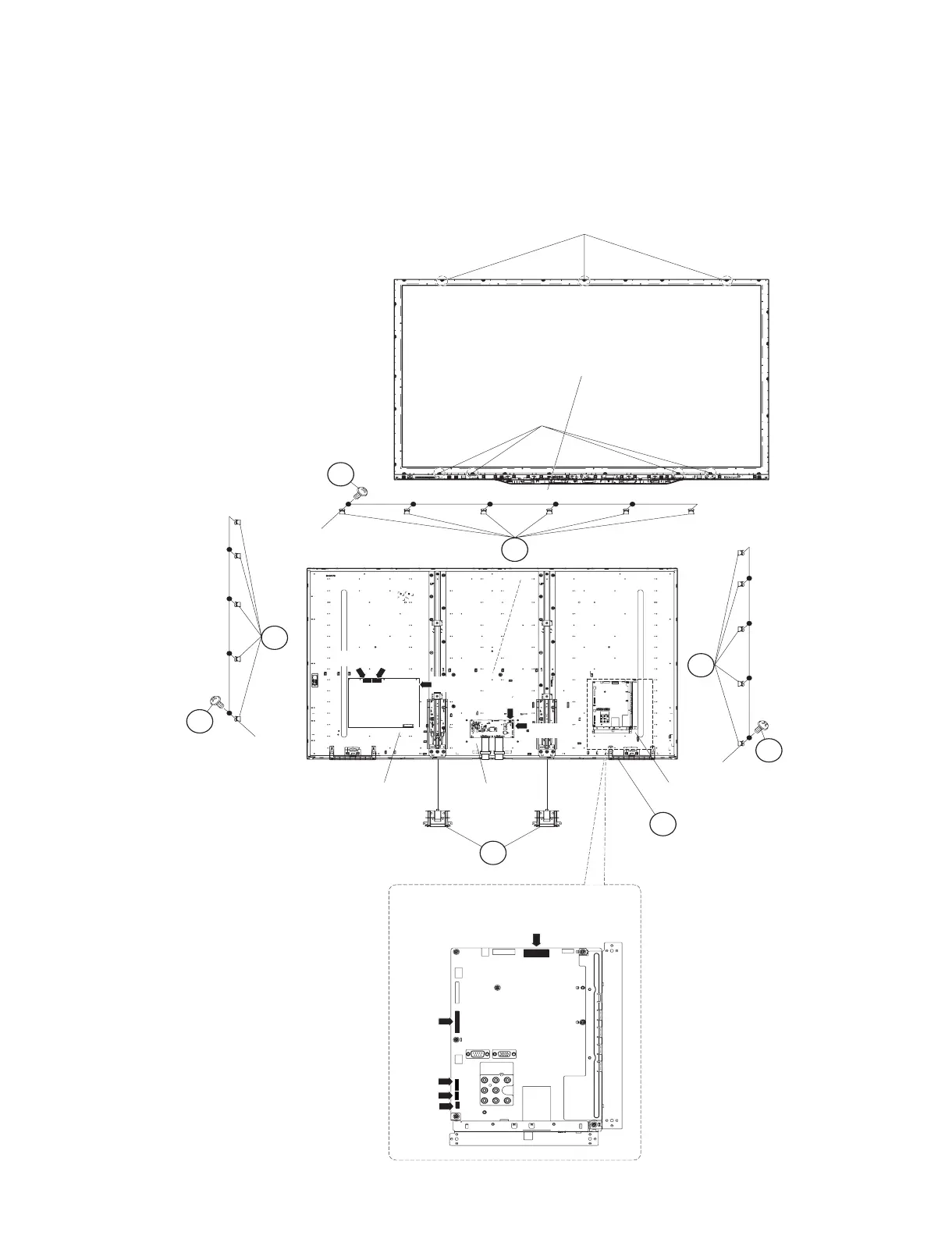

3. Removing of Connectors, 90” LCD Panel Module Unit Ass’y.
1. Disconnect the following connectors from the MAIN Unit. ( LV, PD,IR, BT, UB)
2. Disconnect the following connectors from the POWER/DRIVER Unit. (L1, L2, PD)
3. Disconnect the following connectors from the LCD CONTROL Unit. (PL, LV)
4. Remove the 16 lock screws (1) and detach the 16 Module Fix Angle Ass'y (2).
5. Remove the 7 Hooks and detach the 90" LCD Panel Module Unit Ass'y (3).
6. Remove the 2 Bottom Covers (4).
1
2
2
1
1
2
Module
Fix
Angle
Ass'y
Module
Fix
Angle
Ass'y
Module Fix Angle Ass'y
MAIN Unit
LCD
Control
Unit
POWER/DRIVER
Unit
Hook
Hook
[L1] [L2]
[PD]
[PD]
[PL]
[LV]
3 90" LCD Panel
Module
Unit Ass'y
MAIN Unit
4Bottom cover
[UB]
[IR]
[BT]
[LV]
[PD]
