LC-90LE657U
4 – 4

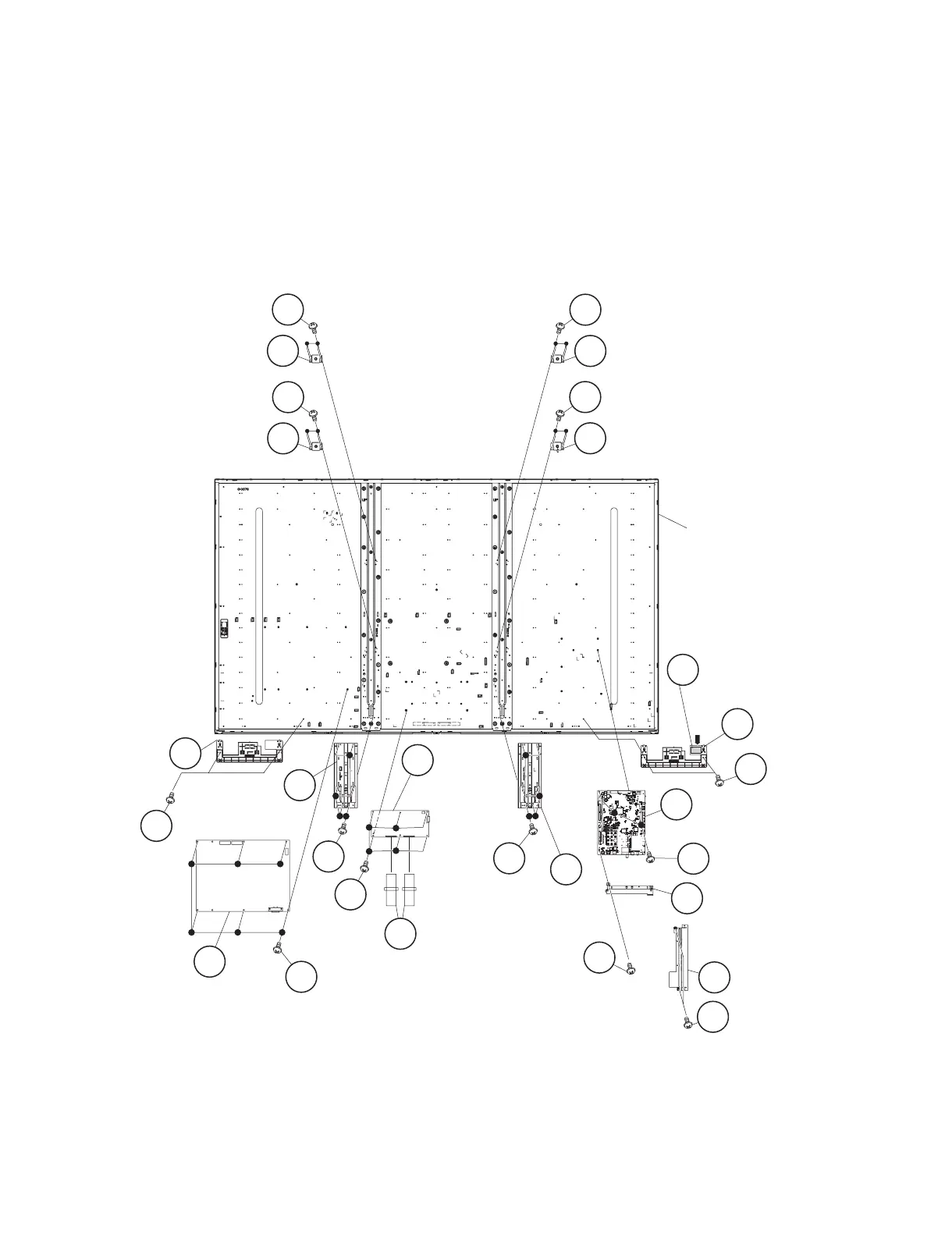

4. Removing of LCD CONTROL Unit, MAIN Unit, POWER/DRIVER Unit.
1. Remove the 2 FFC Cords (1) , 6 lock screws (3) and detach the LCD CONTROL Unit (4).
2. Remove the 8 lock screws (5) and detach the Terminal Angle Side (6) and Terminal Angle Bottom (9).
3. Detach the MAIN Unit (8).
4. Remove the 6 lock screws (10) and detach the POWER/DRIVER Unit (11).
5. Remove 12 lock screws (12) and detach the 2 Stand Angle Ass'y (13).
6. Remove the 16 lock screws (14) and detach the 4 VESA Angle Ass'y (15).
7. Disconnect the BT wire.
8. Detach the BLUETOOTH Unit (18) from the Speaker Holder (17).
9. Remove the 4 lock screws (16) and detach the 2 Speaker Holder (17).
90" LCD Panel
Module Unit
11
10
1
FFC Cord
LCD
CONTROL
Unit
12
3
13
12
POWER/DRIVER
Unit
Stand Angle
Ass'y
13
Stand Angle
Ass'y
8
5
4
Terminal
Angle Bottom
Terminal
Angle Side
5
6
MAIN Unit
BLUETOOTH
Unit
9
14
15
VESA Angle Ass'y
14
15 VESA Angle Ass'y
14
15
VESA Angle
Ass'y
14
15
VESA Angle
Ass'y
16
17
Speaker
Holder
16
17
18
Speaker
Holder
[BT]
