Setting the TV on the Wall(Continue)

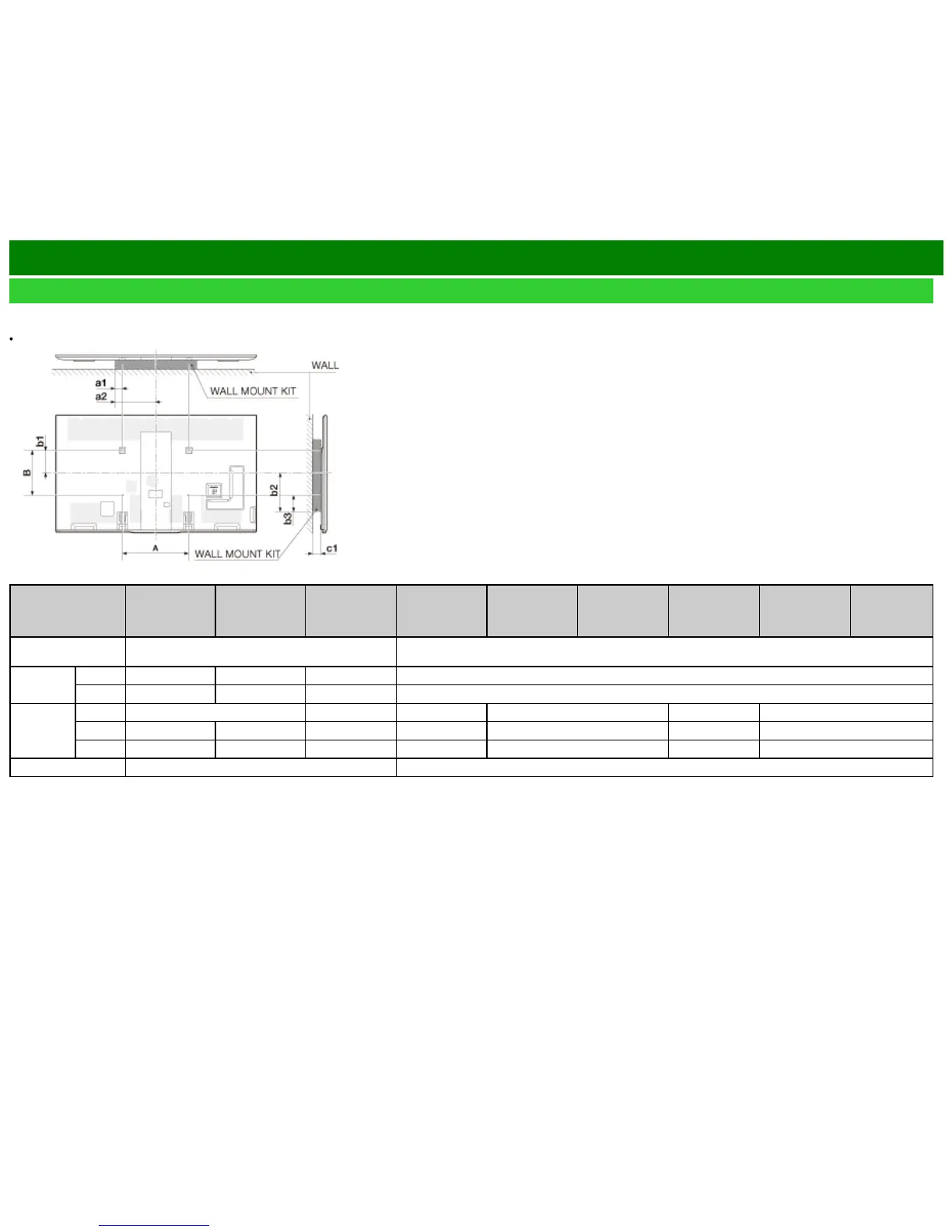

Wall Mount Kit Specifications
Standard dimensions for wall mount kits are shown below.
The illustration is based on the LC-80UQ17U model as an example.
LC-90LE657U
LC-80LE642U
LC-80UQ17U LC-80LE650U
LC-70UQ17U
LC-70TQ15U
LC-70SQ17U
LC-70SQ15U
LC-70SQ10U
LC-70EQ10U
LC-70LE650U
LC-70C6500U
LC-60UQ17U
LC-60TQ15U
LC-60SQ17U
LC-60SQ15U
LC-60SQ10U
LC-60EQ10U
LC-60LE650U
LC-60C6500U
VESA screw
hole specs (A-B)
23 5/8 (600) - 15 3/4 (400) 15 3/4 (400) - 15 3/4(400)
Width
a1 1 37/64 (40) 2 61/64 (75) 1 37/64 (40)
a2 13 25/64 (340) 14 49/64 (375) 13 25/64 (340)
Height
b1 7 7/8 (200) 10 41/64 (270) 7 7/8 (200) 7 31/64 (190) 7 7/8 (200) 9 1/16 (230)
b2 14 49/64 (375) 13 19/32 (345) 11 1/32 (280) 14 11/64 (360) 10 41/64 (270) 12 39/64 (320) 9 1/16 (230)
b3 6 57/64 (175) 5 23/32 (145) 5 59/64 (150) 6 5/16 (160) 2 3/8 (60) 4 47/64 (120) 2 3/8 (60)
c1 3 5/32 (80) 2 49/64 (70)
a1: Maximum distance from the mounting hole
a2: Maximum distance from the TV's center
b1: Distance between the TV's center and the mounting hole
b2: Maximum distance from the TV's center
b3: Maximum distance from the mounting hole
c1: Minimum gap

Sharp LC-90LE657U Specifications

General

Display diagonal	90 \
Display brightness	- cd/m²
Native refresh rate	120 Hz
LED backlighting type	Full-Array
Supported video modes	1080p
Contrast ratio (dynamic)	8000000:1
Display diagonal (metric)	228.64 cm
Screen format adjustments	16:9
Supported graphics resolutions	1920 x 1080 (HD 1080)
Motion interpolation technology	AquoMotion 240
3D	Yes
3D glasses quantity	2
Tuner type	Analog & digital
Analog signal format system	NTSC
Digital signal format system	ATSC
RMS rated power	20 W
DVI port	No
Headphone outputs	-
HDMI ports quantity	4
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	1
Wi-Fi standards	802.11a, 802.11b, 802.11g
Smart modes	Game
Lifestyle apps	Skype
Number of OSD languages	3
On Screen Display (OSD) languages	ENG, ESP, FRE
Product color	Black
Panel mounting interface	600 x 400 mm
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	- W
Power consumption (typical)	381 W
Package depth	335 mm
Package width	2237 mm
Package height	1461 mm
Package weight	92500 g

Weight and Dimensions

Depth (with stand)	434 mm
Height (with stand)	1243 mm
Weight (with stand)	68000 g
Depth (without stand)	116 mm
Width (without stand)	2054 mm
Height (without stand)	1211 mm
Weight (without stand)	64000 g
