Preparation
-Connections-
Connections
You can record your favourite CDs or tapes to MD.
When recording, it is recommended to use the AC adaptor and also install the battery. Should the power failure occur,
the power source would be automatically switched to the battery.
LEFT
RIGHT
LEFT
RIGHT
DIGITAL OUT
DIGITAL OUT
To the wall socket
Red : to right
White : to left
Supplied
connection
cable

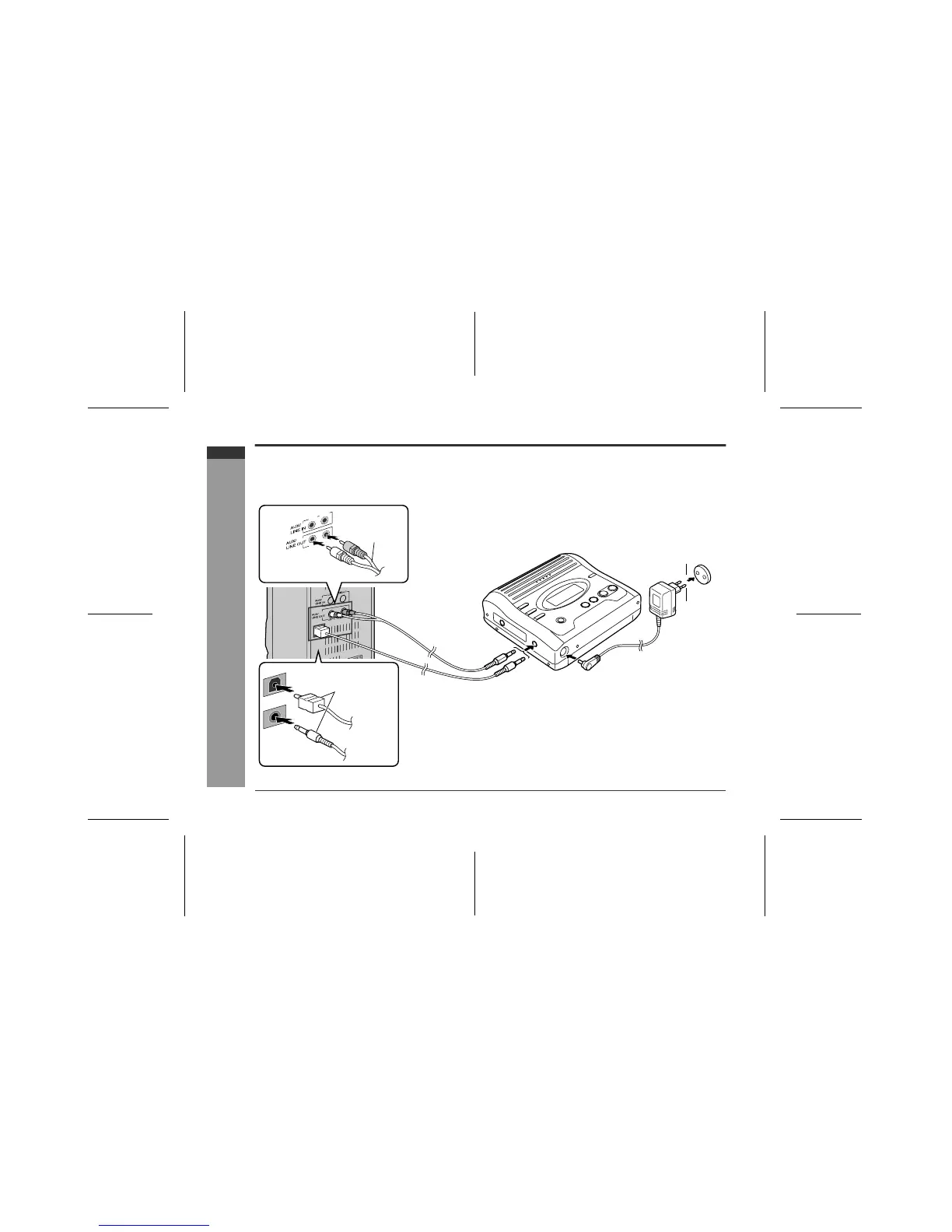

■ To connect to a stereo system with "LINE OUT" or
"AUDIO OUT" sockets (analogue connection)
If the audio system has only one pair of sockets, they
are usually for input only and recording via this con-
nection is not possible.
AC
230V,
50/60 Hz
To the DC IN
5V socket
To the OPTICAL/
LINE IN socket
Separately available
connection cable
AD-M1DC
AD-M2DC
■ To connect to a stereo system with a "DIGITAL OUT" or
"OPTICAL OUT" socket (digital connection)
When compared with an analogue connection recording, using a digi-
tal connection will give higher quality.
Some audio systems do not have a DIGITAL OUT socket.
Check before connecting.
