MD-MT866H/MD-MT866W
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER TO
THE OPERATION MANUAL.
Specifications for this model are subject to change without prior
notice

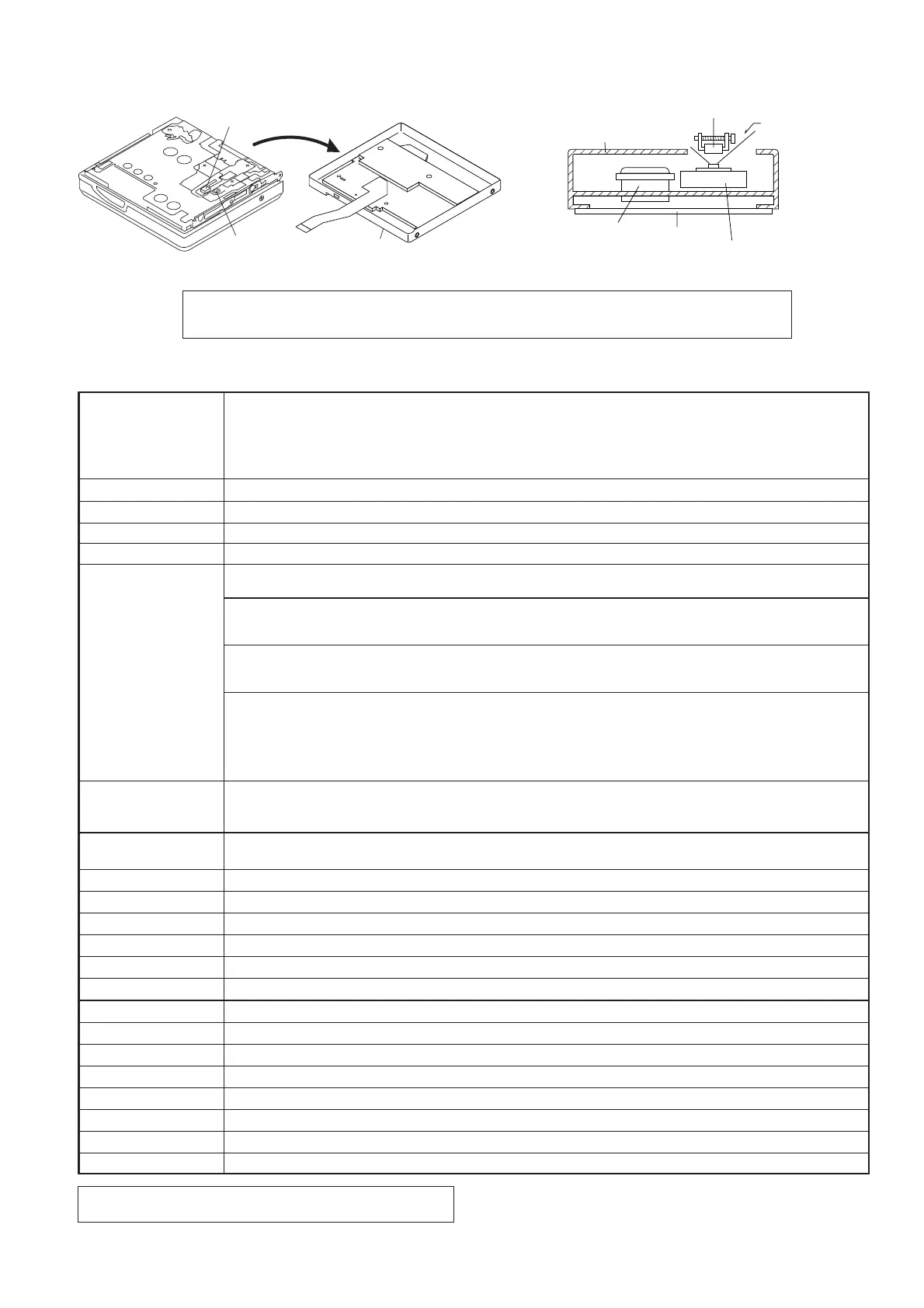

Magnet head
Optical pickup
Top Cabinet
Magnet Head
Laser Beam
Optical Pick-Up
Main PWB
Spindle motor
Mechanism
Chassis
Figure 3-1 Figure 3-2
Power source DC 1.2V: Rechargeable Nickel-Metal Hydride battery (AD-N55BT) x 1
DC 5V: AC adaptor (AC 220 - 230V, 50/60 Hz) [MD-MT866H(S) Except for U.K.]
DC 5V: AC adaptor (AC 230 - 240V, 50/60 Hz) [MD-MT866H(S) for U.K.]
DC 5V: AC adaptor (AC 110 - 240V, 50/60 Hz) [MD-MT866W(S)]
DC 1.5V: Commercially available, “AA” size (LR6), alkaline battery x 1
DC 1.5V: Separately available car adaptor, AD-CA55X (for cars with a 12-24V DC negative earth electrical system)
Power consumption 7 W (AC adaptor) [MD-MT866H(S)]
Power consumption 0.15 A (AC adaptor) [MD-MT866W(S)]
Output power RMS; 10 mW (5 mW + 5 mW) (0.2% T.H.D.)
Charging time Approx. 3.5 hours
Battery life When using the rechargeable battery Continuous recording: Approx. 6.5 hours
(fully charged) included with the unit Continuous play: Approx. 12 hours
When using one, commercially available, high Continuous recording: Approx. 6 hours
capacity, “AA” size (LR6), alkaline battery (The Continuous play: Approx. 18 hours
rechargeable battery is in the unit, discharged)
When using one, commercially available, high Continuous recording: Approx.
15.5
hours
capacity, “AA” size (LR6), alkaline battery with Continuous play: Approx. 30 hours
the rechargeable battery (fully charged)
●
The continuous recording time is for analogue inputs when the volume level is set to “VOL 0”
(LCD edge light off)
.
● The continuous play time shows the value when the volume level is set to “VOL 15”
(LCD edge light off)
.
● The above values are the standard values when the unit is charged and used at an ambient temperature of 20°C
(68°F).
● The operating time when using an alkaline battery may be different, depending on the type and manufacturer of
the battery, and on the operating temperature.
Input sensitivity MIC H: reference input level 0.25 mV input impedance 10 k ohms
MIC L: reference input level 2.5 mV input impedance 10 k ohms
LINE: reference input level 100 mV input impedance 20 k ohms
Output level Earphones: maximum output level 5 mW + 5 mW load impedance 32 ohms
LINE: specified output 250 mV (-12 dB) load impedance 10 k ohms
Dimensions Width: 72.0 mm (2-27/32”) Height: 19.5 mm (25/32”) Depth: 78.9 mm (3-1/8”)
Weight 137 g (0.30 lbs.) with rechargeable battery
Input socket Line/optical digital, microphone (powered by the main unit)
Output socket Earphones (impedance: 32 ohms)/remote control unit
Type Portable MiniDisc recorder
Signal readout Non-contact, 3-beam semi-conductor laser pick-up
Audio channels Stereo 2 channels/monaural (long-play mode) 1 channel
Frequency response 20 – 20,000 Hz (± 3 dB)
Rotation speed Approx. 400 – 1,350 rpm
Error correction ACIRC (Advanced Cross Interleave Reed-Solomon Code)
Coding ATRAC (Adaptive Transform Acoustic Coding), 24-bit computed type
Recording method Magnetic modulation overwrite method
Sampling frequency 44.1 kHz (32 kHz and 48 kHz signals are converted to 44.1 kHz, and then recorded.)
Wow and flutter Unmeasurable (less than ±0.001% W. peak)
