Sharp MD-MT866H Service Manual

– 12 –
MD-MT866H/MD-MT866W
1 Bottom Cabinet 1. Screw ..................... (A1) x5 12-1
2 Top Cabinet 1. Open the Top cabinet. 12-1
2. Screw ..................... (B1) x4
3. Flexible PWB.......... (B2) x1 12-2
3 Main PWB 1. Open the Battery Cover.
2. Screw .................... (C1) x1 12-2
3. Flexible PWB......... (C2) x2
4 Mechanism Unit 1. Raise the rear part, and 12-3
remove in the arrow direction.
5 LCD PWB 1. hook........................(D1) x4 12-4
2. Screw...................... (D2) x4
DISASSEMBLY
Cares before disassembling
When assembling the machine after disassembling or
repair, observe the following requirements so as to ensure
safety and performance.
1. Remove the batteries from the machine, and take out the
mini-disc.
2. When assembling after repair, be sure to position the
wires in the same location.
Use the specified screws to fix the cabinet and the
mechanism unit. The use of the screws with length other
than specified may cause contact with the mechanism
unit resulting in malfunction.
3. When repairing, pay close attention so not to damage the
IC from static electricity.
REMOVAL
PROCEDURE
STEP
FIGURE

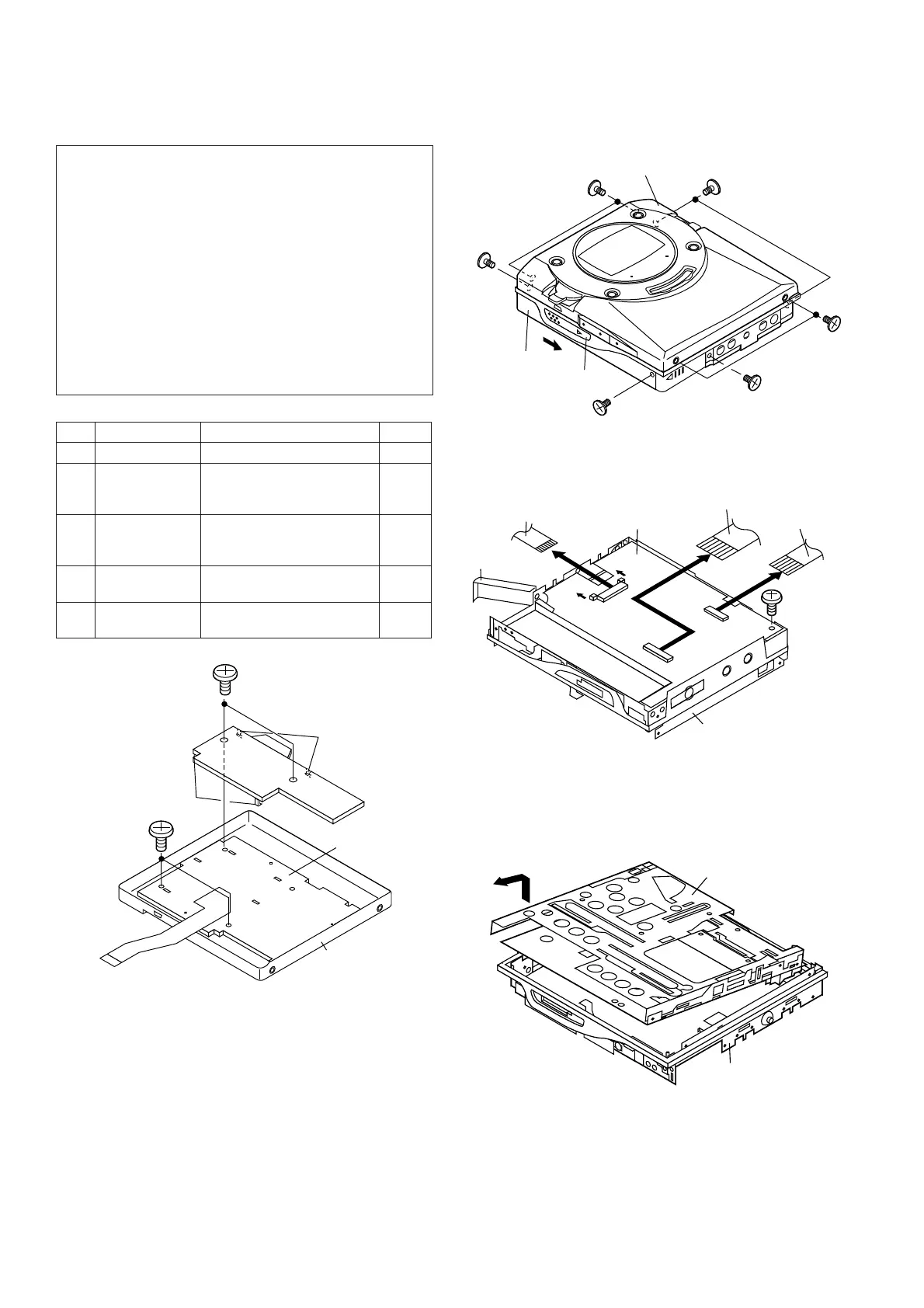

Figure 12-1
Figure 12-2
Figure 12-4
Caution:
Carefully handle the main PWB and flexible PWB. After removing the
flexible PWB (1*) for the optical pickup from the connector, do not
touch directly the front end of flexible PWB with your hand so as to
prevent damage of optical pickup by static electricity.
OPENOPEN
OPEN
Top Cabinet
Bottom
Cabinet
Eject
Knob
(B1)x2
ø1.4x2mm
(B1)x2
ø1.4x2mm
(A1)x2
ø1.4x2mm
(A1)x1
ø1.4x2mm
(A1)x1
ø1.4x2mm
(A1)x2
ø1.4x2mm
(C1)x1
ø1.4x2mm
(C2)x1*
(C2)x1
(B2)x1
pull
pull
Battery
Cover
Main
Frame Unit
Main PWB
Main Frame Unit
MD Mechanism
Figure 12-3
(D2)x2
ø1.4x1.5mm
(D2)x2
ø1.4x1.5mm
(D1)x2
(D1)x2
LCD PWB
Top Cabinet
