– 28 –
MD-MT866H/MD-MT866W
SW401 EJECT OFF—ON
SW901 LID DETECTION OFF—ON
SWA01 RECORD OFF—ON
SWA02 PLAY OFF—ON
SWA03 BASS OFF—ON
SWA04 EDIT OFF—ON
SWA05 VOLUME DOWN OFF—ON
SWA06 DISPLAY OFF—ON
SWA07 VOLUME UP OFF—ON
SWA08 MODE OFF—ON
SWA09 FAST REVERSE OFF—ON
SWA10 ENTER OFF—ON
SWA11 FAST FORWARD OFF—ON
SWA12 STOP OFF—ON
SWA13 OPEN OFF—ON
NOTES ON SCHEMATIC DIAGRAM
• Resistor:
To differentiate the units of resistors, such symbol as K and
M are used: the symbol K means 1000 ohm and the symbol
M means 1000 kohm and the resistor without any symbol is
ohm-type resistor. Besides, the one with “Fusible” is a fuse
type.
• Capacitor:
To indicate the unit of capacitor, a symbol P is used: this
symbol P means pico-farad and the unit of the capacitor
without such a symbol is microfarad. As to electrolytic
capacitor, the expression “capacitance/withstand voltage” is
used.
(CH), (TH), (RH), (UJ): Temperature compensation
(ML): Mylar type
• The indicated voltage in each section is the one measured
by Digital Multimeter between such a section and the chas-
sis with no signal given.
• Parts marked with “ ” ( ) are important for
maintaining the safety of the set. Be sure to replace these
parts with specified ones for maintaining the safety and
performance of the set.
POSITION
REF. NO
DESCRIPTION
2SA17457
2SA1832 GR
2SD1979 S
DTC144 EE
RN1104
RN1444 A
UN5210
TOP
VIEW
1SS361
D1FH3
F10J2E
RB521S30
TOP VIEW
B
(G)
(3)
E
(S)
1
C
(D)
(2)
SBE803
TOP VIEW
1SS361
TOP VIEW
RB731U
TOP VIEW
1
2
3
4
5
6
HD1C01FU
1
2
3
6
7
8
4
5
FTD2017
TOP VIEW
1
2
3
4
5
6
HD1C01FU
1
2
3
4
HRB0103B
TOP VIEW

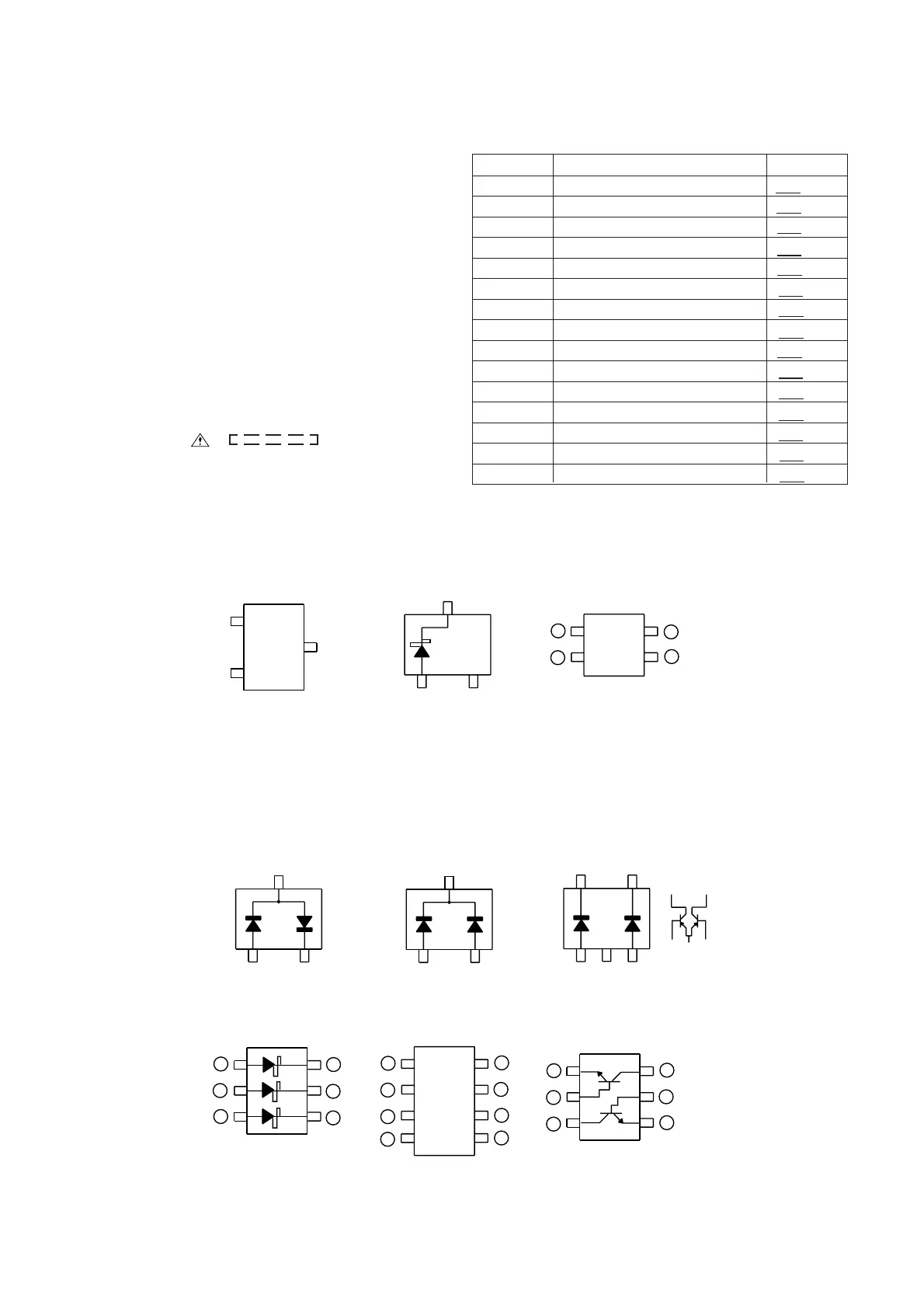

TYPES OF TRANSISTOR AND DIODE
