MD-MT866H/MD-MT866W

– 27 –

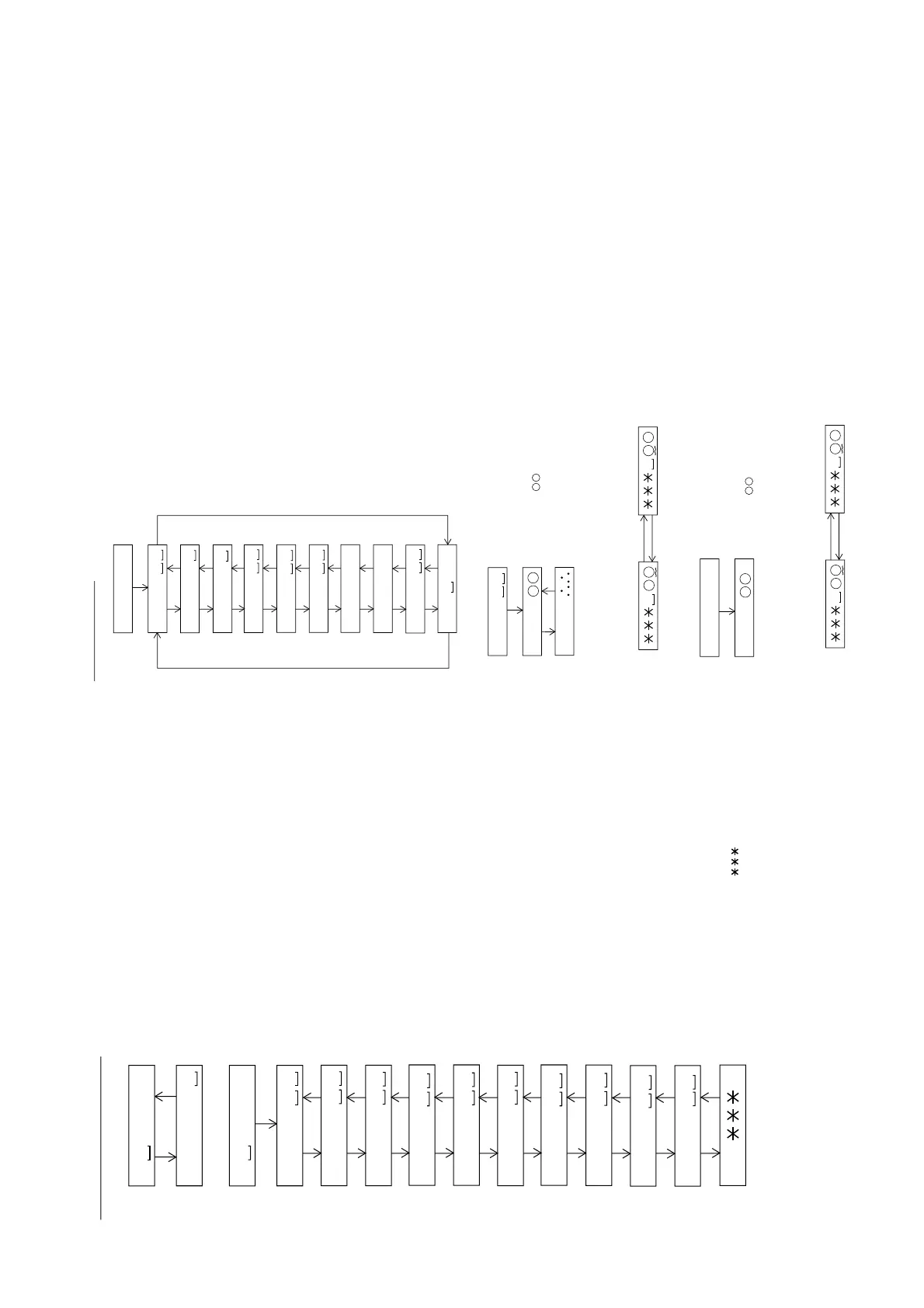

: Error history indication menu

: Error history 0 indication

$ $ : Error code

: Error history 1 indication

$ $ : Error code

: Error history 2 indication

$ $ : Error code

: Error history 3 indication

$ $ : Error code

: Error history 4 indication

$ $ : Error code

: Error history 5 indication

$ $ : Error code

: Error history 6 indication

$ $ : Error code

: Error history 7 indication

$ $ : Error code

: Error history 8 indication

$ $ : Error code

: Error history 9 indication

$ $ : Error code

PLAY

E D A T A

Error History Display

E 0 $ $

E 1 $ $

: Error history indication menu

: Error history clear

DISP

E D A T A

C L E A R

SKIP UP SKIP DOWN

E 2 $ $

SKIP UP SKIP DOWN

E 3 $ $

SKIP UP SKIP DOWN

E 4 $ $

SKIP UP SKIP DOWN

E 5 $ $

SKIP UP SKIP DOWN

E 6 $ $

SKIP UP SKIP DOWN

E 7 $ $

SKIP UP SKIP DOWN

E 8 $ $

SKIP UP SKIP DOWN

E 9 $ $

SKIP UP SKIP DOWN

• Error history clear

• Error history indication

* When the [STOP] button is pressed in specific menu, the "TEST MODE STOP" state is set.

: Total recording time

R C

SKIP UP SKIP DOWN

After one second

: EEPROM setting menu

: Focus setting menu

: Spin setting menu

: Tracking setting menu

: Sled setting menu

: BASS setting menu

: TEMP setting menu

: Adjustment setting menu

: Digital EQ setting menu

: Control setting menu

PLAY

E E P R O M

EEPROM Setting

F o c u s

S p i n

SKIP UP SKIP DOWN

T r a c k

SKIP UP SKIP DOWN

S l e d

SKIP UP SKIP DOWN

B a s s

SKIP UP SKIP DOWN

T e m p

SKIP UP SKIP DOWN

A D J S E T

SKIP UP SKIP DOWN

D E Q S E T

SKIP UP SKIP DOWN

C T R L

SKIP UP SKIP DOWN

SKIP DOWN

* When the [STOP] button is pressed in specific menu, the "TEST MODE STOP" state is set.

• Menu transition

L S I I F

SKIP UP SKIP DOWN

SKIP UP

: Temp setting menu

: TEMP stndard value setup

: Setup value

$ $ : Temperature code

: TEMP A/D input value indication

PLAY

T e m p

• TEMP Setting

T M $ $

T P i n

SKIP UP SKIP DOWN

* When the [STOP] button is pressed in specific menu, the "TEST MODE STOP" state is set.

* When the [DISP] button operation is performed in the specific state, the menu changes to

"TEMP SETTING menu".

* When the [P-MODE] button is pressed in each state, the set digit is changed.

1st digit (initial value) 2nd digit

* When the [STOP] button is pressed in specific menu, the "TEST MODE STOP" state is set.

* When the [DISP] button operation is performed in the specific state, the menu changes to

"TEMP SETTING menu".

* In the specific setting display state the setting change digit changes when the [P-MODE]

button is pressed.

1st digit (initial value) 2nd digit

P-MODE

* In the specific state the setting changes in the range of "0h to Fh" when the [VOL UP/DOWN]

button is pressed.

P-MODE

* In the specific state the setting changes in the range of "0h to Fh" when the [VOL UP/DOWN]

button is pressed.

: Each setup menu except for TEMP

: Each setup item except for TEMP

: Setup value

PLAY

Each setup menu

• Setup except for TEMP

Setup item

: LSI setting TEST mode menu
