MD-MT866H/MD-MT866W
A
B
C
D
E
F
G
H
1
23
456

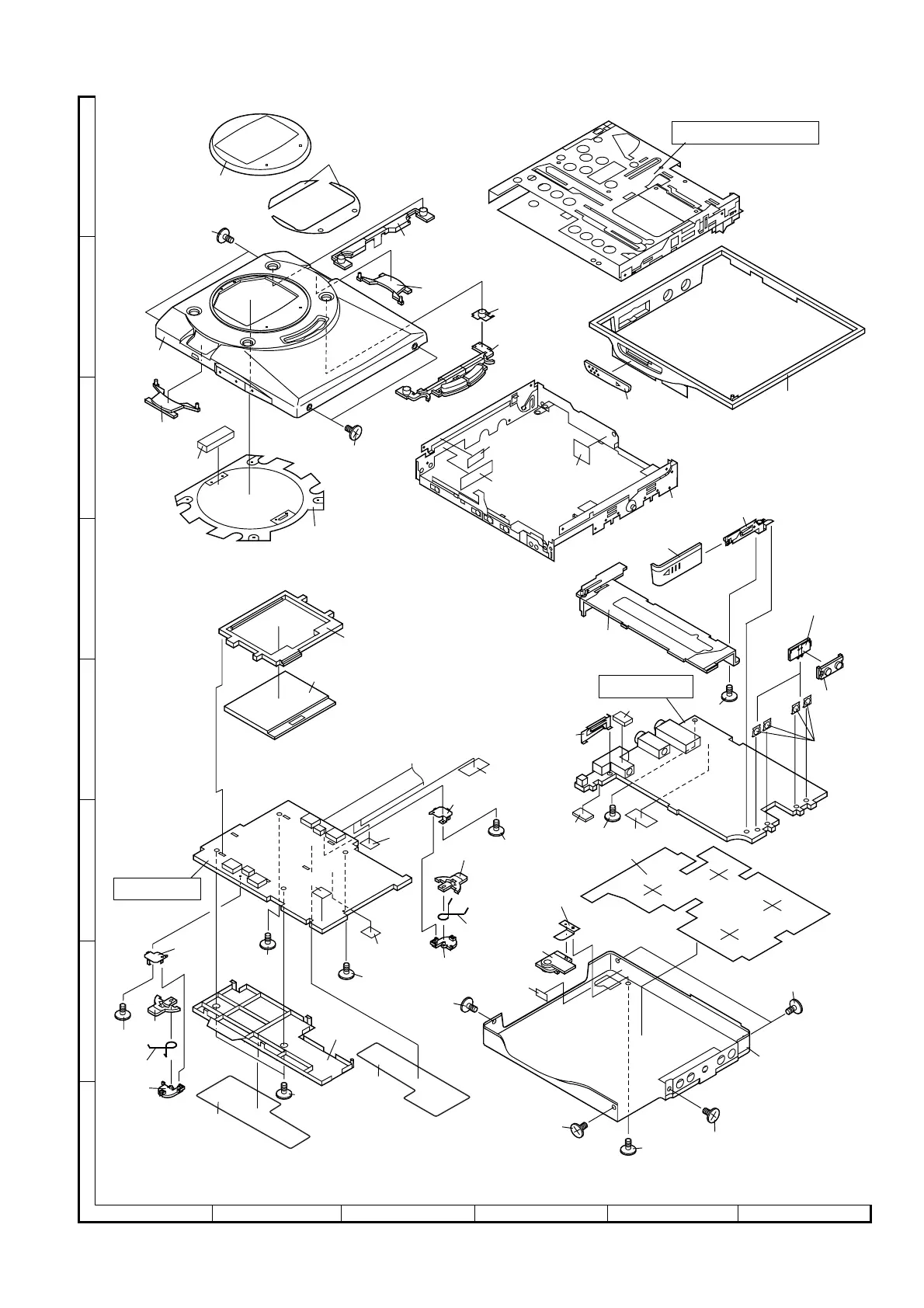

Figure 6 CABINET EXPLODED VIEW
– 6 –
OPEN
OPEN
OPEN
OPEN
205
206
201
208
210
211
247
209
214
215
216
220
221
222
223
LCD PWB
219
220
221
222
223
MD MECHANISM
203
224
227x2
226x2
228x4
230
231
229
232
233
234
235
202
MAIN PWB
604x2
604x2
241
242
246
204
238
237
243
603
602
604
602
603x2
602
604
601
604
604x2
242
602
244
601
250
249
251
253
252
248
52
54
Table of Contents
Table of Contents
1
Safety Precaution for Service Manual
2
Specifications
3
Names of Parts
4
Operation Manual
6
Disassembly
12
Removing and Reinstalling the Main Parts
13
Adjustment
14
Notes on Schematic Diagram
28
Types of Transistor and Diode
28
Block Diagram
29
Schematic Diagram
30
Wiring Side of P.w.board
32
Voltage
36
Waveforms of MD Circuit
37
Troubleshooting
38
Function Table of IC
41
