Sharp MX-2314N Installation Manual

MX-3114N MX-2314N/2614N/3114N (MAIN UNIT) 2 – 11

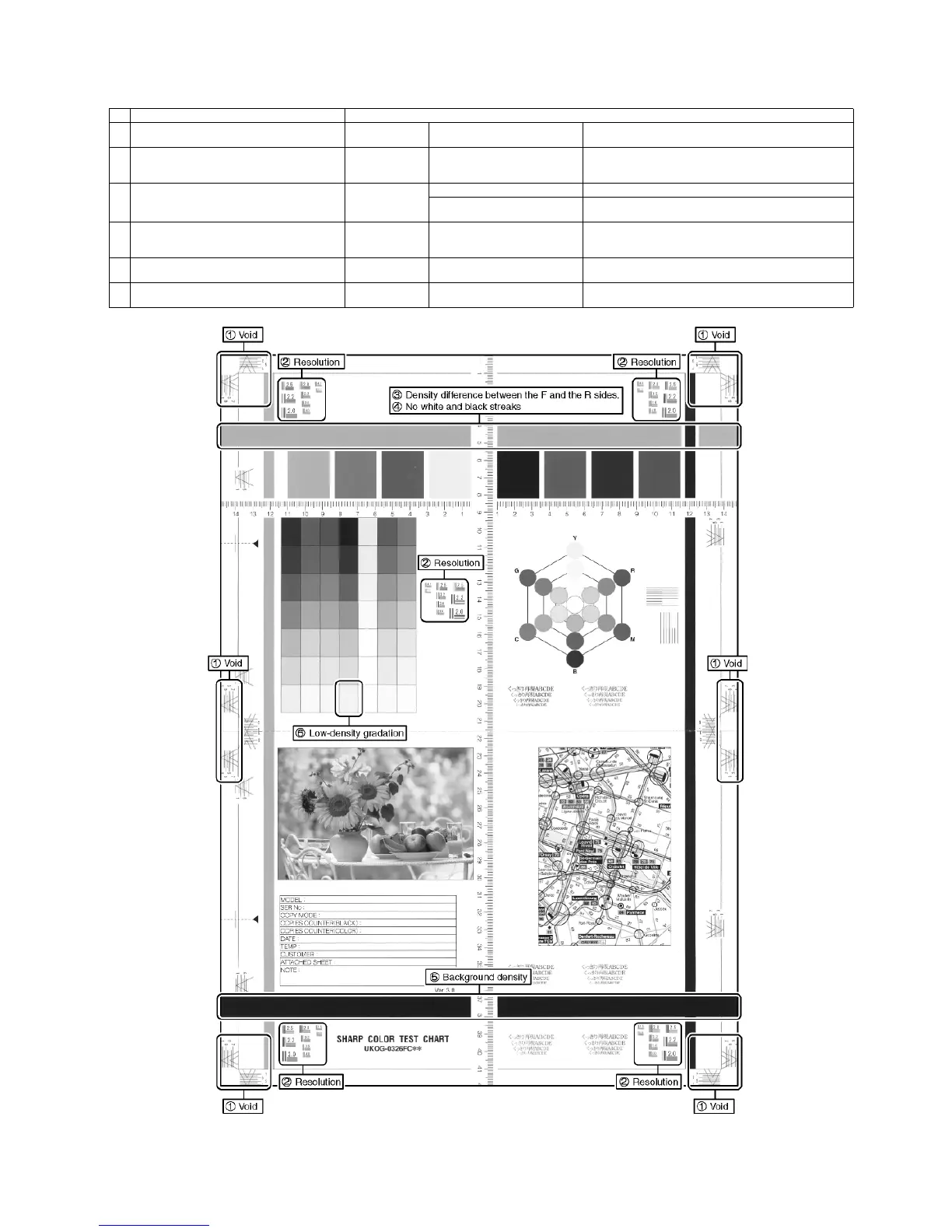

b. Monochrome copy check items (Check to confirm the following:)
Color copy check items Adjustment items
1
There are 12 void areas. Main machine
S/M
ADJ3-A to D Sim50-28
2
The resolution of 5.0 (5 points) can be seen. Main machine
S/M
Check the dirtof the OC glass
Clean the OC glassClean the
mirror of the scannerADJ9-D16
Sim46-54Copy gamma, gray balance adjustment for each
dither (Automatic adjustment)
3
The color difference in gray balance between
the F and th sides is not so great.
Main machine
S/M
ADJ22-A Sim61-11
ADJ9-B Sim46-74Copy/Printer color balance and density adjustment
(Automatic adjustment) (Basic adjustment)
4
There are no white and black streaks. Clean the mirror of the LSU.
Clean the Main ChargerClean the
mirror of the scanner
5
The background density is not so light. Main machine
S/M
ADJ9-D16 Sim46-54Copy/Printer gray balance and density adjustment
(Automatic adjustment) (Basic adjustment)
6
The black low-density gradation is copied
slightly.
Main machine
S/M
ADJ9-B Sim46-74Copy/Printer color balance and density adjustment
(Automatic adjustment) (Basic adjustment)

Sharp MX-2314N Specifications

General

Print Technology	Laser
Print Speed	23 ppm
Print Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Copy Speed	23 cpm
Copy Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Duplex Printing	Yes
Connectivity	USB, Ethernet
Functions	Print, Copy, Scan, Fax
Paper Size	A3, A4, A5, B4, B5
Max Paper Size	A3
Original Size	A3
