Sharp MX-2314N Installation Manual

MX-3114N MX-2314N/2614N/3114N (MAIN UNIT) 2 – 2
2. Installation
When an optional paper feed desk is connected to the machine,
unpack and install the paper feed desk, then unpack the machine.
Place the machine on the option desk securely, and perform the
installing procedures of the machine.
Place the machine on the optional desk firmly and secure.

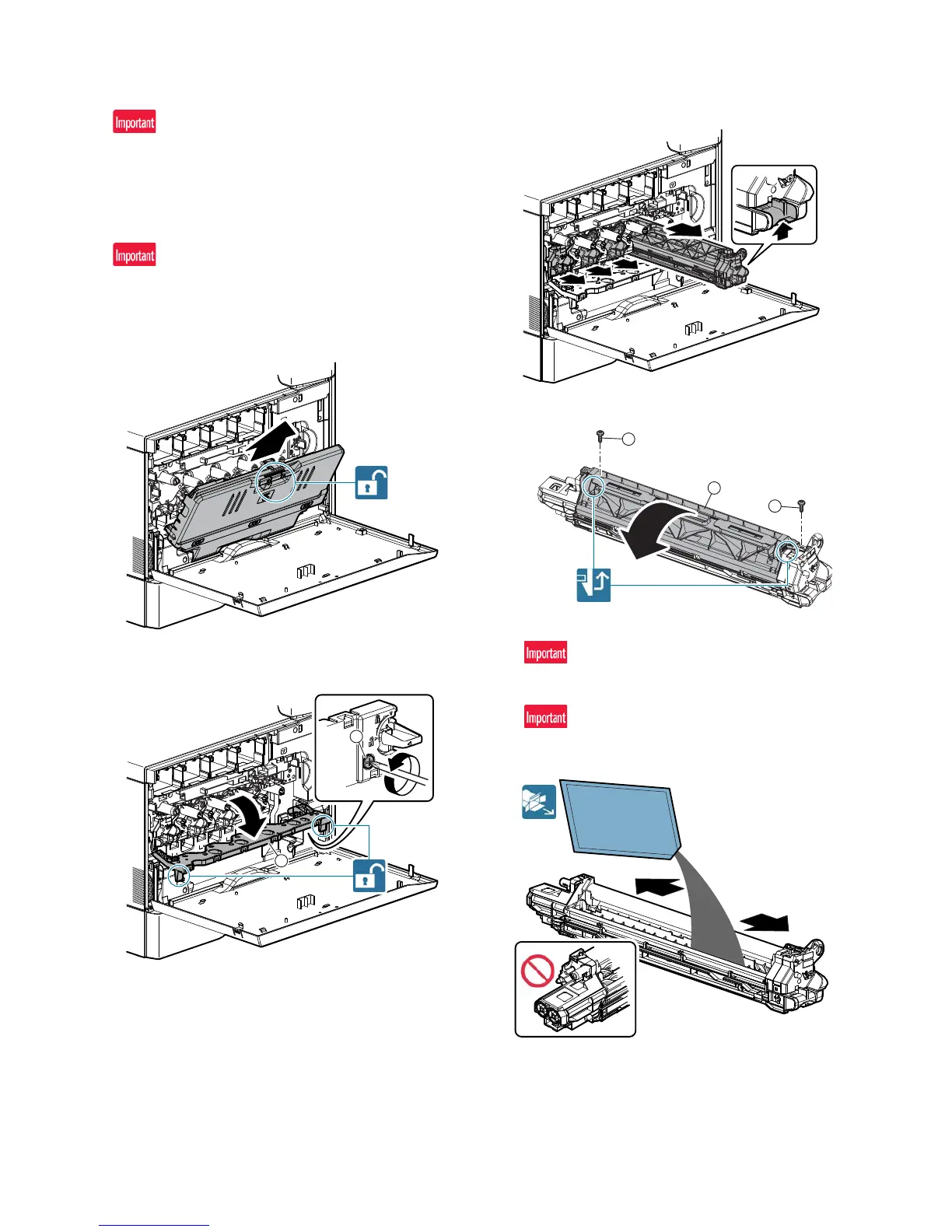

A. Developer installation
Be careful not to leave fingerprints or oily dirt on the DV roller sur-
face.
1) Open the front cabinet. Slide the lock to release, and remove
the waste toner box.
2) Turn the drum cover securing locks (2) to release, and then
raise the drum positioning cover.
3) While pressing the lever, pull out the developing unit to
remove.
4) Open the cover to remove.
5) Loading developer to the developing units.
Be sure to shake the bag of developer thoroughly before pour-
ing into the developing unit.
When pouring the developer into the unit, use care to not get
developer in to the drive section.
1
2



