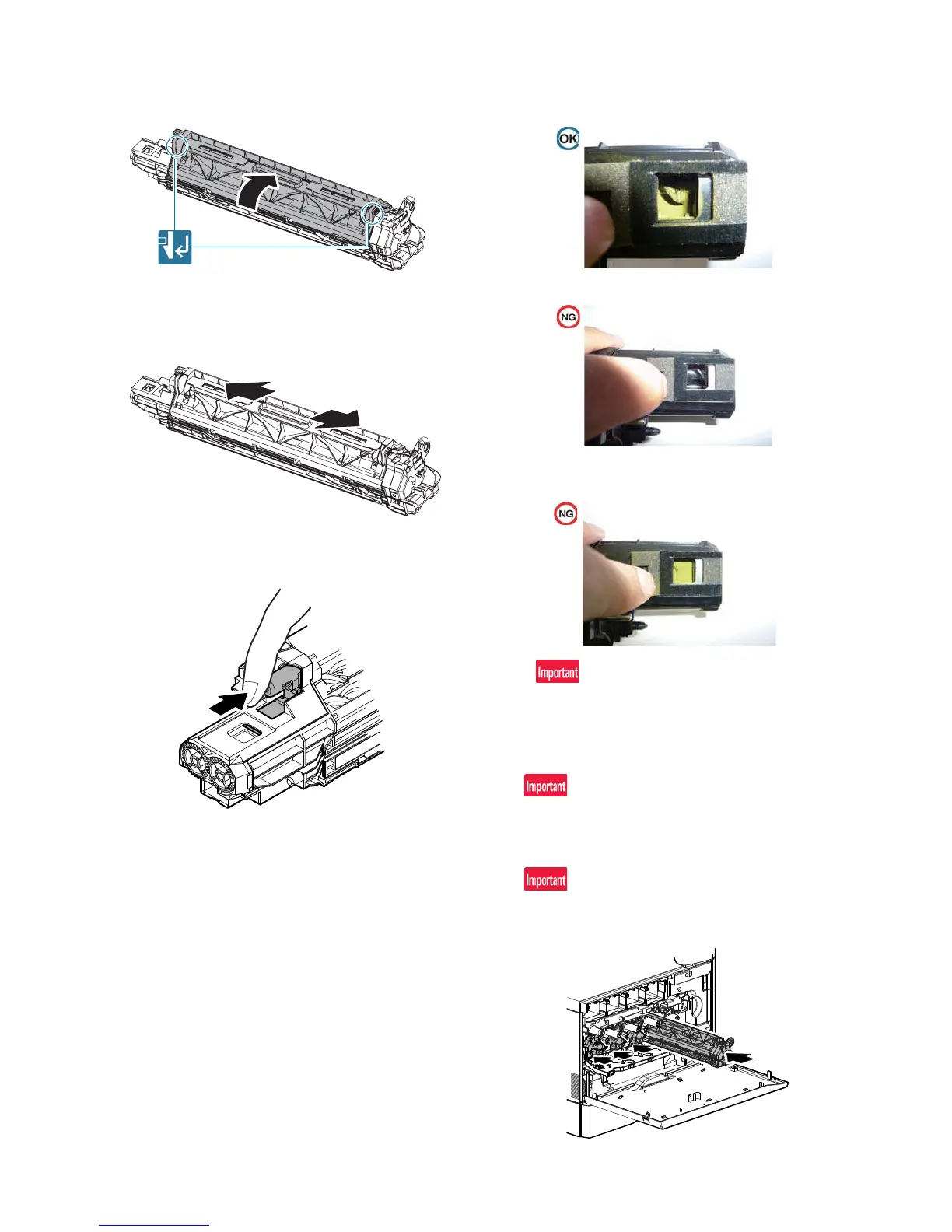

6) Attach the cover.
7) Shake the developing unit several times horizontally and
strongly.
8) Open the toner shutter of the developing unit and check to
confirm that there is proper amount of developer. If not, per-
form procedure 6) again.
• Check that there is proper amount of developer.
(The stirring screw can be partly seen.)
• There is no developer in the shutter position.
• There is too much developer.
(The stirring screw cannot be seen.)
Be sure to keep the developing unit level while supplying the
developer.
9) Insert the developing unit so as not to give a strong shock to
the main unit gently.
Slide the developing unit horizontally into the machine, in the
direction of the arrow, until developing unit locks into. place.
Do not push the unit diagonally, as contact with the drum may
occur causing damage.
When removing or installing the developing unit, put your hand
from below the unit and slide it in parallel along the guide.
At that time, be careful not to touch the roller surface.
