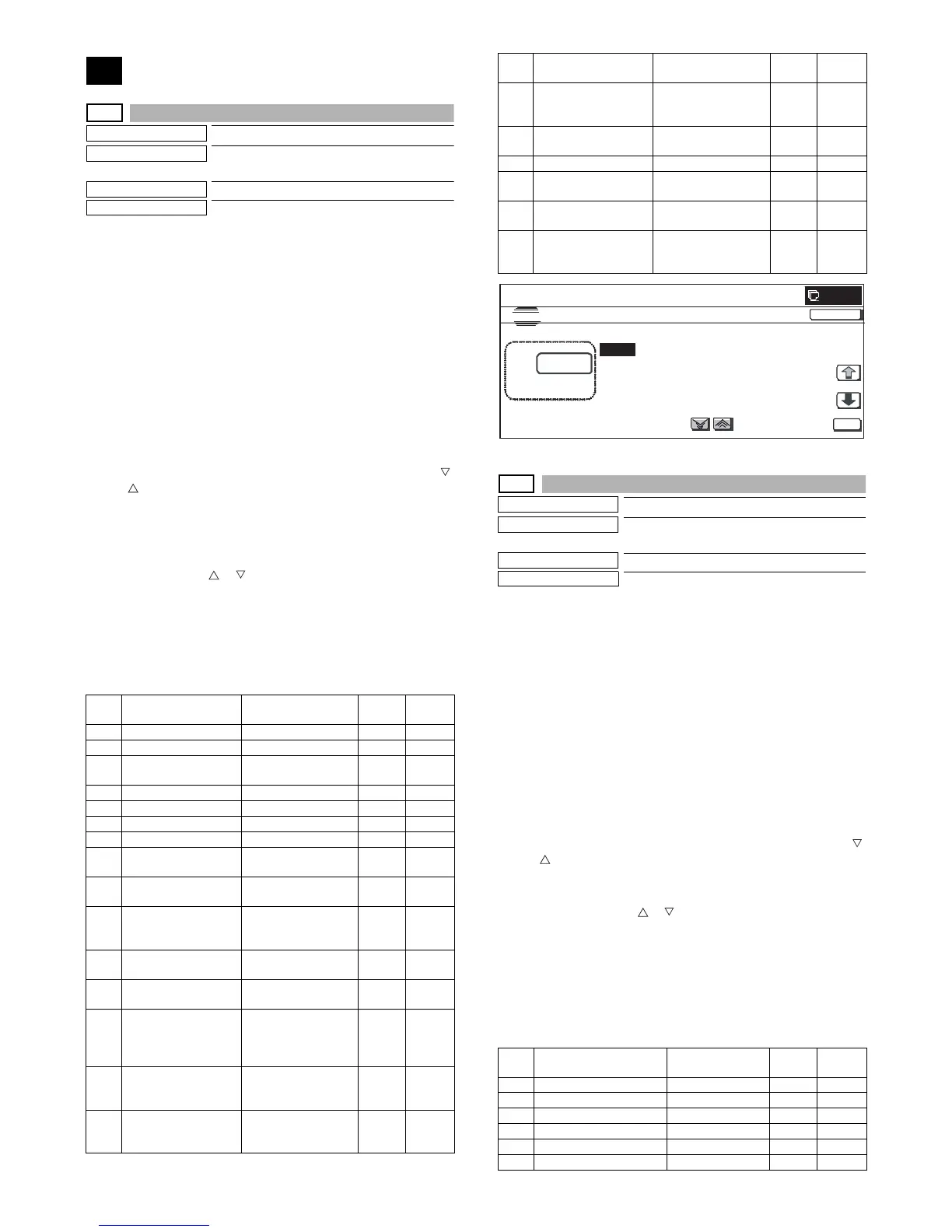

MX3500N SIMULATION 7 – 71
46
46-1
Purpose
Adjustment
Function (Purpose)
Used to set the default exposure (color
copy) for every document mode.
Section
Scanner
Item
Adjustment
Operation/Procedure
1) Select the set item with [↑] and [↓] buttons.
The highlighted set value is switched and the value is dis-
played in the setting area.
* If there is any item over [↑], an active display is made and
item is shifted.
If there is no item over [↑], the display grays out and the
operation is invalid.
If there is any item under [↓], an active display is made and
item is shifted.
If there is no item over [↓], the display grays out and the
operation is invalid.
2) Enter the set value with 10-key.
* Press [C] key to clear the entered values.
* The set values can be collectively changed by pressing [ ]
[ ] buttons.
When the set value is not the upper limit value (lower limit
value), the data of each item is increased (decreased) by 1.
3) When [OK] button is pressed, the currently entered data are
saved to EEPROM and RAM.
* When [↑], [↓], [ ], [ ] button, [COLOR], or [BLACK] key is
pressed, the data are saved to EEPROM and RAM.
* When [CLOSE] button is pressed, the display is shifted to the
copy basic screen of simulation.
* Copying can be performed also by pressing [COLOR]/[BLACK]
key.
<Set range and default value of each setup>
46-2
Purpose
Adjustment
Function (Purpose)
Used to adjust the exposure in BLACK
copy.
Section
Scanner
Item
Adjustment
Operation/Procedure
1) Select the set item with [↑] and [↓] buttons.
The highlighted set value is switched and the value is dis-
played in the setting area.
* If there is any item over [↑], an active display is made and
item is shifted.
If there is no item over [↑], the display grays out and the
operation is invalid.
If there is any item under [↓], an active display is made and
item is shifted.
If there is no item over [↓], the display grays out and the
operation is invalid.
2) Enter the set value with 10-key.
* Press [C] key to clear the entered values.
* The set values can be collectively changed by pressing [ ]
[ ] buttons.
When the set value is not the upper limit value (lower limit
value), the data of each item is increased (decreased) by 1.
3) When [OK], [↑], [↓], [ ], [ ] button, [COLOR], or [BLACK] key
is pressed, the current entered value is saved to EEPROM and
RAM.
* When [CLOSE] button is pressed, the display is shifted to the
copy basic screen of simulation.
* Copying can be performed also by pressing [COLOR]/[BLACK]
key.
<Set range and default value of each setup>
Item Display Description
Set
range
Default
value
A AUTO Auto 1 to 99 50
B TEXT Text 1 to 99 50
C TEXT/PRINTED
Text/Printed Photo 1 to 99 50
D TEXT/PHOTO Text/Photo 1 to 99 50
E PRINTED PHOTO Printed photo 1 to 99 50
F PHOTOGRAPH Photograph 1 to 99 50
G MAP Map 1 to 99 50
H LIGHT Light density
document
1 to 99 50
I TEXT (COPY TO
COPY)
Text (Copy
document)
1 to 99 50
J TEXT/PRINTED
PHOTO (COPY TO
COPY)
Text/Print (Copy
document)
1 to 99 50
K PRINTED PHOTO
(COPY TO COPY)
Printed photo (Coy
document)
1 to 99 50
L TEXT (COLOR TONE
ENHANCEMENT)
Text (Color tone
enhancement)
1 to 99 50
M TEXT/PRINTED
PHOTO (COLOR
TONE
ENHANCEMENT)
Text/Print (Color tone
enhancement)
1 to 99 50
N TEXT/PHOTO
(COLOR TONE
ENHANCEMENT)
Text/Photograph
(Color tone
enhancement)
1 to 99 50
O PRINTED PHOTO
(COLOR TONE
ENHANCEMENT)
Printed Photo (Color
enhancement)
1 to 99 50
P PHOTOGRAPH
(COLOR TONE
ENHANCEMENT)
Photograph(Color
tone enhancement)
1 to 99 50
Q MAP (COLOR TONE
ENHANCEMENT)
Map (Color tone
enhancement)
1 to 99 50
R SINGLE COLOR Single color 1 to 99 50
SSINGLE COLOR
(COPY TO COPY)
Single color (Copy
document)
1 to 99 50
T TWO COLOR 2-color (red/black)
copy
1 to 99 50
U TWO COLOR (COPY
TO COPY)
2-color (red/black)
copy (Copy
document)
1 to 99 50
Item Display Content
Set
range
Default
value
A AUTO1 Auto1 1 to 99 50
B AUTO2 Auto2 1 to 99 50
C TEXT Text 1 to 99 50
D TEXT/PRINTED PHOTO Text/Printed Photo 1 to 99 50
E TEXT/PHOTO Text/Photo 1 to 99 50
F PRINTED PHOTO Printed Photo 1 to 99 50
Item Display Description
Set
range
Default
value
