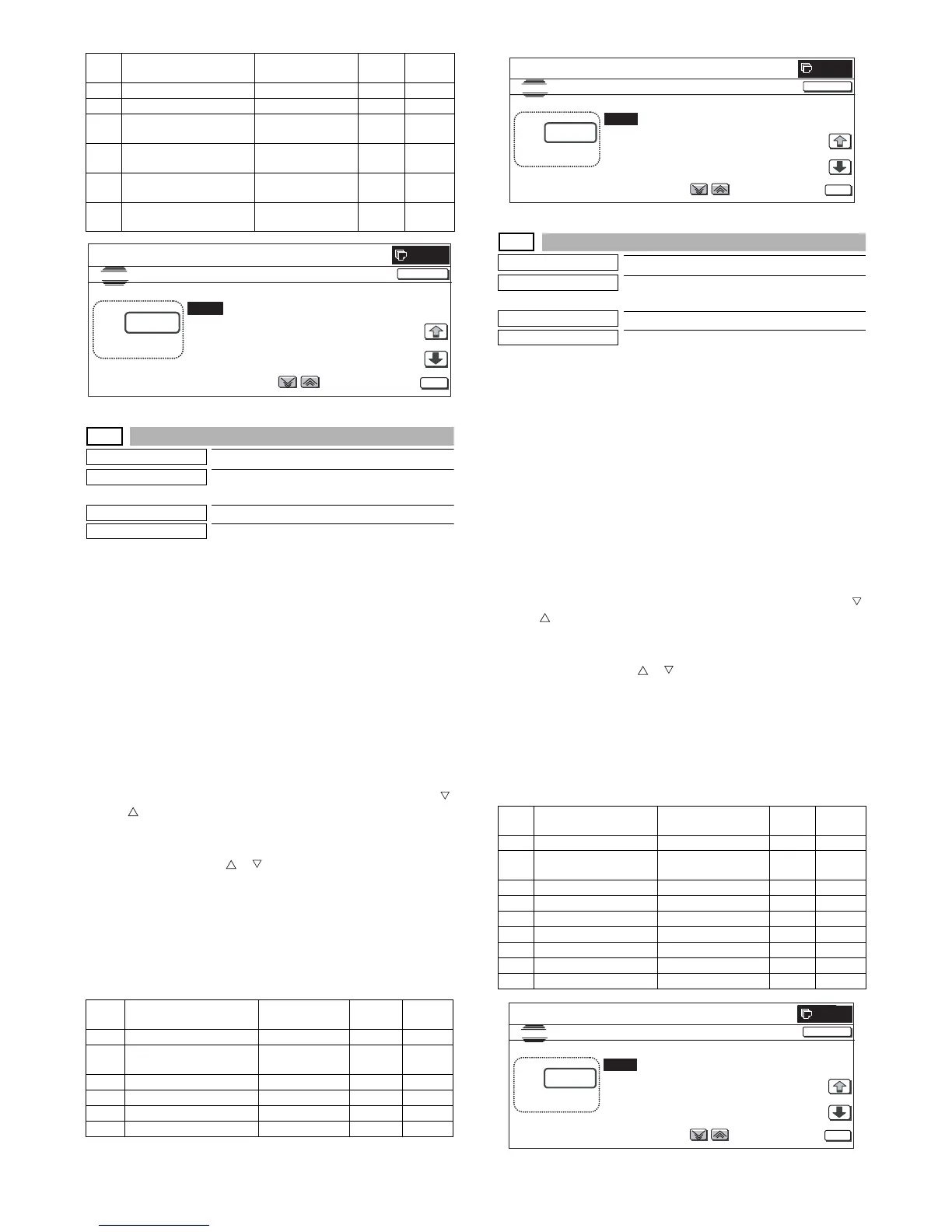

MX3500N SIMULATION 7 – 72
46-4
Purpose
Adjustment
Function (Purpose)
Used to adjust the exposure of the color
scanner.
Section
Scanner
Item
Adjustment
Operation/Procedure
1) Select the set item with [↑] and [↓] buttons.
The highlighted set value is switched and the value is dis-
played in the setting area.
* If there is any item over [↑], an active display is made and
item is shifted.
If there is no item over [↑], the display grays out and the
operation is invalid.
If there is any item under [↓], an active display is made and
item is shifted.
If there is no item over [↓], the display grays out and the
operation is invalid.
2) Enter the set value with 10-key.
* Press [C] key to clear the entered values.
* The set values can be collectively changed by pressing [ ]
[ ] buttons.
When the set value is not the upper limit value (lower limit
value), the data of each item is increased (decreased) by 1.
3) When [OK], [↑], [↓], [ ], [ ] button, [COLOR], or [BLACK] key
is pressed, the current entered value is saved to EEPROM and
RAM.
* When [CLOSE] button is pressed, the display is shifted to the
copy basic screen of simulation.
* Copying can be performed also by pressing [COLOR]/[BLACK]
key.
<Set range and default value of each setup>
46-5
Purpose
Adjustment
Function (Purpose)
Used to adjust the exposure of the black
scanner.
Section
Scanner
Item
Adjustment
Operation/Procedure
1) Select the set item with [↑] and [↓] buttons.
The highlighted set value is switched and the value is dis-
played in the setting area.
* If there is any item over [↑], an active display is made and
item is shifted.
If there is no item over [↑], the display grays out and the
operation is invalid.
If there is any item under [↓], an active display is made and
item is shifted.
If there is no item over [↓], the display grays out and the
operation is invalid.
2) Enter the set value with 10-key.
* Press [C] key to clear the entered values.
* The set values can be collectively changed by pressing [ ]
[ ] buttons.
When the set value is not the upper limit value (lower limit
value), the data of each item is increased (decreased) by 1.
3) When [OK], [↑], [↓], [ ], [ ] button, [COLOR], or [BLACK] key
is pressed, the current entered value is saved to EEPROM and
RAM.
* When [CLOSE] button is pressed, the display is shifted to the
copy basic screen of simulation.
* Copying can be performed also by pressing [COLOR]/[BLACK]
key.
<Set range and default value of each setup>
G PHOTOGRAPH Photograph 1 to 99 50
HMAP Map 1 to 99 50
I TEXT (COPY TO COPY) Text (Copy
document)
1 to 99 50
J TEXT/PRINTED PHOTO
(COPY TO COPY)
Text/Printed Photo
(Copy document)
1 to 99 50
K PRINTED PHOTO
(COPY TO COPY)
Printed Photo
(Copy document)
1 to 99 50
L LIGHT Light density
document
1 to 99 50
Item Display Content
Set
range
Default
value
A TEXT Text 1 to 99 50
B TEXT/PRINTED PHOTO Text/Printed
1 to 99 50
C TEXT/PHOTO Text/Photo 1 to 99 50
D PRINTED PHOTO Printed Photo 1 to 99 50
E PHOTOGRAPH Photograph 1 to 99 50
FMAP Map 1 to 99 50
Item Display Content
Set
range
Default
value
CLOSE
A
:
A㧦 45
B㧦 50
C㧦 50
D㧦 50
㧧 AUTO1
㧧 AUTO2
㧧 TEXT
㧧 TEXT/PRINTED PHOTO
SIMULATION  NO.46 㧙 02
EXPOSURE ADJUSTMENT(B/W)[COPY]
45
㨇 1 㨪 99㨉
OK
TEST
CLOSE
0
Item Display Content
Set
range
Default
value
A AUTO TEXT Auto text 1 to 99 50
B AUTO TEXT/PRINT
Auto text/Print Photo 1 to 99 50
C AUTO TEXT/PHOTO Auto text/Photo 1 to 99 50
D TEXT Text 1 to 99 50
E TEXT/PRINT PHOTO Text/Print Photo 1 to 99 50
F TEXT/PHOTO Text/Photo 1 to 99 50
G PRINTED PHOTO Printed Photo 1 to 99 50
H PHOTOGRAPH Photograph 1 to 99 50
I MAP Map 1 to 99 50
CLOSE
A
:
A㧦 45
B㧦 50
C㧦 50
D㧦 50
㧧 TEXT
㧧 EXT/PRINTED PHOTO
㧧 TEXT/PHOTO
㧧 PTINTED PHOTO
SIMULATION  NO.46 㧙 04
EXPOSURE ADJUSTMENT(COLOR)[ SCANNER]
45
㨇 1 㨪 99㨉
OK
TEST
CLOSE
0
CLOSE
A
:
A㧦 45
B㧦 50
C㧦 50
D㧦 50
㧧 AUTO TEXT
㧧 AUTO  EXT/PRINTED
㧧 AUTO TEXT/PHOTO
㧧 TEXT
SIMULATION  NO.46 㧙 05
EXPOSURE ADJUSTMENT(B/W)[ S CANNER]
45
㨇 1 㨪 99㨉
OK
TEST
CLOSE
0
