13

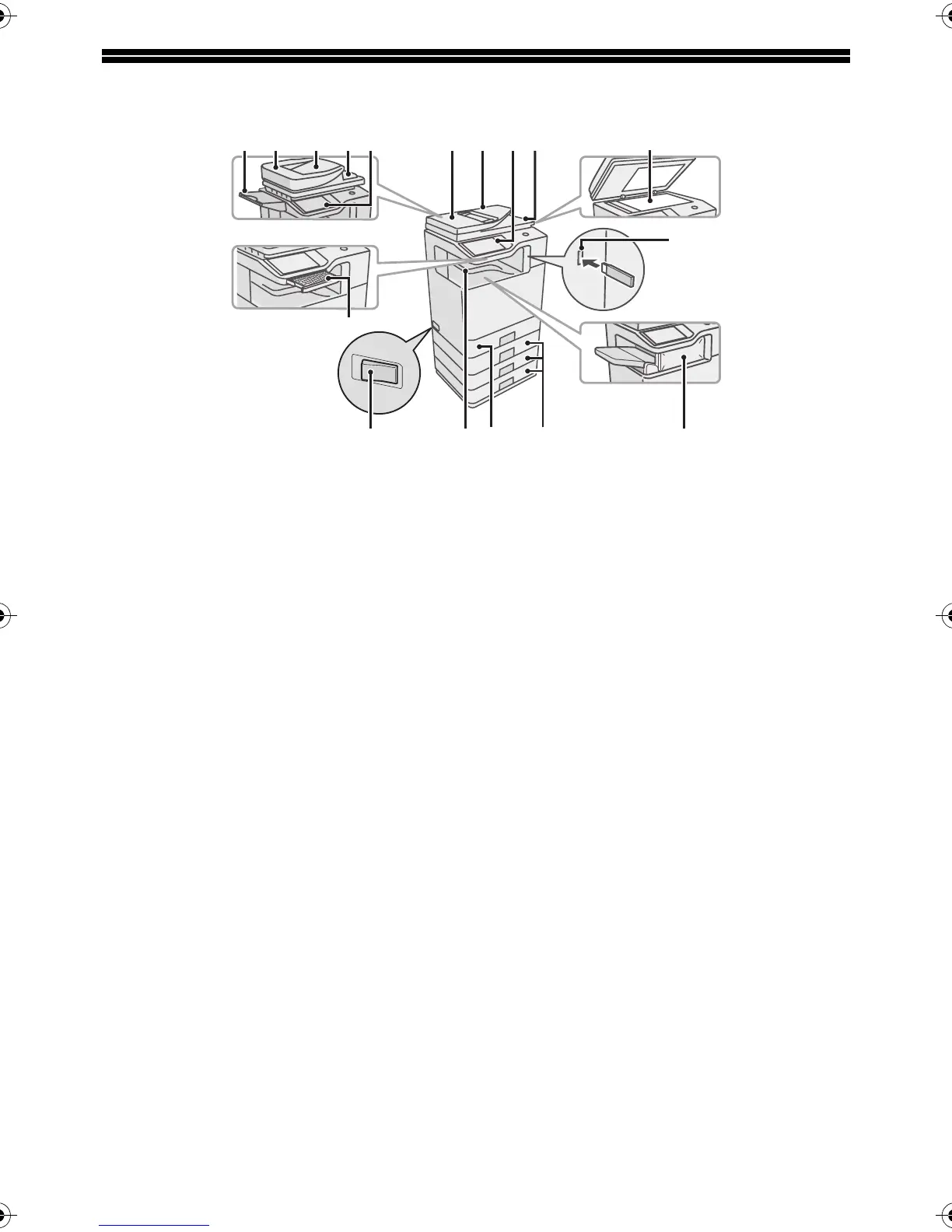

PART NAMES AND FUNCTIONS
(1) Automatic document feeder
This automatically feeds and scans
multiple originals. Both sides of
2-sided originals can be scanned at
once.
(2) Document feeder tray
Place the originals in this tray when
using the automatic document
feeder.
(3) Operation panel
(4) Original exit tray
Originals are delivered to this tray
after scanning.
(5) Document glass
This is used to scan books and
other originals that cannot be
scanned using the automatic
document feeder.
(6) USB connector (type A)
Supports USB 2.0 (Hi-Speed).
This is used to connect a USB memory
or other USB device to the machine.
(7) Finisher*
This can be used to staple output.
(8) Tray 2/Tray 3/Tray 4 (500 sheet
paper feed unit is installed)*
This holds paper. Up to 500 sheets
(21 lbs. (80 g/m
2
)) of paper can be
loaded.
(9) Tray 1
Up to 500 sheets of paper (21 lbs.
(80 g/m
2
)) can be loaded in each
tray.
(10) Output tray (center tray)
Copy jobs and print jobs are
delivered to this tray.
(When a finisher is installed, the
output tray (center tray) cannot be
used.)
(11) Main power switch
This is used to power on the
machine.
When using the fax or Internet fax
functions, keep this switch in the
"on" position.
(12) Keyboard (MX-B402SC only)
This is a keyboard that is
incorporated into the machine.
When not used, it can be stored
under the operation.
(13) Original exit tray 1
Originals are delivered to this tray
after scanning.
(14) Original exit tray 2
If originals are not delivered to
original exit tray 1 after scanning,
they are delivered to this tray.
(1)(14) (1) (2)(13) (3) (2)
(3)
(5)
(9)
(12)
(8)
(4)
(11) (10)
(7)
(6)
mxb402_us_sta.fm Page 13 Monday, June 14, 2010 3:46 PM
