SHARP

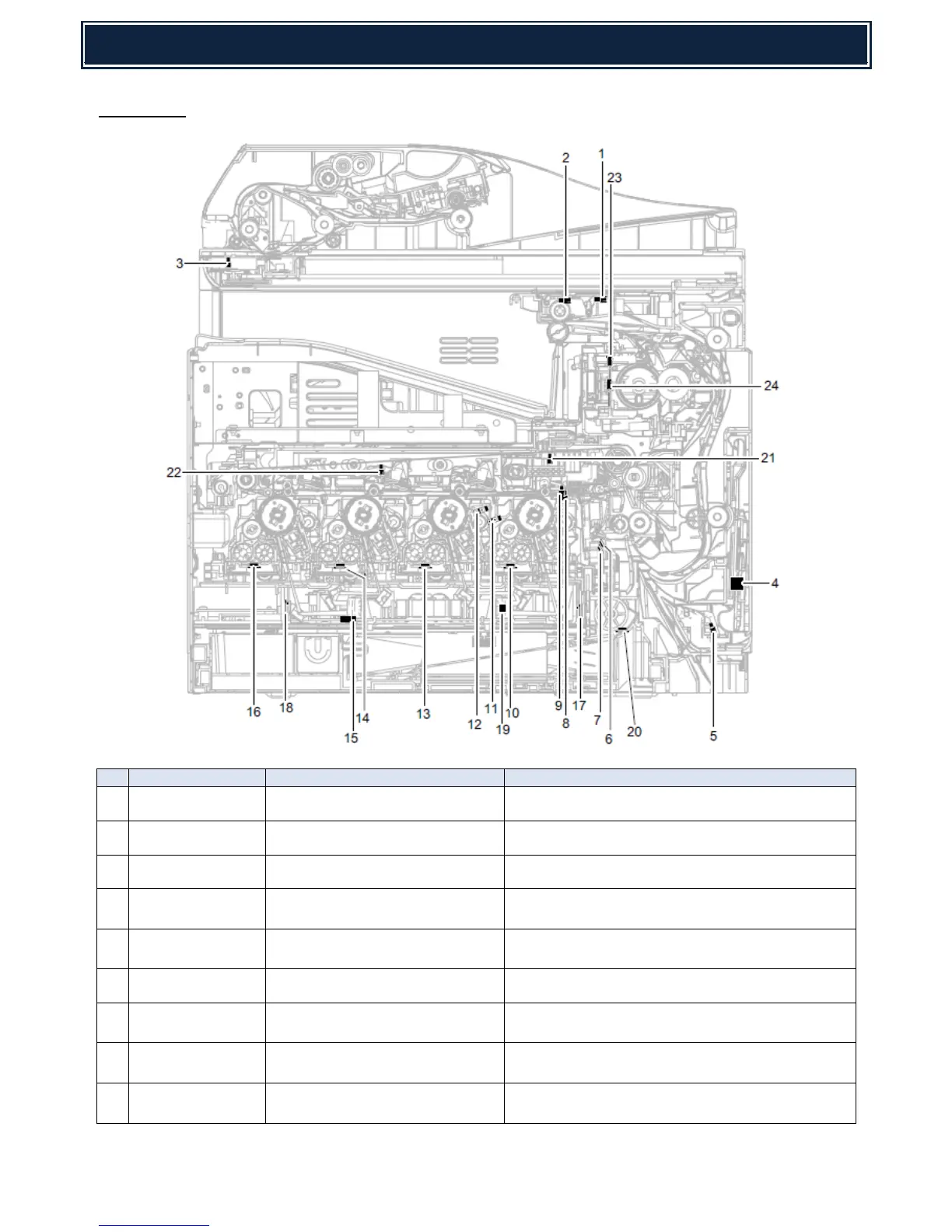

SENSOR LOCATION
57
MAIN UNIT:
No.
Signal Name
Name
Function/Operation
1
POD1
Fusing paper exit detector
Detects paper pass in the fusing section.
2
TFD2
Paper exit full detector
Detects paper full in the paper exit tray.
3
MHPS
Scanner home position sensor
Detects the scanner home position.
4
HUD_M/TH_M
Temperature/humidity sensor
Detects the temperature and the humidity. (For the
process control)
5
MPED
Paper empty detector
(Manual paper feed tray)
Detects paper empty. (Manual paper feed tray)
6
PPD2
Document transport sensor 2
Detects paper pass in front of the resist roller.
7
CPED1
Paper empty sensor
(Paper feed tray 1)
Detects paper empty. (Paper feed tray 1)
8
REGS_F/ PCS_F
Registration sensor F
(Image density sensor)
Detects colour shift. (F side) /
Detects the CMY toner patch density.
9
REGS_R
Registration sensor R
(Image density sensor)
Detects the K toner patch density. (R side)
