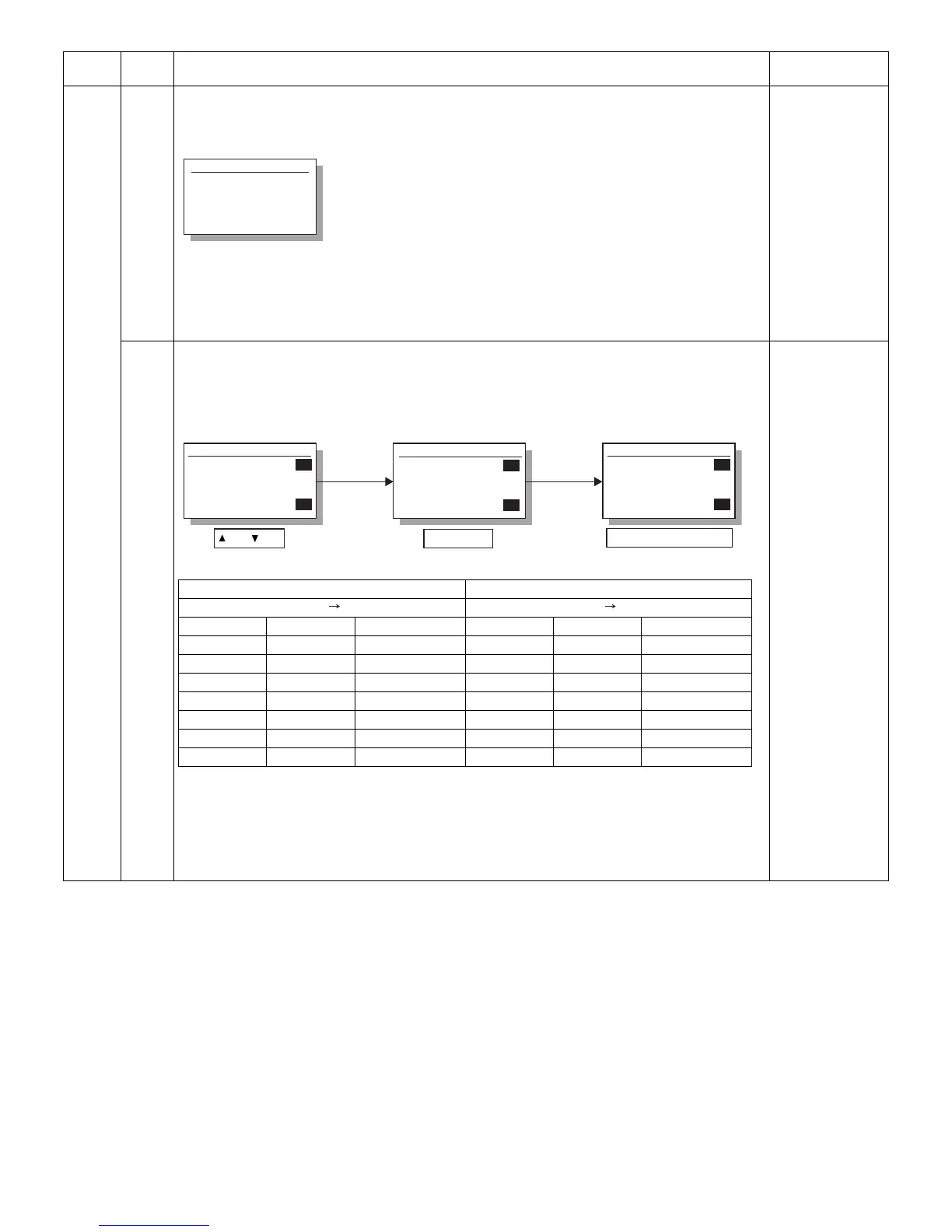

MX-M200D SIMULATIONS 7-23
26 39 Memory capacity check
Used to check the capacity of the image memory (SDRAM) installed to the MCU PWB and the capacity of
the IMC compression memory.
There are two kinds of the displayed image memory capacity: 16MB and 32MB.
The standard capacity of the IMC compression memory is 16B.
* It is not displayed when IMC is not installed.
[CA] key: Exits the simulation mode.
[INTERRUPT] key: Shifts to the sub code input window.
42 Transfer ON/OFF timing control setting
Used to set the ON/OF timing of the transfer charger (TC) individually. Select an item to be changed with the
arrow keys, and change the set value to a desired value, and press [OK] key or [START] key. The entered
value is saved to the EEPROM and the machine shifts to the sub code input window.
Variation in the adjustment value
* Setting range is 1 - 99.
When the set value is increased by 1, the timing is increased by 2ms.
* The default (38) of transfer ON timing means 320ms from PS release.
The default (50) of the transfer OFF timing means304ms from P-IN OFF.
[CA] key: Exits the simulation mode.
[INTERRUPT] key: Shifts to the sub code input window.
Default:
38 (TC ON)
50 (TC OFF)
Main
code
Sub
code
Contents Remark
Sim26-39 MEMORY CHK
MCU : 32Mbyte
IMC : 16Mbyte
(Item selection)
Sim26-42 TC TIMING Sim26-42 TC TIMING Sim26-42 TC TIMING
2
1:TC(ON)
2:TC(OFF)
[ 1- 99]
38
50
50
1:TC(ON)
2:TC(OFF)
[ 1- 99]
38
50
60
1:TC(ON)
2:TC(OFF)
[ 1- 99]
60
50
60
(Value input) (Settlement)
[OK] key or [START] Key
Numeric Key
Key, Key
1:TC(ON) 2:TC(OFF)
PS release TC ON PIN OFF TC OFF
Set value Time (ms) Difference (ms) Set value Time (ms) Difference (ms)
99 442 +122 99 402 +98
• • • • • • • • • • • • • • • • • •
50 344 +24 51 306 +2
• • • • • • • • • 50 304 0
38 320 0 49 302 -2
• • • • • • • • • • • • • • • • • •
1 246 -74 1 206 -98
